Summary of Contents for Superlux PRA528

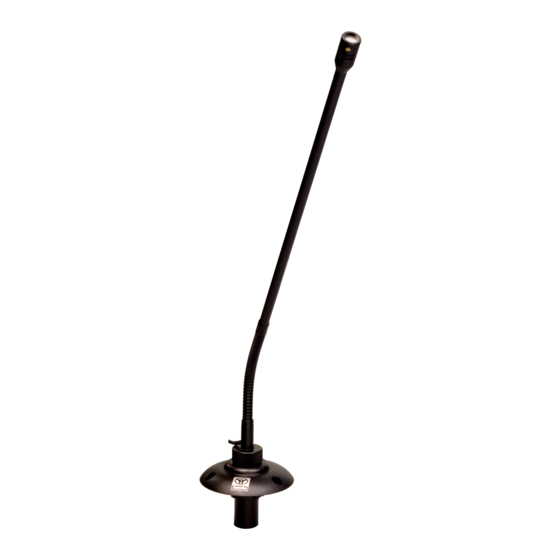

- Page 1 PRA528 GOOSENECK CONDENSER MICROPHONE Contact Marketing and sales Goang-Fann Co., Ltd. +886-2-26931323 sales@superlux.com.tw support@superlux.com.tw Manufacturing & logistics Superlux Enterprise Development ( Shanghai ) Co., Ltd. English...
- Page 2 PRA528 GOOSENECK CONDENSER MICROPHONE DESCRIPTION The PRA-528B/C series are specially designed back electret condenser microphones for conferences. They have the features needed for conferences such as tailored frequency response, excellent cardioid polar pattern, and high gain before feedback. Each member...
-
Page 3: Specifications
PRA528 FREQUENCY RESPONSE (CARDIOID) PRA528 SPECIFICATIONS Type Back electret, Ø9.7mm（Ø0.38"） Polar Pattern Cardioid Frequency Response 50-16,000Hz Sensitivity -39 dBV/Pa（11.2 mV/Pa） Output Impedance 200 Ω S/N Ratio 68 dB Min. Load Impedance 1,000 Ω Equivalent Output Noise 26 dB Max. SPL... - Page 4 DIMENSIONS PRA528BM PRA528BL...
- Page 5 PRA528CM PRA528CL Unit:mm / in.
- Page 6 PRA528B ASSEMBLING DIAGRAM HM22 HM23 SHIELD RED(+) BLACK (-) BLAC K (-) BLAC K (- ) RED(+ ) RED(+) SHIELD SHIELD HM24 HM24C...
- Page 7 PRA528C ASSEMBLING DIAGRAM MIC. MIC. 3M Cable 3M Cable Lockpin Linker GT4B Screw Flange For 5/8" Thread Preamplifier HM22 Linking Mode 1 Linking Mode 2 Step.1 Take down bolt and cap. Step.2 Re-lock bolt and cap. Linking Point MIC. 3M Cable Linker GT4B Screw Flange HM22...
-
Page 8: Knowing Your Microphone
ASSEMBLE DIMENSIONS Ø74mm Ø20mm Ø20mm Ø50mm Ø74mm HM22 HM23 Unit:mm KNOWING YOUR MICROPHONE Type of transducer Condenser With an extremely light weight diaphragm, it is very sensitive to sound. Very small versions are available for hidden applications. High performance condenser microphones are regarded as standard equipment in recording studios for extreme detail capturing. -
Page 9: Supplied Accessories
SUPPLIED ACCESSORIES S21F HM22 HM23 Windscreen Mounting Shock Mount Screw Foam Flange Flange PRA528B S21F HM22 GT4B Windscreen Mounting Screw Flange Screw Foam Flange For 5/8" Thread PRA528C OPTINAL ACCESSORIES S22F DS002 GT6F Windscreen Gooseneck XLR3F Foam Mic Base Flange HM24 HM24C XLR3F Flush Socket... -
Page 10: Limited Warranty
Enterprise, request by distributor without authorized, or the serial number sticker on Superlux product is unidentified, modified, or removed. All repair of Superlux products can only accept from re- pair centre, distributor or agent which authorized by Superlux. Un- authorized repair, maintenance and modification will not receive relevant warranty and will be excluded in the warranty.
