Hanging the Fan

REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:

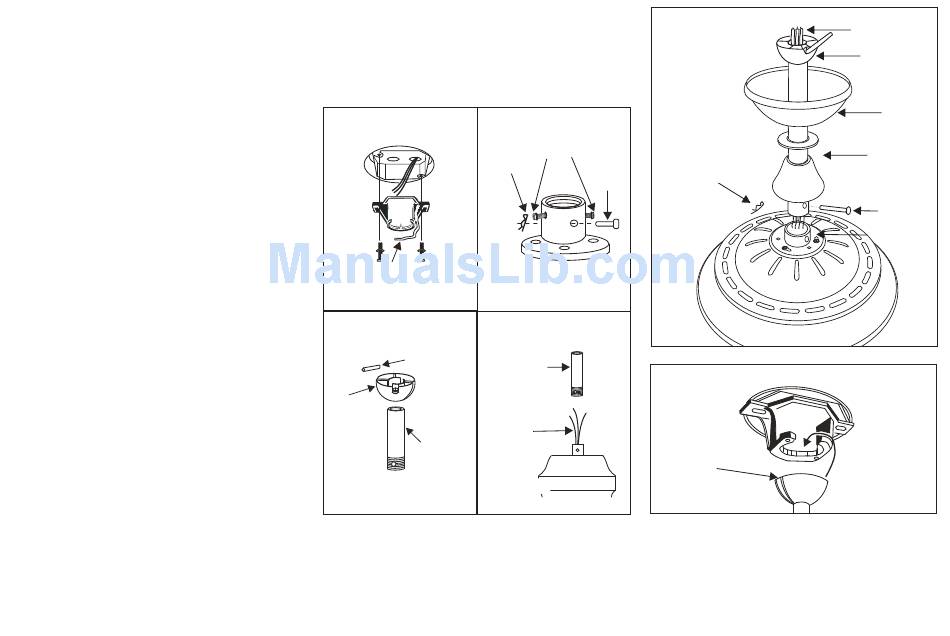

1. Secure the hanger bracket to the ceiling
outlet box with the screws and washers
provided with your outlet box. (Figure 5)
2. Remove the hitch pin and lock pin from
the downrod assembly. Loosen the two set
screws from the motor assembly. (Figure
6)
3. Remove hanger ball from downrod assembly
by loosening set screw, removing the cross pin,
and sliding ball off rod. (Figure 7)
4. Carefully feed fan wires up through the
downrod. (Figure 8) Thread the rod into the
coupling. Next, line up holes and replace lock
pin and hitch pin. Tighten set screws.
5. Slip coupling cover, canopy cover and
canopy onto downrod. (Figure 9) Carefully
reinstall hanger ball onto tod being sure that
cross pin is in correct position, set screws are
tighten and wires are not twisted.
6. Now lift motor assembly into position and place
hanger ball into hanger bracket. Rotate until the
check groove drops into the registration slot and
seats firmly. (Figure 10) Downrod should not rotate
if this is done correctly.
Outlet box
Hitch
pin
Hanger bracket
Figure 6
Figure 5
Cross pin
Hanger
ball
Downrod
Figure 7 Figure 8
Figure 9
Set
screws
Lock
Split Pin
pin
Downrod
Supply
wires
Figure 10
Lead Wires
Ball/Downrod
Assembly
Registration
slot
Canopy
Collar Cover
Pivot Pin
Motor Collar
4
