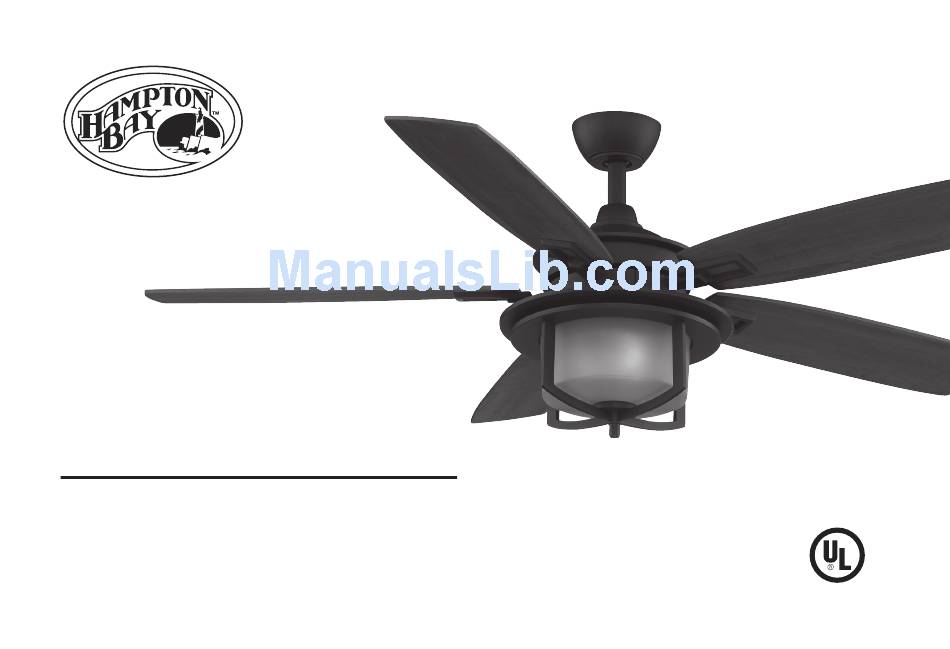

- Page 1 321-977 Devereaux II Ceiling Fan Owner’s Manual Devereaux II Ventilador de Techo de 1,32 Manual del Propietario...
- Page 2 Devereaux II by Hampton Bay ®...
-
Page 3: Table Of Contents
52” Devereaux II Thank you for purchasing our ceiling fan. This product has been manufactured with the highest standards of safety and quality. Ceiling Fan by Hampton Bay Date Purchased Table of Contents Store Purchased Safety Rules ....1 321-977 Model No. -
Page 4: Safety Rules
Safety Rules - Read and Save These Instructions To reduce the risk of electric shock, insure electricity has been turned off After making electrical connections, spliced conductors should be turned at the circuit breaker or fuse box before beginning. upward and pushed carefully up into outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding All wiring must be in accordance with the National Electrical Code conductor on one side of the outlet box and ungrounded conductor on the... -
Page 5: Unpacking Your Fan
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items: Set of blades (5) Mounting plate Blade Attachment Hardware (16 Screws with Fiber Washers) Canopy assembly Light kit assembly Ball/downrod assembly Glass shade Electrical Hardware Coupling cover Glass frame (3 Plastic Wire Nuts) -
Page 6: Installing Your Fan
Installing Your Fan Provide Strong Support Tools Required Figures 1~3 are examples of different ways to mount the outlet box. Phillips screwdriver, straight slot screwdriver, step ladder and wire cutters. Recessed Ceiling Outlet Box Mounting Plate Mounting Options Figure 3 Outlet Box Note: You may need a longer downrod to If there isn't an existing UL listed mounting box,... -
Page 7: Hanging The Fan
Hanging the Fan Align the holes at the bottom of the downrod Motor Wires with the holes in the coupling on top of the motor housing (Figure 6). Carefully insert the Ball/Downrod REMEMBER to turn off the power. Follow the clevis pin through the holes in the collar and Pin in Locked Assembly... -
Page 8: Installing Fan To The Electrical Box
WARNING Installing Fan to UL Listed Outlet Box THE TAB IN THE RING MUST REST IN THE the Electrical Box GROOVE OF THE HANGER BALL AS FIGURE 8. FAILURE TO PROPERLY SEAT THE TAB IN THE GROOVE COULD CAUSE DAMAGE TO WIRING. WARNING 120V TO REDUCE THE RISK OF FIRE, ELECTRIC... -
Page 9: Making The Electrical Connections
Making the Electrical (Figure 11) Receiver to house supply wires electrical connections: Connect the black (hot) Connections Frequency Switch wire from the ceiling to the black wire marked "AC in L" from he receiver. Connect the white (neutral) wire from the ceiling to the white wire WARNING marked "AC in N"... - Page 10 WARNING WARNING SUPPLY CIRCUIT MAKE SURE THE TAB ON THE MOUNTING CHECK TO SEE THAT ALL CONNECTIONS ARE TIGHT, INCLUDING GROUND, AND THAT NO BRACKET PROPERLY SITS IN THE GROOVE IN BARE WIRE IS VISIBLE AT THE WIRE NUTS. THE HANGER BALL BEFORE ATTACHING THE Ground CANOPY TO THE BRACKET BY TURNING THE EXCEPT FOR THE GROUND WIRE.
-
Page 11: Attaching The Fan Blades
Attaching the Fan Blades Screws and Fiber Washers Attach blades to blade arms using three screws with fiber washers (Fig. 13). Start a screw into the blade arm, do not tighten. Repeat for the 2 remaining screws and washers. Tighten each screw securely starting with the center screw. -
Page 12: Attaching The Mounting Plate
Attaching the Mounting Blade Balancing Plate The following procedure should correct most fan Touching Ceiling wobble. Check after each step. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Check that all blade and blade bracket screws are secure. -
Page 13: Installing The Light Kit
Installing the Light Kit CAUTION Raise the glass frame up to the glass shade and BEFORE STARTING INSTALLATION, secure it to the light kit stem with the decorative DISCONNECT THE POWER BY TURNING OFF nut. (Fig. 18) THE CIRCUIT BREAKER OR REMOVING THE FUSE AT FUSE BOX. -
Page 14: Operating Your Transmitter
Operating Your Transmitter Installing the Battery: Restore power to the ceiling fan and test for proper operation. Install 12V MN21/A23 battery (included), to "HI, MED, LOW" buttons: prevent damage to transmitter, remove the battery These three buttons are used to set the fan if not used for long periods. - Page 15 Installing the Transmitter Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, Holder number of fans, etc. Remove the two plugs from the holder. Note The reverse switch is located on the top of motor that the plugs have unique tabs that allows housing.
-
Page 16: Care Of Your Fan
Care of Your Fan Troubleshooting PROBLEM SOLUTION Here are some suggestions to help you maintain your fan. Fan will not start Check main and branch circuit fuses or breakers. Because of the fan's natural movement, some Check line wire connections to the fan and switch wire connections in connections may become loose. -
Page 17: Specifications
Specifications FAN SIZE SPEED VOLTS AMPS WATTS N.W. G.W. C.F. 0.34 1748 11.25 kgs 12.75 kgs 52” MED. 0.49 3616 2.58’ (24.75 lbs) (28.05 lbs) 0.56 5420 HIGH These are approximate measures. They do not include Amps and Wattage used by the light kit. -
Page 18: Warranty Information
(lifetime warranty on motor) IMPORTANT NOTE: The Hampton Bay warrants the fan motor to be free from defects in workmanship and material present at time To ensure warranty service if ever of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser.
