Item # 1002 705 999, 1002 717 208, 1002 706 115
Model #91371, 91372, 91379

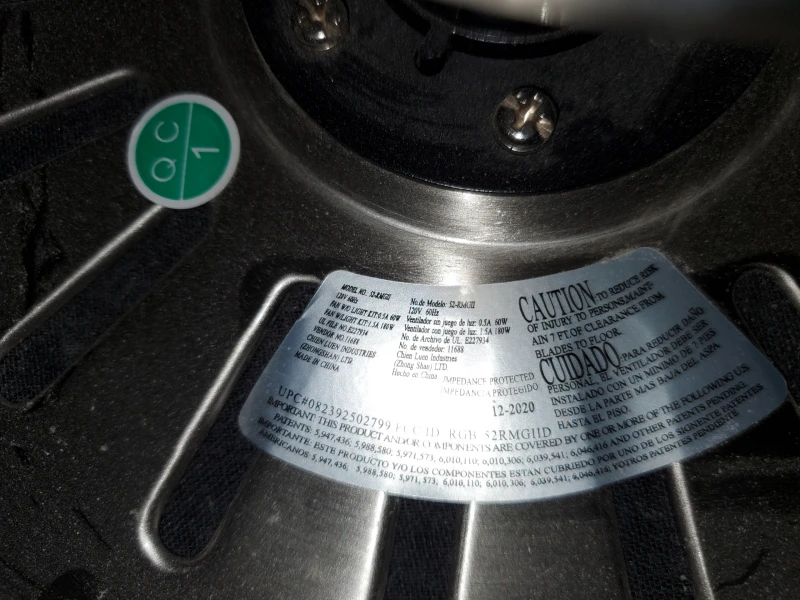

UL Model # 52-RMG
®
USE AND CARE GUIDE

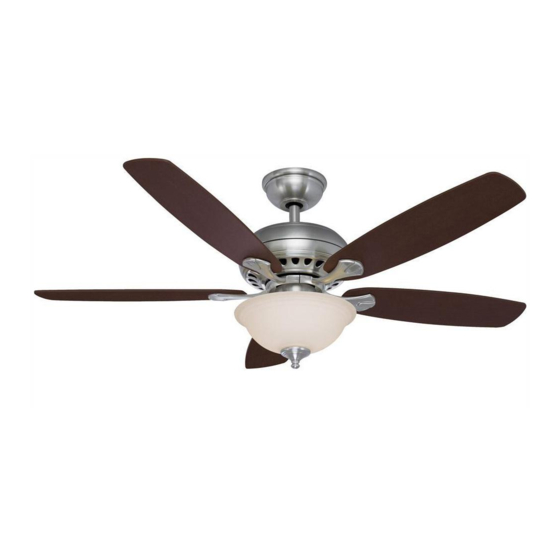

SOUTHWIND 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store call
Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
"Product Overview" section.
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY SOUTHWIND
Summary of Contents for HAMPTON BAY SOUTHWIND
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................15 Warranty ................3 Care and Cleaning ............. 16 Pre-Installation ..............3 Troubleshooting ..............16 Installation ................6 Safety Information To reduce the risk of electric shock, ensure the electricity has WARNING: To reduce the risk of personal injury, been turned off at the circuit breaker or fuse box before you do not bend the blade brackets (also referred to as... -
Page 3: Warranty
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Blade attachment hardware Extra plastic plug (to be used for fan without light kit) Plastic wire connector Extra blade bracket hardware (screw Hanger pin and lock washer) Locking pin Close-to-ceiling mount hardware...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Blade (inside canopy) Blade bracket (flange), screws Ball/downrod assembly pre-installed Canopy with canopy ring attached Glass bowl Fan-motor assembly Light bulbs, 9-Watt maximum Light kit fitter assembly Transmitter (battery included) Receiver IMPORTANT: This product and/or components are...
-
Page 6: Installation
Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain proper WARNING: To reduce the risk of fire, electric shock, blade clearance when installing on a steep, sloped or personal injury, mount the fan to an outlet box ceiling. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparation for mounting Routing the wires □ □ Remove the canopy ring (JJ) from the canopy (C) by turning the Route the wires exiting the top of the fan motor (D) and ring counter clockwise until it unlocks. through the canopy ring (K). - Page 8 Assembly - Close-To-Ceiling Mounting Preparation for close to ceiling Routing the wires mounting □ □ Remove the canopy ring (JJ) from the canopy (C) by turning Remove three of the six screws and lock washers (LL) the ring counter-clockwise until it unlocks. (every other one) securing the motor collar (P) to the top of □...
- Page 9 Assembly - Hanging the Fan Attaching the fan to the electrical Hanging the fan WARNING: The hook as shown is only to balance fan WARNING: To reduce the risk of fire, electric shock, while attaching wiring. Failure to hang as shown may or other personal injury, mount the fan to an outlet result in hook breaking, causing the fan to fall.
- Page 10 Assembly - Hanging the Fan (continued) Setting the code on the remote control NOTE: The frequencies on your receiver and hand unit have been preset at the factory. Before installing the receiver, make sure the dip switches on the receiver and hand unit are set to the same frequency.
- Page 11 Assembly - Hanging the Fan (continued) Wiring the receiver to the Making the electrical connection household wiring. NOTE: The frequencies on your receiver and transmitter have WARNING: To avoid possible electrical shock, turn the electricity off at the main fuse box before wiring. If you feel been preset at the factory.
- Page 12 Assembly - Hanging the Fan (continued) Close-to-Ceiling Mounting Mounting the fan - Standard WARNING: When using the standard ball/downrod mounting, the WARNING: Locking slots of ceiling canopy are provided only as an tab in the ring at the bottom of the mounting bracket must rest in aid to mounting.
- Page 13 Assembly - Attaching the Fan Blades Attaching the blades to the blade brackets □ Attach a blade (F) to a blade bracket (G) by inserting screws (AA) into the holes in the blade and through the blade bracket. Note that the rubber washers are pre-attached to the blade bracket.
- Page 14 Assembly - Assembling the Fan Without the Light Kit Installing the bulbs and attaching Assembling the fan without the the glass bowl light kit □ CAUTION: Do not over tighten the hex nut, overtightening the In order to use the fan without the light kit, remove the switch hex nut may cause the glass to break.
-
Page 15: Operation
Operating Your Fan and Remote Control Remote Control - Your fan is equipped with a remote control to operate the speed and lights of your new ceiling fan. For more information on how to install the remote control, see the remote control instruction along with the remote control components. -
Page 16: Care And Cleaning
Care and Cleaning WARNING: Make sure the power if off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove fan from ceiling. □... - Page 17 ® Questions, problems, missing parts? Before returning to the store call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
- Page 18 We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this remote control. AAA 1.5V battery Remote of the following U.S.
