Overview

The Mio Modero
The Mio Modero
rechargeable device. The Mio R-2 controls 6 different device modes, supports 3 macro functions, and is
capable of executing 219 functions. The Mio R-2 can transmit in 38 KHz IR, 455 KHz IR, 418 RF (1-
way) (FG147-418), 433 RF (1-way) (FG147-433), or 38 KHz and one of the RF frequencies.
Selecting a source device sends a command to the master and runs predetermined events associated with
that source. Selecting a macro will run predefined events, which might not be associated with sources
listed, then return the device to its previous mode.
You need KeypadBuilder to properly program this device. The application and documentation are
available from www.amx.com.
39
44
41
4
8
2
11
12
26

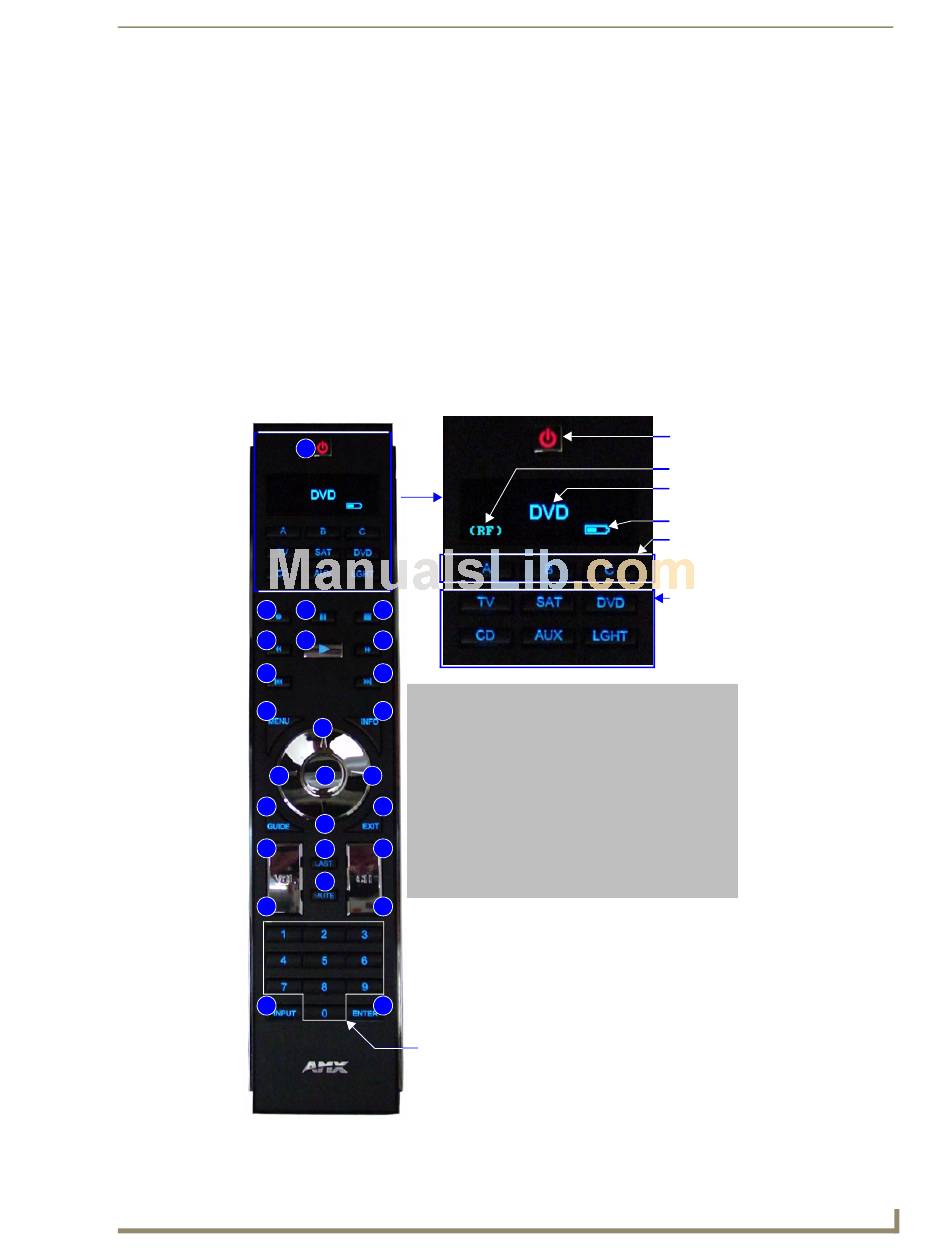

FIG. 1 The Mio R-2 Device
Mio Modero R-2
®
R-2
®
R-2 remote provides custom control features, contained in an elegant handheld
1
40
38
42 45
43
1 - Power
2 - Guide
5
6
3 - Exit
4 - Menu
5 - Information
10 9
6 - Move Up
3
7 - Move Down
7
8 - Move Left
13
15
9 - Move Right
16 10 - Select
14
28
Numeral Keypad
Power
Transmission Mode
Current Menu
Battery Meter
Custom Macro
Buttons
Custom Mode
Options
11 - Volume Up
12 - Volume Down
13 - Channel Up
14 - Channel Down
15 - Last Viewed
16 - Mute
26 - Input
28 - Enter
38 - Stop
39 - Record
