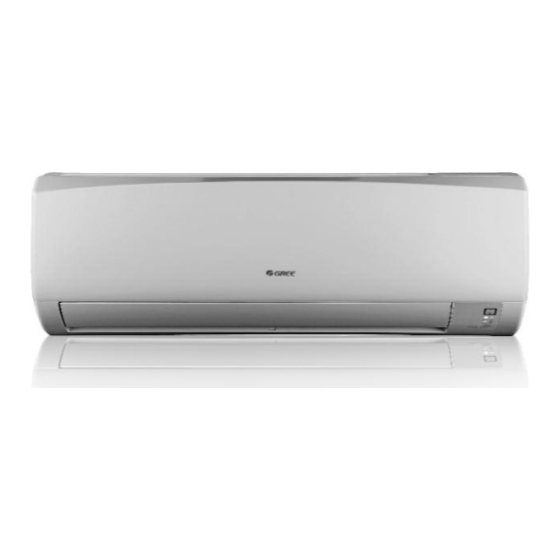

Gree GWH09KF-A3DNB1A Installation Manual
Ductless inverter heat pump
Hide thumbs
Also See for GWH09KF-A3DNB1A:
- Quick start manual (2 pages) ,
- Installation, service & troubleshooting (130 pages)
Related Manuals for Gree GWH09KF-A3DNB1A
Summary of Contents for Gree GWH09KF-A3DNB1A
-
Page 1: Heat Pump

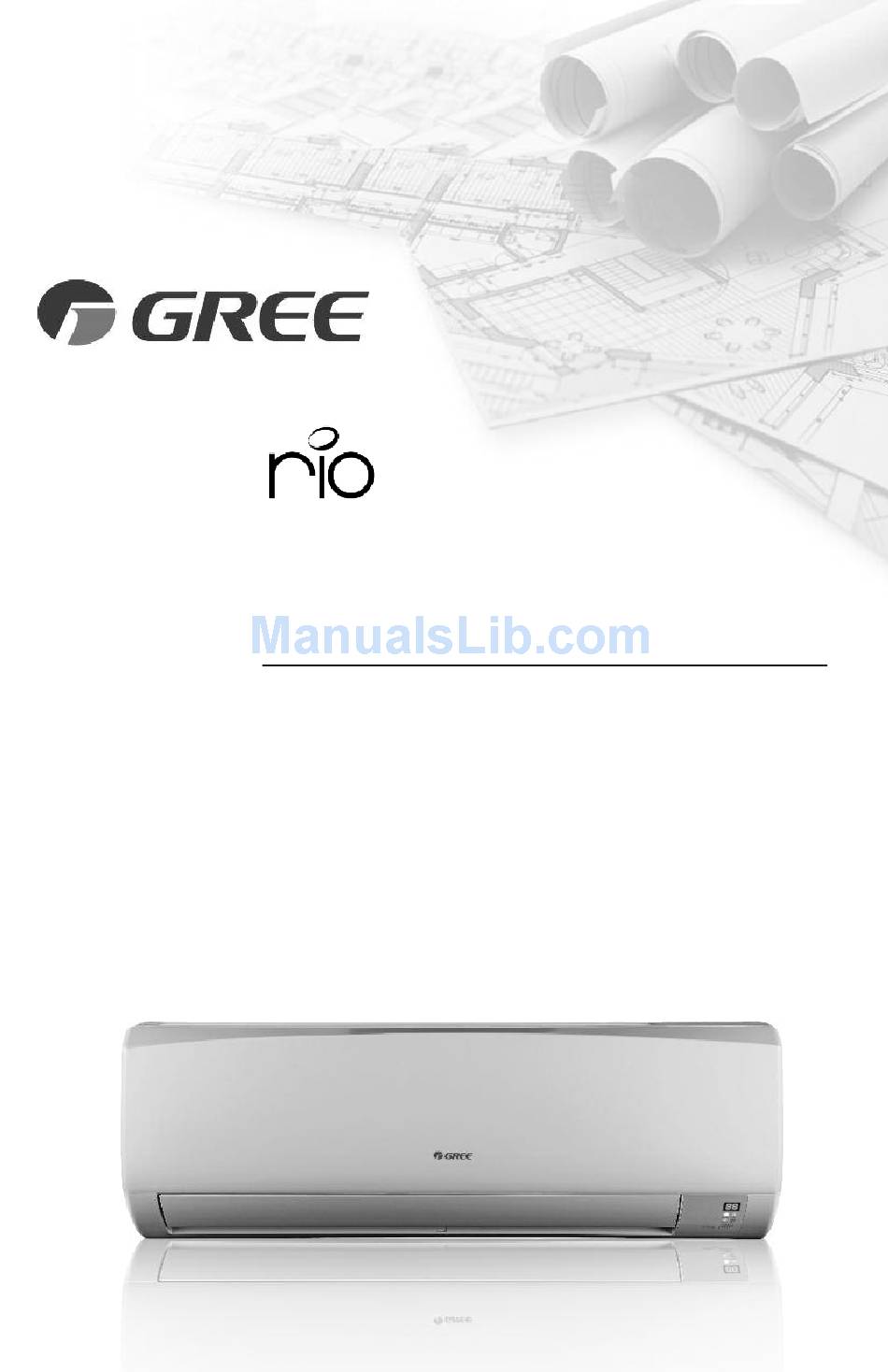

DUCTLESS INVERTER HEAT PUMP INSTALLATION MANUAL Models: GWH09KF-A3DNB1A GWH12KF-A3DNB1A GWH09KF-D3DNB1C GWH12KF-D3DNB1C GWH18KG-D3DNB1C GWH24KG-D3DNB1A... -
Page 2: Table Of Contents
Thank you for choosing a Gree Rio Ductless Heat Pump for your customer. Please read this installation manual carefully before installing and starting up the Rio System. Take a moment to fill out the product and installation form on the back cover. Retain both the manual and installation record for future reference. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read the following before installation. Recognize safety information. This is the safety-alert symbol. When you see this symbol on the unit and in instructions or manuals, be alert to the potential for personal injury. Understand these signal words: DANGER, WARNING, and CAUTION. These words are used with the safety-alert symbol. -
Page 4: General Safety Precautions
SAFETY PRECAUTIONS C UTION • The unit should be installed and serviced only by trained, qualified installers and service mechanics. Untrained personnel can perform basic maintenance functions such as cleaning coils.All other operations should be performed by trained service personnel. •... -
Page 5: System Requirements
SYSTEM REQUIREMENTS Piping Requirements PIPE SIZE in (mm) Unit Size Voltage Liquid Line Suction/Gas Line (BtuH) 9,000 115v - 1ph 60hz 1/4 (6) 3/8 (9.5) 12,000 115v - 1ph 60hz 1/4 (6) 3/8 (9.5) 9,000 208/230v - 1ph 60hz 1/4 (6) 3/8 (9.5) 12,000 208/230v - 1ph 60hz... -
Page 6: Suggested Tools
SUGGESTED TOOLS • Standard Wrench • Adjustable/Crescent Wrench • Torque Wrench • Hex Keys or Allen Wrenches • Drill & Drill Bits • Hole Saw • Pipe Cutter • Screw drivers (Phillips & Flat blade) • Manifold and Gauges • Level •... -
Page 7: Site Instructions
INSTALLATION SITE INSTRUCTIONS Step 1 Installation Site of Indoor Unit Select a site that allows for the following: • Ensure the installation complies with the installation minimum dimensions and meets the minimum and maximum connecting piping length and maximum change in elevation. •... -
Page 8: Indoor Unit
INSTALLATION DIMENSIONS Indoor unit Part Name 1. Remote Controller 2. Front Panel 3. Air Filter 4. Horizontal Louver 5. Wall Hole Sleeve 6. Insulation 7. Refrigerant Pipes 8. Drain Hose Outdoor unit... - Page 9 INSTALLATION DIMENSIONS Minimum indoor clearances Ceiling 6 in (0.15m) 5 in 5 in (0.13m) (0.13m) 6 ft (1.8m) Floor Minimum outdoor clearances Air inlet Air outlet Minimum Distances Outdoor Unit in (mm) 20 (500) 20 (500) 24 (610) 12 (305) 12 (305)
- Page 10 INSTALLATION OF INDOOR UNIT Step 2 Installation of Mounting Bracket 1. Attach the mounting bracket to the indoor unit. 2. Find the horizontal center of the indoor unit. 3. Mark the center of the indoor unit on mounting bracket for future reference. NOTE: The center of the mounting bracket is not the center of the indoor unit.
- Page 11 INSTALLATION OF INDOOR UNIT Mounting Bracket Diagrams and Dimensions Right Left Φ2 1/4 Φ2 1/4 09K and 12K Unit (Rear piping hole) (Rear piping hole) 21 3/8 5 3/4 1 1/2 4 1/2 5 1/2 8 1/8 18K Size Unit 39 5/8 5 1/8 7 1/2...
- Page 12 INSTALLATION OF INDOOR UNIT Step 3 Drill Hole in Wall for Interconnecting Piping, Drain & Wiring If indoor unit refrigerant piping is going to exit from the rear: 1. It is recommended that the refrigerant pipe flare connectors extend through the wall to the outside.
- Page 13 OUTDOOR UNIT PREPARATION Step 4 Install Ground Pad or Wall Hangers 1. Determine proper location for outdoor unit. 2. Follow all instructions provided by manufacturer for installing wall hangers or ground pad. 3. Verify the wall hangers or ground pad can safely support the weight of the outdoor unit. 4.
-
Page 14: Refrigerant Piping
INSTALLATION OF REFRIGERANT PIPING Step 5 Piping Connections to Outdoor Unit C UTION Use refrigeration grade tubing ONLY. No other type of tubing may be used. Use of other types of tubing will void manufacturer’s warranty. Make sure there is enough piping to cover the required length between the outdoor and indoor unit. - Page 15 INSTALLATION OF REFRIGERANT PIPING 4. Open front cover of indoor unit and remove field wiring terminal block cover. Route the interconnecting wires to terminal block in control box. 5. Allow interconnecting wires to hang free.Wire connections will be handled later in these instructions. 6.
- Page 16 Service Valve Cover Torque Table Tightening Torque Pipe Diameter Nut Size inch (mm) inch (mm) ft-lbs 1/4 (6.35) 1/4 (17) 10 to 13 14 to 18 3/8 (9.5) 3/8 (22) 25 to 30 34 to 42 1/2 (12.7) 1/2 (25) 36 to 45 49 to 61 5/8 (15.9)
-
Page 17: Power And Wiring
INSTALLATION OF POWER AND WIRING Step 7 Indoor Unit Interconnecting Wire Connections W RNING Disconnect all electrical power to unit including disconnects, fuses and circuit breakers. 1. Open front cover of indoor unit and remove field wiring terminal block cover. 2. - Page 18 INSTALLATION OF POWER AND WIRING Step 8 Outdoor Unit Wire Connections W RNING Disconnect all electrical power to unit including disconnects, fuses and circuit breakers. 1. Remove the service panel on right side of the outdoor unit. 2. Insert interconnecting wires and main power wires through the wire holes on conduit mounting bracket.
- Page 19 INSTALLATION OF POWER AND WIRING Indoor Unit Outdoor Unit Blue N(1) N(1) Black Wiring Diagram Brown 18K and 24K BtuH Grn/Yel Black White Interconnecting Wires Grn/Yel Main Power Wires 5. Following the same wire colors and terminal references from the indoor unit, tightly connect interconnecting wires to the outdoor unit terminal block per wiring diagram above.
-
Page 20: Vacuum Testing
VACUUM TESTING Step 9 Leaking Test 1. Connect the charging hose of the manifold valve to charge the end of the low-pressure valve. 2. Add dry nitrogen to a pressure of 200 lbs.Tightly close both high- and low-pressure valves. 3. Leak-test flare fittings with soap bubbles. If no leak is detected, release nitrogen. Step 10 System Vacuum and Charge C UTION... - Page 21 VACUUM TESTING 5. Evacuate using either deep vacuum or triple evacuation method. 6. After evacuation is complete, fully close the low side of manifold gage and stop operation of vacuum pump. 7. The factory charge contained in the outdoor unit is good for up to 25 ft. (8 m) of line length. NOTE: For refrigerant lines longer than 25 ft (8 m), add add’l refrigerant per foot of extra piping up to the maximum allowable length.
-
Page 22: Start-Up
START-UP Step 11 Fig. a Installing Photocatalytic Filter (optional) 1. Lift front panel and remove air filter. (Fig. a). 2. Attach photocatalytic filter onto air filter. (Fig. b). Fig. b 3. Install air filter as shown; close panel. (Fig. c). Air Filter Photocatalytic Filter... -
Page 23: Troubleshooting
START-UP AND TROUBLESHOOTING Explain Following Items To Customer With The Aid Of The Owner’s Manual: 1. How to turn system on and off; selecting COOLING, HEATING and other operating modes; setting a desired temperature; setting the timer to automatically start and stop system operation;... - Page 24 UNIT INFORMATION Model No. Serial No. INSTALLATION INFORMATION Date Installed: DEALERSHIP/INSTALLER INFORMATION Company Name: Address: Phone Number: Technician Name: Gree Electric Appliances, Inc ©2013 Cat No: DFS-RIO-HP-1IN...
