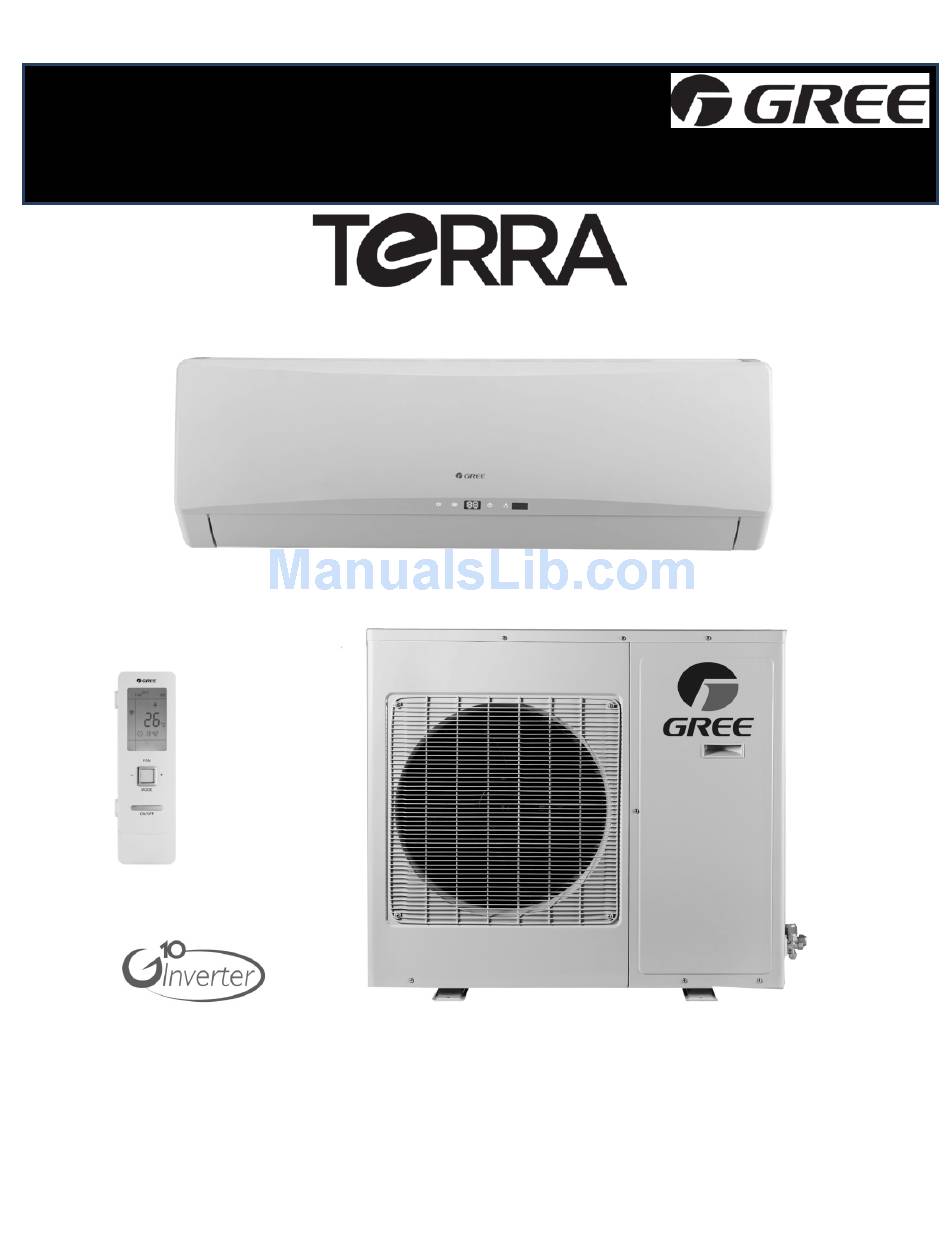

Terra
Duct-free Mini-Split Heat Pump
9,000– 24,000 BtuH
Technical Product Guide
Save Energy, Protect the Environment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TERRA09HP230V1A and is the answer not in the manual?

Questions and answers

Related Manuals for Gree TERRA09HP230V1A

Summary of Contents for Gree TERRA09HP230V1A

  • Page 1 Terra Duct-free Mini-Split Heat Pump 9,000– 24,000 BtuH Technical Product Guide Save Energy, Protect the Environment...

  • Page 2: Table Of Contents

    SYSTEM PERFORMANCE SOUND DATA ELECTRICAL DATA 10.0 MAJOR COMPONETS & WEIGHTS 11.0 DIMENSIONAL SPECIFICATIONS 12.0 CLEARANCE SPECIFICATIONS 13.0 EXTENDED PERFORMANCE RATINGS 14.0 ELECTRICAL WIRING 15.0 CONDENSATE REMOVAL 16.0 TETHERED WIRED CONTROLLER 17.0 PRODUCT LIMITED WARRANTY © 2014 Gree Electric Appliance, Inc.

  • Page 3: Product Overview

    Higher efficiency and significant energy savings? Yes, it yields those too. HEAT PUMP ADVANTAGE – Gree heat pumps, powered by the G10 Inverter, provide the same heating capacity as electric heat, while using as little as 1/3 the electricity.
  • Page 4 LOW VOLTAGE START UP – Having stable electrical power is not always an option. The Gree system will operate from 170v to 253v (230v model) and 104v to 127v (115v models) which is suitable for unstable power supply areas.
  • Page 5 LCD display. WIRED TETHER CONTROLLER (Optional) – The Gree tether controller mounts to the wall up to 25 feet from the unit. It provides complete control over operation mode, desired temperature, fan speed, airflow direction and more.
  • Page 6 FAHRENHEIT ° F / CELSIUS ° C - The wired tether and wireless controllers can be set to display in either °F or °C. SELF-DIAGNOSIS –With an on-board computer using real-time diagnostics, the Gree system helps to prolong its own life. The automatic diagnosis feature continuously scans for unacceptable operating conditions or malfunctions.

  • Page 7: Product Nomenclature

    NOMENCLATURE AHRI CERTIFICATION MODEL NUMBER BRAND AHRI CERTIFICATION GREE TERRA09HP230V1A 7084753 GREE TERRA12HP230V1A 7077794 GREE TERRA18HP230V1A 7077795 GREE TERRA24HP230V1A 7078450 © 2014 Gree Electric Appliance, Inc.

  • Page 8: System Features

    7 Speeds 7 Speeds Self-Diagnosis Photocatalytic Filter Ventilation (Outdoor Air) Ambient Cooling Operating Range 5～118 F 5～118 F 50～118 F 50～118 F Ambient Heating Operating Range 5～75 F 5～75 F 5～75 F 5～75 F © 2014 Gree Electric Appliance, Inc.

  • Page 9: User Control Functions

    Dry Anti-Mildew (X-Fan) Mode Energy Saving Mode Dirty Filter Alert I Feel Function Wired Controller Interface Lock on Remote Controller Quiet Mode Room Temperature Display Sleep Mode Multi Sleep Modes Options Timer Mode Turbo Mode © 2014 Gree Electric Appliance, Inc.

  • Page 10: System Performance

    3. All system ratings are based on fan coil units operating at high fan speed. Consult Physical Data tables for air flows at selected fan speeds. Legend EER - Energy Efficiency Ratio HSPF - Heating Seasonal Performance Ratio SEER - Seasonal Energy Efficiency Ratio COP - Coefficient of Performance © 2014 Gree Electric Appliance, Inc.
  • Page 11 Air Flow (CFM) TERRA09HP230V1AO 1,177 TERRA12HP230V1AO 1,177 TERRA18HP230V1AO 1,883 TERRA24HP230V1AO 2,354 Indoor Air Throw Approximate Air Throw (ft./m)) Model Numbers Medium High Turbo 19/5.8 29/8.8 TERRA09HP230V1AH 19/5.8 29/8.8 TERRA12HP230V1AH 21/6.5 29/8.8 TERRA18HP230V1AH 23/7.0 29/8.8 TERRA24HP230V1AH © 2014 Gree Electric Appliance, Inc.
  • Page 12 R-410A 56.4 TERRA24HP230V1AO R-410A 77.6 Refrigerant Piping Lengths Model Number Min. Pipe Length Max Pipe Length for Max Elevation between for System (ft.) System (ft.) Outdoor & Indoor Units (ft.) TERRA09HP230V1AO TERRA12HP230V1AO TERRA18HP230V1AO TERRA24HP230V1AO © 2014 Gree Electric Appliance, Inc.

  • Page 13: Sound Data

    Sound Pressure Model Numbers (dBA) (dBA) TERRA09HP230V1AO TERRA12HP230V1AO TERRA18HP230V1AO TERRA24HP230V1AO Note: 1. Sound pressure ratings are estimated sound pressure measurements, 3 feet from unit. 2. Sound power ratings are per AHRI 270 and AHRI 350 © 2014 Gree Electric Appliance, Inc.

  • Page 14: Electrical Data

    (amps) (amps) (amps) (amps) (Watts) (Watts) TERRA09HP230V1AO 13.8 13.8 TERRA12HP230V1AO TERRA18HP230V1AO 27.0 TERRA24HP230V1AO 12.0 40.0 Legend: RLA – Rated Load Amps LA – Full Load AmpsLRA – Locked Rotor AmpsMCA – Min. Circuit Amps © 2014 Gree Electric Appliance, Inc.

  • Page 15: Major Componets & Weights

    Inverter Device Rotary TERRA09HP230VA1O TERRA12HP230VA1O Rotary TERRA18HP230VA1O Rotary TERRA24HP230VA1O Rotary PRODUCT WEIGHT Outdoor Unit Indoor Unit Model Numbers Net Operating Gross Shipping Net Operating Gross Shipping (lbs.) (lbs.) (lbs.) (lbs.) TERRA09HP230V1A TERRA12HP230V1A TERRA18HP230V1A TERRA24HP230V1A © 2014 Gree Electric Appliance, Inc.

  • Page 16: Dimensional Specifications

    Model No: TERRA09HP230V1A 9,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 1/2-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 1/2-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 17 Model No: TERRA12HP230V1A 12,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 1/2-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 1/2-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 18 Model No: TERRA18HP230V1A 18,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 5/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 5/8-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 19 Model No: TERRA24HP230V1A 24,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 5/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 5/8-in OD Flared © 2014 Gree Electric Appliance, Inc.

  • Page 20: Clearance Specifications

    CLEARANCE SPECIFICATIONS Indoor Minimum Clearance* Inch (mm) Outdoor Unit Minimum Clearance* Outdoor Minimum Distance Unit 508 mm 20 in 508 mm 20in 1,981 mm 78 in 305 mm 12 in 305 mm 12in *All Models © 2014 Gree Electric Appliance, Inc.

  • Page 21: Extended Performance Ratings

    SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 22 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 23 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 24 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.

  • Page 25: Electrical Wiring

    The interconnecting cable should not be buried underground and must be recognized by UL or ETL and CSA certified. Note: Use shield cable if installation is in close proximity of RF and EMI transmitting devices. © 2014 Gree Electric Appliance, Inc.

  • Page 26: Condensate Removal

    All condensate drains must meet local codes and regulations. If adequate gravity drainage cannot be provided, a field-installed condensate pump must be used. Refer to manufacturer’s installation instructions, specifications and operating details supplied with condensate pump. Typical Condensate Pump Wiring Diagram © 2014 Gree Electric Appliance, Inc.

  • Page 27: Tethered Wired Controller

    Most indoor units allow a room setpoint from 61° F to 86° F (16° ~ 30° C). TIMER MODE - When needed, the XK series allows you the ability to program a time period (one-half to 24 hours) to which your system will automatically turn ON or OFF. © 2014 Gree Electric Appliance, Inc.
  • Page 28 The fault or status codes will be shown on XK-series wired tether controller display to facilitate easy troubleshooting and repair. DIMENSIONAL SPECIFICATIONS Dimensions TYPE PART NUMBER 1.375 (35) XK-41 MC207059 3.625 (92) 3.625 (92) © 2014 Gree Electric Appliance, Inc.
  • Page 29 Push extra cable into wall and secure controller panel to backplate mounted on the wall. NOTE: DO NOT CUT AN SPICE COMMUNICATION CABLE. Follow the start-up setup instructions supplied with the Wired Tether Controller. © 2014 Gree Electric Appliance, Inc.

  • Page 30: Product Limited Warranty

    LIMITED WARRANTY STATEMENT Effective on new GREE Duct-free purchases on or after March 1, 2013Duct-free Heat Pump Mini-Split Systems: TERRA09HP115V1A TERRA12HP115V1A TERRA09HP230V1A TERRA12HP230V1A TERRA18HP230V1A TERRA24HP230V1A TERRA30HP230V1A TERRA36HP230V1A GREE distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.
  • Page 31 Complete product registration below and send back by e-mail at service@twclimate.com This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province. WSO021513-DLSWARR-HP – Rev. 3-8-13 © 2014 Gree Electric Appliance, Inc.
  • Page 32 Specifications in this booklet are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs without notice or without incurring obligations. All rights reserved. Cat No. TERRA-1TPG Version: Original © 2014 Gree Electric Appliance, Inc.
