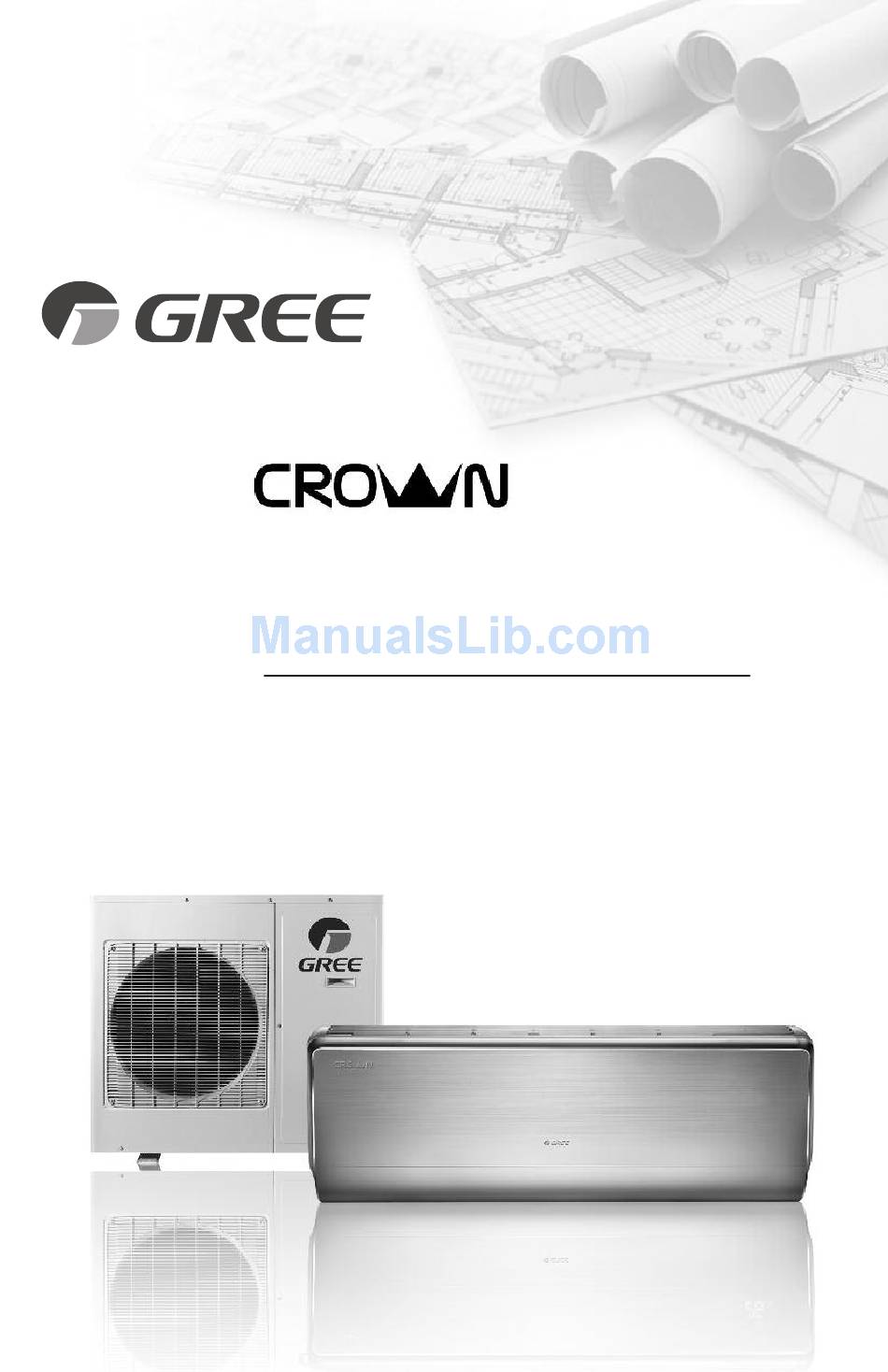

Page 1: Installation Manual

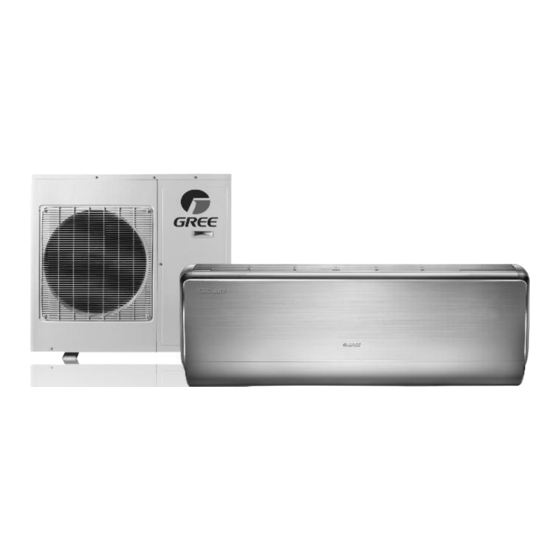

HIGH-WALL DUCTLESS AIR CONDITIONING & HEATING SYSTEM INSTALLATION MANUAL Models: CROWN09HP230V1A CROWN12HP230V1A CROWN18HP230V1A... -
Page 2: Table Of Contents
Thank you for choosing a Crown High-Wall Unit for your customer. Please read this installation manual carefully before installing and starting up the Crown System.Take a moment to fill out the product and installation form on the back cover. Retain both the manual and installation record for future reference. Table of Contents Safety Precautions . -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read the following before operation. Recognize safety information. This is the safety-alert symbol. When you see this symbol on the unit and in instructions or manuals, be alert to the potential for personal injury. Understand these signal words: DANGER, WARNING, and CAUTION. These words are used with the safety-alert symbol. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS W RNING • The unit should be installed and serviced only by trained, qualified installers and service technicians. Untrained personnel can perform basic maintenance functions such as cleaning coils.All other operations should be performed by trained service personnel. •... -
Page 5: Nomenclature
NOMENCLATURE Example: CROWN12HP230V1AO CROWN 12 HP 230V 1 Series Designation TERRA Product Type S - System CROWN O - Outdoor units H - Indoor High Wall Cooling Capacity 09 - 9,000 BTUH Revision Level 12 - 12,000 BTUH 18 - 18,000 BTUH Style/Color Designation Model Type AC - Cooling Only... -
Page 6: System Requirements
SYSTEM REQUIREMENTS PIPE SIZE in (mm) Unit Size (BtuH) Liquid Line Suction/Gas Line 9,000 1/4 (6) 1/2 (12) 12,000 1/4 (6) 1/2 (12) 18,000 1/4 (6) 5/8 (15) REFRIGERANT LINE LENGTHS ft (m) Pre-Charge Unit Size (BtuH) Min Line Length Max Line Length Max Elevation Line Length... -
Page 7: Suggested Tools
SUGGESTED TOOLS • Standard Wrench • Adjustable/Crescent Wrench • Torque Wrench • Hex Keys or Allen Wrenches • Drill & Drill Bits • Hole Saw • Pipe Cutter • Screw drivers (Phillips & Flat blade) • Manifold and Gauges • Level •... -
Page 8: Part Names
PART NAMES Air inlet Indoor unit Air outlet Part Name 1. Front Panel 2. Filter 3. Remote Controller 4. Inter-Connection Wire 5. Drain Hose 6. Refrigerant Lines Air inlet Outdoor unit Air outlet... -
Page 9: Installation Site Instructions
INSTALLATION SITE INSTRUCTIONS Indoor Unit Select a site that allows for the following: 1. Ensure the installation complies with the installation minimum dimensions (defined below) and meets the minimum and maximum connecting piping length and maximum change in elevation as defined in the System Requirements section. 2. - Page 10 INSTALLATION SITE INSTRUCTIONS Outdoor Unit Select a site that allows for the following: 1. Outdoor location meets all minimum installation clearances defined below. 2. Sound from outdoor unit will not annoy neighbors. 3. All connections can be easily made to indoor unit. 4.
-
Page 11: Indoor Unit Installation
INDOOR UNIT INSTALLATION Installation of Mounting Bracket 1. Attach the mounting bracket to the indoor unit. 2. Find the horizontal center of the indoor unit. 3. Mark the center of the indoor unit on mounting bracket for future reference. NOTE: The center of the mounting bracket is not the center of the indoor unit. 4. - Page 12 INDOOR AND OUTDOOR UNIT INSTALLATION INDOOR UNIT DIMENSIONS in (mm) Model 37.8 12.6 CROWN09HP230V1AO (960) (320) (205) 37.8 12.6 CROWN12HP230V1AO (960) (320) (205) 37.8 12.6 CROWN18HP230V1AO (960) (320) (205) OUTDOOR UNIT DIMENSIONS in (mm) Model 21.7 14.9 23.5 35.4 13.9 CROWN09HP230V1AO (551) (378)
-
Page 13: Outdoor Unit Installation
OUTDOOR UNIT INSTALLATION Ground Pad or Wall Hangers Installation 1. Determine proper location for outdoor unit. 2. Follow all instructions provided by manufacturer for installing wall hangers or ground pad. 3. Verify the wall hangers or ground pad can safely support the weight of the outdoor unit. 4. -
Page 14: Piping Installation
PIPING INSTALLATION Refrigerant Piping Drill Hole in Wall If indoor unit refrigerant piping is going to exit from the rear: 1. It is recommended that the refrigerant pipe flare connectors extend through the wall to the outside. In some situations field-fabricated piping extensions will be required to extend the indoor unit refrigerant flare connections to the outside of the wall. -
Page 15: Refrigerant Piping
PIPING INSTALLATION WARNING Refrigerant Piping CAUTION C UTION WARNING Use refrigeration grade piping ONLY. Uses of other piping will void the Manufacturer’s Warranty. Piping Preparation: 1. Do not open service valves or remove protective caps on pipes until all connections are made. 2. - Page 16 PIPING INSTALLATION Refrigerant Piping Piping Connections to Indoor Unit (con’t): 4. Properly align piping and tighten flare nut using a standard wrench and a torque wrench as shown in figure to the below. Carefully tighten flare nuts to correct torque level referring to the Torque Table at bottom of page.
-
Page 17: Piping Installation
PIPING INSTALLATION Indoor Drain Piping The Crown indoor wall unit uses a gravity drain system.There is no internal condensate pump. The drain hose must slope downward with no kinks, raises or fluctuations. NOTE: The drain tube cannot be field re-located from the Left to the Right side of the indoor unit. 1. -
Page 18: Power And Wiring Installation
POWER AND WIRING INSTALLATION System Wiring Diagrams 9,000 and 12,000 BtuH Indoor Unit Outdoor Unit Blue Black N(1) Black White Brown Grn/Yel Grn/Yel Interconnecting Main Power Wires Wires 18,000 BtuH Indoor Unit Outdoor Unit Blue N(1) N(1) Black Brown Grn/Yel Black White Interconnecting... - Page 19 POWER AND WIRING INSTALLATION Indoor Unit Wire Connections WARNING CAUTION W RNING WARNING Disconnect all electrical power to indoor and outdoor units including disconnects, fuses and circuit breakers. Lockout and tag all disconnect switches. 1. Open front cover of indoor unit and remove field wiring terminal block cover. 2.
-
Page 20: Power And Wiring Installation
POWER AND WIRING INSTALLATION WARNING Outdoor Unit Wire Connections CAUTION WARNING Disconnect all electrical power to unit including disconnects, fuses and circuit breakers. Lockout and tag all disconnect switches. 1. Remove the service panel on right side of the outdoor unit. 2. -
Page 21: Testing And Inspection
TESTING AND INSPECTION Leaking Test 1. Connect the charging hose of the manifold valve to charge the end of the low-pressure valve. 2. Add dry nitrogen to a pressure of 200 lbs.Tightly close both high- and low-pressure valves. WARNING 3. Leak-test flare fittings with soap bubbles. If no leak is detected, release nitrogen. CAUTION C UTION WARNING... -
Page 22: Additional Charge
TESTING AND INSPECTION Vacuum Procedure (con’t) 7. Confirm that manifold valves are closed and disconnect the vacuum pump. 8. Open the service valves to the fully ‘back-seat’ position to let the refrigerant flow to the indoor unit and balance the pressure in system. Important: Do not allow air to enter the connection pipe when removing the hose. - Page 23 TESTING AND INSPECTION Start-up Checklist Turn on main power to indoor and outdoor units. • Verify the system is not displaying an error code on the indoor unit display. Match Remote controller to indoor unit. The Crown models require the wireless remote controller to be matched to the indoor wall unit before beginning any operations, otherwise the Crown indoor wall unit will not accept commands from the remote controller.
-
Page 24: Testing And Inspection
TESTING AND INSPECTION Press the Mode button to Cooling. Adjust the room setpoint to bring the system on in cooling mode. The system should start cooling mode within 3-5 minutes. • Verify the outdoor fan and compressor are operating. • Verify the indoor fan is operating. •... -
Page 25: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE/SOLUTION System does not restart. Cause: The system has a built-in three-minute delay to prevent short and/or rapid cycling of the compressor. Solution: Wait three minutes for the protection delay to expire. Indoor unit emits unpleasant odor Cause: Typically unpleasant odors are the result of mold or mildew forming on when started the coil surfaces or the air filter. -
Page 26: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE/SOLUTION Water leaking from the indoor Cause: While it is normal for the system to generate condensate water in cooling unit into the room. mode, it is designed to drain this water via a condensate drain system to a safe location. Solution: If water is leaking into the room, it may indicate one of the following. -
Page 27: Diagnostic Codes
DIAGNOSTIC CODES Troubleshooting The Crown System has on board diagnostics. The outdoor unit will provide status indicators. The indoor wall unit and remote controller will display error codes. The following is a summary of the codes with explanation: Outdoor Unit Indicators Indoor Unit Malfunction Name Possible Causes... - Page 28 DIAGNOSTIC CODES Outdoor Unit Indicators Indoor Unit Malfunction Name Possible Causes Display Yellow Indoor Ambient Temperature 1) Loose or bad connection between sensor and control board. Sensor Malfunction 2) Indoor ambient temperature sensor damaged. 3) Control board malfunction. Indoor Coil Temperature 1) Loose or bad connection between sensor and control board.
- Page 29 DIAGNOSTIC CODES Outdoor Unit Indicators Indoor Unit Malfunction Name Possible Causes Display Yellow IPM Module Protection 1) IPM module over heating. 4 flashes 2) Improper or Low voltage at the IPM module. 3) IPM module malfunction. 1 sec Off Indoor DC Fan Motor 1) Loose connections between fan motor and control board Malfunction 2) Fan motor or blower wheel bearings malfunction.
-
Page 30: Care And Cleaning
CARE AND CLEANING WARNING CAUTION W RNING WARNING Take notice of the following items before cleaning the Crown indoor wall unit. • To avoid electric shock or injury, do not attempt to clean the unit unless it has been turned off and disconnected from the main power supply. •... - Page 31 UNIT INFORMATION Outdoor Unit: Model No. Serial No. Indoor Unit: Model No. Serial No. INSTALLATION INFORMATION Date Installed: DEALERSHIP/INSTALLER INFORMATION Company Name: Address: Phone Number: Technician Name: Gree Electric Appliances, Inc ©2015 Cat No: DFS-CROWN-HP-1IN...
