Gree NEO09HP115V1A Technical Product Manual

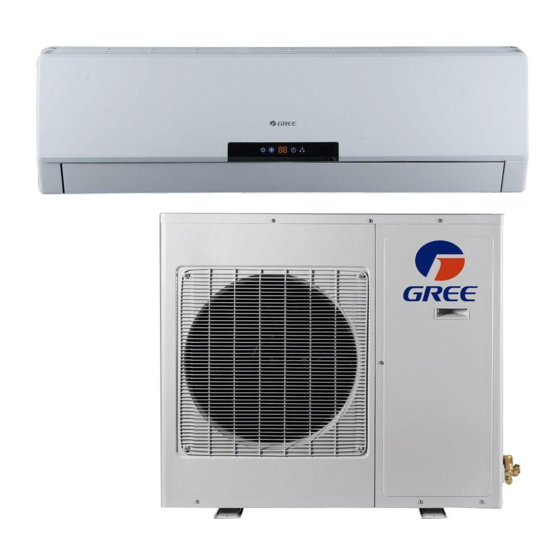

Neo series duct-free mini-split heat pump
Hide thumbs Also See for NEO09HP115V1A:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Installation Manual

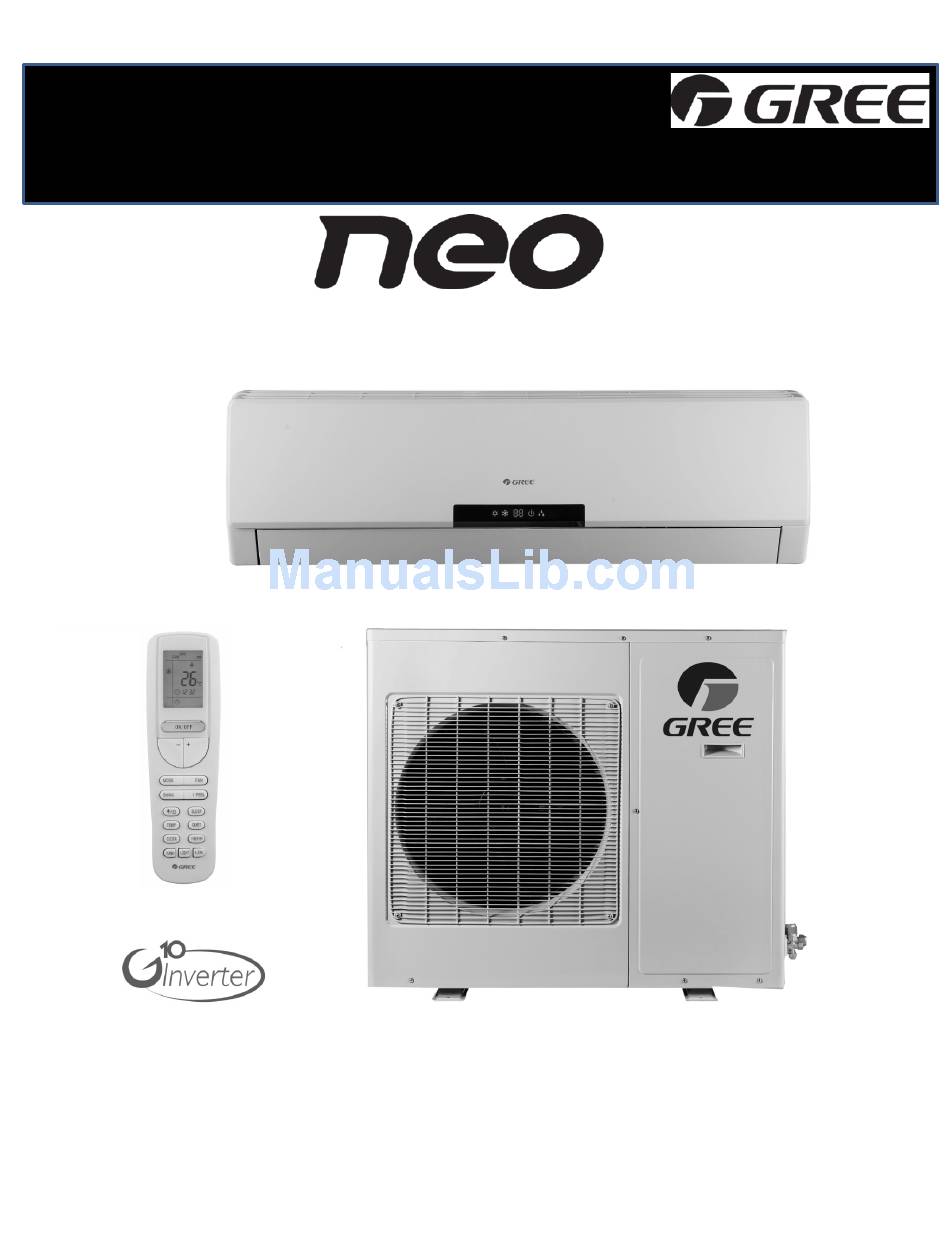

NEO
Duct-free Mini-Split Heat Pump
9,000– 36,000 BtuH
Technical Product Guide
Innovative Duct-free Mini Split Solution

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEO09HP115V1A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gree NEO09HP115V1A

Summary of Contents for Gree NEO09HP115V1A

  • Page 1 Duct-free Mini-Split Heat Pump 9,000– 36,000 BtuH Technical Product Guide Innovative Duct-free Mini Split Solution...

  • Page 2: Table Of Contents

    SYSTEM PERFORMANCE SOUND DATA ELECTRICAL DATA 10.0 MAJOR COMPONETS & WEIGHTS 11.0 DIMENSIONAL SPECIFICATIONS 12.0 CLEARANCE SPECIFICATIONS 13.0 EXTENDED PERFORMANCE RATINGS 14.0 ELECTRICAL WIRING 15.0 CONDENSATE REMOVAL 16.0 TETHERED WIRED CONTROLLER 17.0 PRODUCT LIMITED WARRANTY © 2014 Gree Electric Appliance, Inc.

  • Page 3: Product Overview

    NEO Duct-free Mini-Split System is a Combination of Power & Efficiency Energy-efficient yet powerful, the Gree Neo is an energy efficient duct-free split system that excels at single zone applications. This system includes an indoor cabinet, outdoor compressor, wireless remote and remote cradle.
  • Page 4 FEATURES AND BENEFITS (Cont.) LOW VOLTAGE START UP – Having stable electrical power is not always an option. The Gree system will operate from 170v to 253v (230v model) and 104v to 127v (115v models) which is suitable for unstable power supply areas.
  • Page 5 The front panel does not need to be removed to access or change the filters. The filters are washable and permanent. SELF-DIAGNOSIS –With an on-board computer using real-time diagnostics, the Gree system helps to prolong its own life. The automatic diagnosis feature continuously scans for unacceptable operating conditions or malfunctions.

  • Page 6: Product Nomenclature

    115V - 115V 60Hz 1PH AHRI CERTIFICATION MODEL NUMBER BRAND AHRI CERTIFICATION GREE 7181271 NEO09HP115V1A GREE 7181272 NEO12HP115V1A GREE 7065019 NEO09HP230V1A GREE 7065020 NEO12HP230V1A GREE 7065021 NEO18HP230V1A GREE 7065022 NEO24HP230V1A GREE 7065023 NEO30HP230V1A GREE 7065024 NEO36HP230V1A © 2014 Gree Electric Appliance, Inc.

  • Page 7: System Features

    Intelligent Preheating LED Display Indoor Unit Low Ambient Cooling Low Ambient Heating Low Voltage Startup Memory/Power Failure Recovery Multi Fan Speeds Speeds Speeds Speeds Speeds Speeds Speeds Speeds Speeds Self-Diagnosis Photocatalytic Filter Ventilation (Outdoor Air) © 2014 Gree Electric Appliance, Inc.

  • Page 8: User Control Functions

    Dry Anti-Mildew (X- Fan) Mode Energy Saving Mode Dirty Filter Alert I Feel Function Wired Controller Interface Lock on Remote Controller Quiet Mode Room Temperature Display Sleep Mode Multi Sleep Modes Options Timer Mode Turbo Mode © 2014 Gree Electric Appliance, Inc.

  • Page 9: System Performance

    3. All system ratings are based on fan coil units operating at high fan speed. Consult Physical Data tables for air flows at selected fan speeds. Legend EER - Energy Efficiency Ratio HSPF - Heating Seasonal Performance Ratio SEER - Seasonal Energy Efficiency Ratio COP - Coefficient of Performance © 2014 Gree Electric Appliance, Inc.
  • Page 10 22 (6.7) 27 (8.2) 33 (10.1) 39 (11.9) NEO24HP230V1AH 25 (7.6) 29 (8.8) 34 (10.4) 42 (12.8) NEO30HP230V1AH 35 (10.7) 37 (14.3) 40 (12.1) 45 (13.7) NEO36HP230V1AH 37 (11.3) 40 (12.1) 45 (13.7) 48 (14.6) © 2014 Gree Electric Appliance, Inc.
  • Page 11 91.7 REFRIGERANT PIPING LENGTHS Model Number Min. Pipe Length Max Pipe Length for Max Elevation between for System (ft.) System (ft.) Outdoor & Indoor Units (ft.) NEO09HP115V1AO NEO12HP115V1AO NEO09HP230V1AO NEO12HP230V1AO NEO18HP230V1AO NEO24HP230V1AO NEO30HP230V1AO NEO36HP230V1AO © 2014 Gree Electric Appliance, Inc.

  • Page 12: Sound Data

    (dBA) NEO09HP115V1AO NEO12HP115V1AO NEO09HP230V1AO NEO12HP230V1AO NEO18HP230V1AO NEO24HP230V1AO NEO30HP230V1AO NEO36HP230V1AO Note: 1. Sound pressure ratings are estimated sound pressure measurements, 3 feet from unit. 2. Sound power ratings are per AHRI 270 and AHRI 350 © 2014 Gree Electric Appliance, Inc.

  • Page 13: Electrical Data

    27.0 0.28 NEO24HP230V1A 11.0 41.0 13.5 40.0 0.45 NEO30HP230V1A NEO36HP230V1A 17.5 67.0 0.73 Legend: RLA – Rated Load Amps FLA – Full Load Amps LRA – Locked Rotor Amps MCA – Min. Circuit Amps © 2014 Gree Electric Appliance, Inc.

  • Page 14: Major Componets & Weights

    NEO24HP230VA1O Rotary NEO30HP230V1AO Rotary NEO36HP230V1AO Rotary PRODUCT WEIGHT Outdoor Unit Indoor Unit Model Numbers Net Operating Gross Shipping Net Operating Gross Shipping (lbs.) (lbs.) (lbs.) (lbs.) NEO09HP115V1A NEO12HP115V1A NEO09HP230V1A NEO12HP230V1A NEO18HP230V1A NEO24HP230V1A NEO30HP230V1A NEO36HP230V1A © 2014 Gree Electric Appliance, Inc.

  • Page 15: Dimensional Specifications

    Model No: NEO09HP115V1A 9,000 BtuH 115V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 16 Model No: NEO12HP115V1A 12,000 BtuH 115V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 17 Model No: NEO09HP230V1A 9,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 18 Model No: NEO12HP230V1A 12,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 19 Model No: NEO18HP230V1A 18,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 1/2-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 1/2-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 20 Model No: NEO24HP230V1A 24,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 5/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 5/8-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 21 Model No: NEO30HP230V1A 30,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 5/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 5/8-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 22 Model No: NEO36HP230V1A 36,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 5/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 5/8-in OD Flared © 2014 Gree Electric Appliance, Inc.

  • Page 23: Clearance Specifications

    CLEARANCE SPECIFICATIONS Indoor Minimum Clearance* Inch (mm) Outdoor Unit Minimum Clearance* Outdoor Minimum Distance Unit 508 mm 20 in 508 mm 20in 1,981 mm 78 in 305 mm 12 in 305 mm 12in *All Models © 2014 Gree Electric Appliance, Inc.

  • Page 24: Extended Performance Ratings

    SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 25 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 26 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 27 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 28 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 29 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 30 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 31 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.

  • Page 32: Electrical Wiring

    The interconnecting cable should not be buried underground and must be recognized by UL or ETL and CSA certified. Note: Use shield cable if installation is in close proximity of RF and EMI transmitting devices. © 2014 Gree Electric Appliance, Inc.

  • Page 33: Condensate Removal

    All condensate drains must meet local codes and regulations. If adequate gravity drainage cannot be provided, a field-installed condensate pump must be used. Refer to manufacturer’s installation instructions, specifications and operating details supplied with condensate pump. Typical Condensate Pump Wiring Diagram © 2014 Gree Electric Appliance, Inc.

  • Page 34: Tethered Wired Controller

    Most indoor units allow a room setpoint from 61° F to 86° F (16° ~ 30° C). TIMER MODE - When needed, the XK series allows you the ability to program a time period (one-half to 24 hours) to which your system will automatically turn ON or OFF. © 2014 Gree Electric Appliance, Inc.
  • Page 35 The fault or status codes will be shown on XK-series wired tether controller display to facilitate easy troubleshooting and repair. DIMENSIONAL SPECIFICATIONS Dimensions TYPE PART NUMBER 1.375 (35) XK-41 MC207059 3.625 (92) 3.625 (92) © 2014 Gree Electric Appliance, Inc.
  • Page 36 Push extra cable into wall and secure controller panel to backplate mounted on the wall. NOTE: DO NOT CUT AN SPICE COMMUNICATION CABLE. Follow the start-up setup instructions supplied with the Wired Tether Controller. © 2014 Gree Electric Appliance, Inc.

  • Page 37: Product Limited Warranty

    LIMITED WARRANTY STATEMENT Effective on new GREE Duct-free purchases on or after March 1, 2013Duct-free Heat Pump Mini-Split Systems: NEO09HP115V1A NEO12HP115V1A NEO09HP230V1A NEO12HP230V1A NEO18HP230V1A NEO24HP230V1A NEO30HP230V1A NEO36HP230V1A GREE distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.
  • Page 38 Complete product registration below and send back by e-mail at service@twclimate.com This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province. WSO021513-DLSWARR-HP – Rev. 3-8-13 © 2014 Gree Electric Appliance, Inc.
  • Page 39 © 2014 Gree Electric Appliance, Inc.
  • Page 40 Specifications in this booklet are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs without notice or without incurring obligations. All rights reserved. Version: V2.2 Cat No. NEO-2TPG © 2014 Gree Electric Appliance, Inc.
