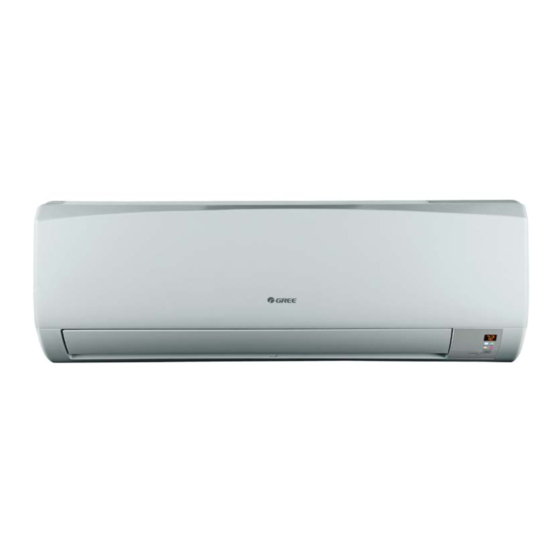

RIO
Ductless Mini-Split Heat Pump
9,000– 24,000 BtuH
Technical Product Guide
Compact & Quiet Solution

Advertisement

Table of Contents
loading

Related Manuals for Gree RIO09HP115V1A

Summary of Contents for Gree RIO09HP115V1A

  • Page 1 Ductless Mini-Split Heat Pump 9,000– 24,000 BtuH Technical Product Guide Compact & Quiet Solution...

  • Page 2: Table Of Contents

    USER CONTROL FUNCTIONS SYSTEM PERFORMANCE SOUND DATA ELECTRICAL DATA 10.0 MAJOR COMPONETS & WEIGHTS 11.0 DIMENSIONAL SPECIFICATIONS 12.0 CLEARANCE SPECIFICATIONS 13.0 EXTENDED PERFORMANCE RATINGS 14.0 ELECTRICAL WIRING 15.0 CONDENSATE REMOVAL 16.0 PRODUCT LIMITED WARRANTY © 2014 Gree Electric Appliance, Inc.

  • Page 3: Product Overview

    This avoids unnecessary and wasteful defrosts. LOW VOLTAGE START UP – Having stable electrical power is not always an option. The Gree system will operate from 170v to 253v (230v model) and 104v to 127v (115v models) which is suitable for unstable power supply areas.
  • Page 4 WIRELESS IR REMOTE CONTROLLER - The Gree multi-functional infrared hand held wireless controller is sleek, ergonomically designed, easy to use and has a large backlit LCD display.
  • Page 5 The front panel does not need to be removed to access or change the filters. The filters are washable and permanent. SELF-DIAGNOSIS –With an on-board computer using real-time diagnostics, the Gree system helps to prolong its own life. The automatic diagnosis feature continuously scans for unacceptable operating conditions or malfunctions.

  • Page 6: Product Nomenclature

    NOMENCLATURE AHRI CERTIFICATION MODEL NUMBER BRAND AHRI CERTIFICATION GREE 7077793 RIO09HP115V1A GREE 7084752 RIO12HP115V1A GREE 7077585 RIO09HP230V1A GREE 7077586 RIO12HP230V1A GREE 7077587 RIO18HP230V1A GREE 7077588 RIO24HP230V1A © 2014 Gree Electric Appliance, Inc.

  • Page 7: System Features

    4 Speeds Self-Diagnosis PhotoCatalytic Filter Ventilation (Outdoor Air) Ambient Cooling 64～113 F 64～113 F 5～109 F 5～109 F 5～109 F 5～109 F Operating Range Ambient Heating 5ºF～75ºF 5ºF～75ºF 5ºF～75ºF 5ºF～75ºF 5ºF～75ºF 19～75 F Operating Range © 2014 Gree Electric Appliance, Inc.

  • Page 8: User Control Functions

    Dry Mode Dry Anti-Mildew (X-Fan) Mode Energy Saving Mode Dirty Filter Alert I Feel Function Wired Controller Interface Lock on Remote Controller Room Temperature Display Sleep Mode Multi Sleep Modes Options Timer Mode Turbo Mode © 2014 Gree Electric Appliance, Inc.

  • Page 9: System Performance

    3. All system ratings are based on fan coil units operating at high fan speed. Consult Physical Data tables for air flows at selected fan speeds. Legend EER - Energy Efficiency Ratio HSPF - Heating Seasonal Performance Ratio SEER - Seasonal Energy Efficiency Ratio COP - Coefficient of Performance © 2014 Gree Electric Appliance, Inc.
  • Page 10 Outdoor Unit Model Numbers Air Flow (CFM) RIO09HP115V1AO 1057 RIO12HP115V1AO 1057 RIO09HP230V1AO RIO12HP230V1AO RIO18HP230V1AO 1882 RIO24HP230V1AO 1883 Indoor Air Throw Approximate Air Throw (ft.) Model Numbers Medium High Turbo RIO09HP115V1AH RIO12HP115V1AH RIO09HP230V1AH RIO12HP230V1AH RIO18HP230V1AH RIO24HP230V1AH © 2014 Gree Electric Appliance, Inc.
  • Page 11 RIO24HP230V1AO R-410A 54.7 REFRIGERANT PIPING LENGTHS Model Number Min. Pipe Length Max Pipe Length for Max Elevation between for System (ft.) System (ft.) Outdoor & Indoor Units (ft.) RIO09HP115V1AO RIO12HP115V1AO RIO09HP230V1AO RIO12HP230V1AO RIO18HP230V1AO RIO24HP230V1AO © 2014 Gree Electric Appliance, Inc.

  • Page 12: Sound Data

    Model Numbers (dBA) (dBA) RIO09HP115V1AO RIO12HP115V1AO RIO09HP230V1AO RIO12HP230V1AO RIO18HP230V1AO RIO24HP230V1AO Note: 1. Sound pressure ratings are estimated sound pressure measurements, 3 feet from unit. 2. Sound power ratings are per AHRI 270 and AHRI 350 © 2014 Gree Electric Appliance, Inc.

  • Page 13: Electrical Data

    (Watts) 25.0 RIO09HP115V1AO RIO12HP115V1AO 11.2 25.0 RIO09HP230V1AO 16.5 RIO12HP230V1AO 16.5 RIO18HP230V1AO 10.9 27.0 RIO24HP230V1AO 12.4 41.0 Legend: RLA – Rated Load AmpsFLA – Full Load AmpsLRA – Locked Rotor AmpsMCA – Min. Circuit Amps © 2014 Gree Electric Appliance, Inc.

  • Page 14: Major Componets & Weights

    RIO09HP230VA1O Rotary Rotary RIO12HP230VA1O RIO18HP230VA1O Rotary RIO24HP230VA1O Rotary PRODUCT WEIGHT Outdoor Unit Indoor Unit Model Numbers Net Operating Gross Shipping Net Operating Gross Shipping (lbs.) (lbs.) (lbs.) (lbs.) RIO09HP115V1A RIO12HP115V1A RIO09HP230V1A RIO12HP230V1A RIO18HP230V1A RIO24HP230V1A © 2014 Gree Electric Appliance, Inc.

  • Page 15: Dimensional Specifications

    Model No: RIO09HP115V1A 9,000 BtuH 115V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 16 Model No: RIO12HP115V1A 12,000 BtuH 115V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 17 Model No: RIO09HP230V1A 9,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 18 Model No: RIO12HP230V1A 12,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 3/8-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 19 Model No: RIO18HP230V1A 18,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 1/2-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 1/2-in OD Flared © 2014 Gree Electric Appliance, Inc.
  • Page 20 Model No: RIO24HP230V1A 24,000 BtuH 230V Liquid Line Valve 1/4-in OD Flared Gas Line Valve 1/2-in OD Flared Drain Connector 5/8-in OD Liquid Line Valve 1/4-in OD Flared Gas Line Valve 1/2-in OD Flared © 2014 Gree Electric Appliance, Inc.

  • Page 21: Clearance Specifications

    CLEARANCE SPECIFICATIONS Indoor Minimum Clearance* Inch (mm) Outdoor Unit Minimum Clearance* Outdoor Minimum Distance Unit 508 mm 20 in 508 mm 20in 1,981 mm 78 in 305 mm 12 in 305 mm 12in *All Models © 2014 Gree Electric Appliance, Inc.

  • Page 22: Extended Performance Ratings

    SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 23 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 24 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 25 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 26 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.
  • Page 27 SHC- Sensible Capacity (BtuH) Capacity data is based on the following conditions: Cooling Nominal Test Conditions Heating Normal Test Conditions Indoor: 80°F DB/67°F WB Indoor: 70°F DB/60°F WB Outdoor: 95°F DB/75°F WB Outdoor: 47°F DB/43°F W © 2014 Gree Electric Appliance, Inc.

  • Page 28: Electrical Wiring

    The interconnecting cable should not be buried underground and must be recognized by UL or ETL and CSA certified. Note: Use shield cable if installation is in close proximity of RF and EMI transmitting devices. © 2014 Gree Electric Appliance, Inc.

  • Page 29: Condensate Removal

    All condensate drains must meet local codes and regulations. If adequate gravity drainage cannot be provided, a field-installed condensate pump must be used. Refer to manufacturer’s installation instructions, specifications and operating details supplied with condensate pump. Typical Condensate Pump Wiring Diagram © 2014 Gree Electric Appliance, Inc.

  • Page 30: Product Limited Warranty

    RIO18HP230V1A RIO24HP230V1A GREE distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows. All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture.
  • Page 31 Complete product registration below and send back by e-mail at service@twclimate.com This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province. WSO021513-DLSWARR-HP – Rev. 3-8-13 © 2014 Gree Electric Appliance, Inc.
  • Page 32 Specifications in this booklet are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs without notice or without incurring obligations. All rights reserved. Version: V2.0 Cat No. RIO-2TPG © 2014 Gree Electric Appliance, Inc.
