Summary of Contents for Hilti SCM 18-A

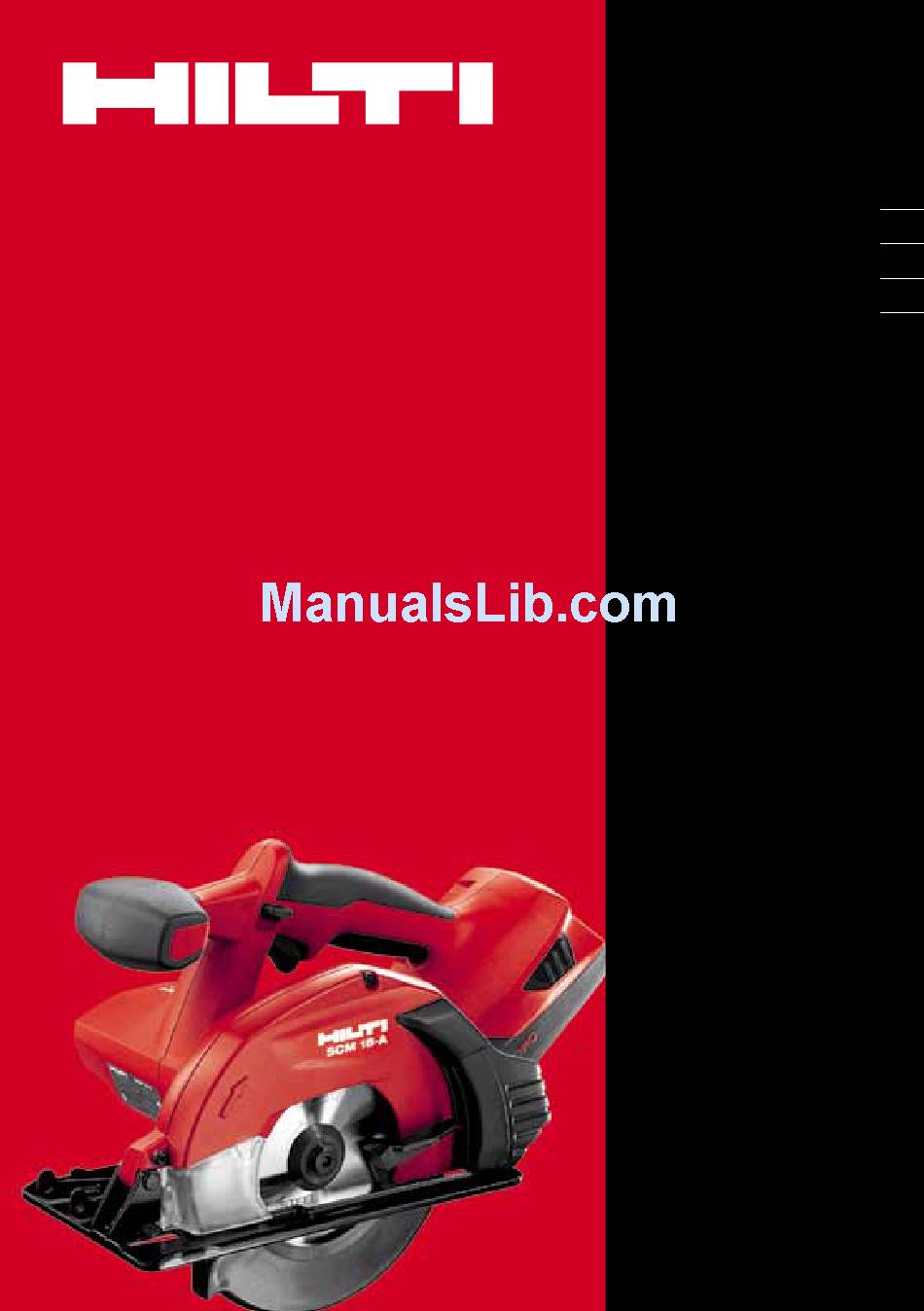

- Page 1 SCM 18-A Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções...
- Page 2 This Product is Certified Ce produit est homologué Producto homologado por Este produto está registrado C US...
-
Page 4: Table Of Contents
SCM 18-A cordless circular saw In these operating instructions, the designation “the It is essential that the operating instruc- power tool” always refers to the SCM 18-A cordless tions are read before the power tool is op- circular saw. erated for the first time. - Page 5 Warning signs Make a note of this data in your operating instructions and always refer to it when making an enquiry to your Hilti representative or service department. Type: General Warning:...
-
Page 6: Description
Do not use the battery as a power source for other unspecified appliances. To avoid the risk of injury, use only genuine Hilti accessories and insert tools. Observe the information printed in the operating instructions concerning operation, care and maintenance. -
Page 7: Insert Tools, Accessories
1 Power tool 1 Saw blade 1 Hexagon socket wrench 1 Operating instructions 1 Hilti toolbox (optional) 1 Cardboard box (optional) 1 Rip fence / parallel guide (optional) 2.9 Additional items required for operating the tool B18/2.6 Li‑ion or B18/3.3 Li‑ion battery and C4/36, C4/36‑ACS, C4/36‑90 or C4/36‑350 charger. -
Page 8: Safety Instructions
Power tool SCM 18‑A Dimensions (L x W x H) 370 mm (14.57") x 206 mm (8.11") x 242 mm (9.53") Base plate dimensions 248 mm (9.76") x 127 mm (5") Specified blade diameter 160…165 mm (6.3…6.5") Saw blade disc thickness 1.2 mm (0.05") Kerf width 1.6 mm (0.06") - Page 9 a cord suitable for outdoor use reduces the risk c) Disconnect the plug from the power source of electric shock. and/or the battery pack from the power tool f) If operating a power tool in a damp location before making any adjustments, changing ac- is unavoidable, use a residual current device cessories, or storing power tools.
- Page 10 5.1.6 Service if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the a) Have your power tool serviced by a qualified top surface of the wood causing the blade to climb repair person using only identical replacement out of the kerf and jump back toward the operator.
- Page 11 i) Do not work with the power tool overhead. 5.2.3 Safety instructions for Circular saw with j) Do not attempt to brake the speed of the saw pendulum guard blade by pressing it to the side. a) Check lower guard for proper closing before k) Do not touch the clamping flange or the clamp- each use.
- Page 12 Contact Hilti Service after the battery has presenting a risk of damage or malfunction. been allowed to cool.
-
Page 13: Before Use
Check that the battery is seated securely in the power tool. DANGER Only used the specified Hilti battery packs and Hilti 6.4 Removing the battery from the power tool battery chargers which are listed under "Acces- Press both battery release buttons. -
Page 14: Operation
the toolbox or transport container, or prevent these If you disconnect a battery from the power tool for items from coming into contact with the battery. transport or storage, make sure that the battery con- Observe national and international transport regula- tacts are not short-circuited. - Page 15 7.4 Sawing using the rip fence (accessory) 7.1.2 Fitting the saw blade 3 Use of the single arm rip fence allows precise cuts to Pull the battery out of the power tool. be made along the edge of the workpiece, or strips of Clean the mounting flange and the clamping even width to be cut.
-
Page 16: Care And Maintenance
8. Care and maintenance CAUTION Charge the battery with the Hilti charger approved for Before beginning cleaning, remove the battery from use with Li-ion batteries. the power tool in order to prevent unintentional NOTE starting. -
Page 17: Troubleshooting
The battery runs down more Battery condition is not optimal. Have battery condition diagnosed quickly than usual. by Hilti Service or replace with a new battery. The battery does not engage The retaining lugs on the battery Clean the retaining lugs and check with an audible double click. -
Page 18: Disposal
Dispose of the batteries in accordance with national regulations or return them to Hilti. Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling. - Page 19 Tel.: +423 / 234 21 11 Fax: +423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 4082 | 0312 | 00-Pos. 3 | 1 Printed in China © 2012 Right of technical and programme changes reserved S. E. & O.
