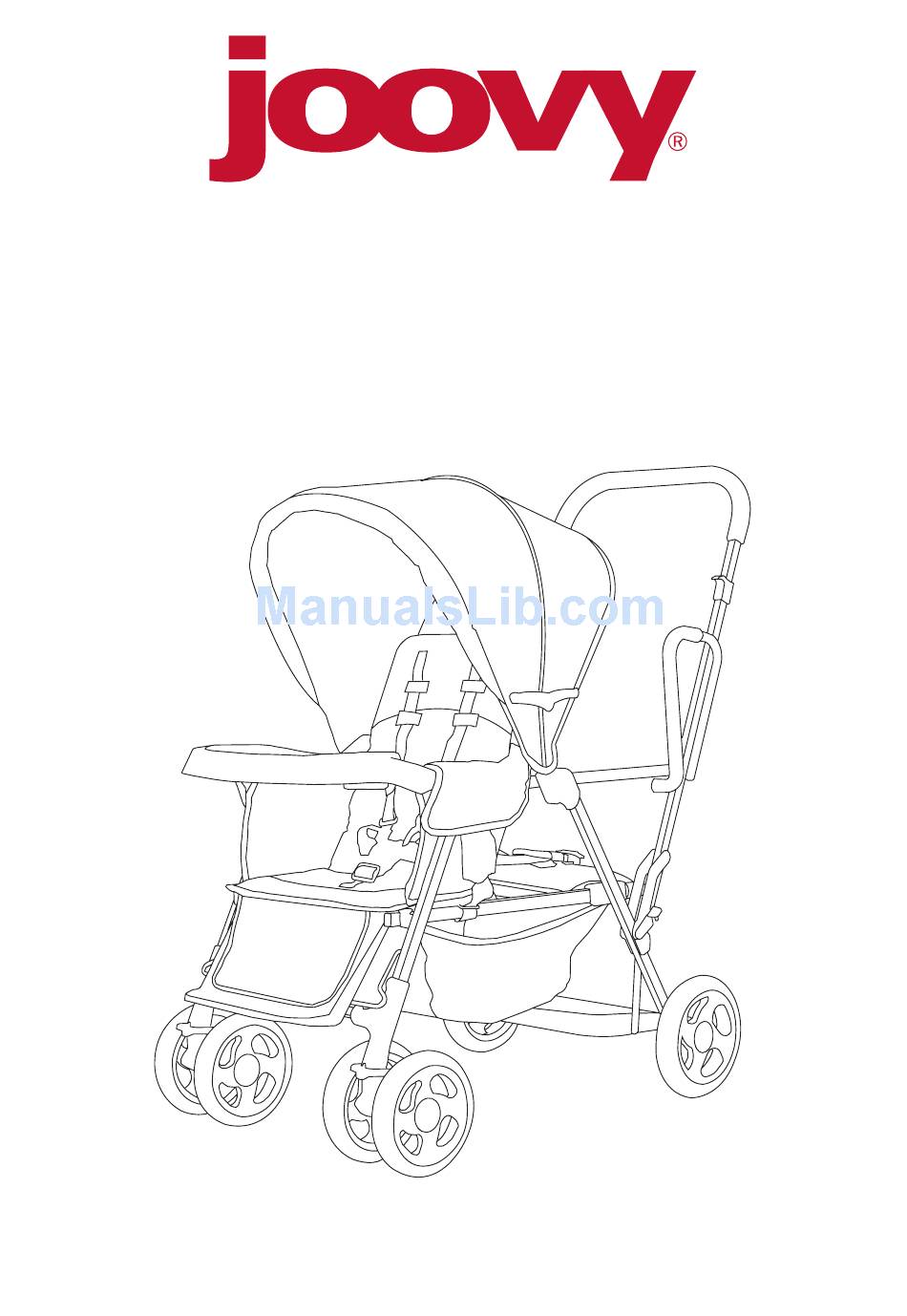

Caboose Stand-On Tandem
Instruction Manual
40X & 41X Series
Patent No. 5,622,375
Joovy • 2919 Canton Street • Dallas, TX 75226 • (877) 456-5049 • Fax: (214) 761-1774
Email: customerservice@joovy.com • Web Site: www.joovy.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Caboose Stand-On Tandem and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Joovy Caboose Stand-On Tandem

Summary of Contents for Joovy Caboose Stand-On Tandem

  • Page 1 Caboose Stand-On Tandem Instruction Manual 40X & 41X Series Patent No. 5,622,375 Joovy • 2919 Canton Street • Dallas, TX 75226 • (877) 456-5049 • Fax: (214) 761-1774 Email: customerservice@joovy.com • Web Site: www.joovy.com...
  • Page 2 • Never allow a child to step on the footrest to get into or out of the stroller. • Do not use the stroller on stairways or escalators. • The included parent organizer is for use ONLY on the Joovy Caboose stroller. DO NOT use it on other stroller models.

  • Page 3: Unpacking The Product

    Assembling and Using your Stroller To ensure safe operation of your stroller, please follow these instructions carefully. Unpacking the Product • Carefully remove stroller and all parts from the box and plastic bag. • Identify the parts (stroller, front wheels (2), rear wheels (2), canopy, tray, car seat carrier support, rear axle, small washer (4), snap pin (2), hub cap (2), and documents) with the pictures in Figures 1.

  • Page 4: Unfolding The Stroller

    Unfolding the Stroller • Keep children away from stroller while unfolding. • Position the stroller with the handle bar closest to you. • Release the locking latch located on the right side by lifting the lever off of the extended rivet. See Figure 2.

  • Page 5: Installing The Rear/Front Wheels

    Installing the Rear Wheels ReAR WheeL SeqUeNCe Please use the following component sequence that Step 1 indicates how all the parts for the rear wheel assembly Small Washer are installed. • Turn stroller upside down so that it rests on the handlebar.
  • Page 6 Front Wheel Locks The front wheels can be either in swivel mode or locked mode. • To put the front wheels in their locked mode, first rotate each wheel set so that the wheels are pointed straight ahead. • Pull up on the lever to engage the small tab on the lever with the slot in the plastic frame sleeve.
  • Page 7 Figure 8 Figure 9 WARNING Possible pinching hazard - Be careful when closing and opening the side hinges so as not to pinch your fingers. Attaching/Detaching the Front Tray • To attach the front tray, line up the female fittings on the tray with the male fittings on the front of the stroller and push inward until the fittings snap into place.

  • Page 8: Adjusting The Footrest

    Rear Wheel Brakes/Parking Device • Before placing any child into the stroller or removing them from the stroller, be certain that the rear wheel brakes are engaged. • To engage the rear wheel brakes, push down on the brake levers located on each rear wheel. See Figure 12.
  • Page 9 Securing the Front Seated Child • Ensure that both shoulder straps are attached to the waist strap buckles. See Figure 16. • Unlatch the waist/shoulder buckle by squeezing the latch releases on both sides of the buckle and removing the male ends of each buckle. •...

  • Page 10: Seatback Positioning

    Seatback Positioning The front seat has two positions. The fully upright position should only be used for a child that is at least 6 months old. • To place the seat in the upright position, push the bar on the rear of the seat toward the front of the stroller and rotate the seatback towards the front of the stroller until this bar is locked in its LOWEST position.

  • Page 11: Using The Rear Bench Seat

    Using the Rear Bench Seat • Push the bench seat to its most rearward position. NOTE: There are webbing straps attached to the bottom of the rear seat pad. These straps will lock the seat into the most rearward position. To lock the seat, pull the straps from EACH side of the pad and loop them around the frame as shown, then snap them together.

  • Page 12: Using As Infant Car Seat Carrier

    Using the Stroller as an Infant Car Seat Carrier • To use the stroller to carry an infant car seat carrier, you must replace the Front Tray with the Car Seat Carrier Support. • Remove the Front Tray by pressing in on the lock tabs and pulling the tray off the brackets.

  • Page 13: Important Note

    • Eddie Bauer® Infant Car Seat (models 22-625 and 22-626) For the most updated list of compatible infant car seats, please either check our website www.joovy.com or call our Customer Service Department at (877) 456-5049. WARNING ALWAYS install the infant carrier so that the child is facing toward the rear (handle) of the stroller with the restraining straps secured.

  • Page 14: Folding The Stroller

    Folding the Stroller • Keep children away from stroller while folding. • Remove any infant carrier that has been installed on the stroller. Note that the stroller can still be folded with the car seat carrier support in place. • Position the stroller with the handle bar closest to you.

  • Page 15: Maintenance

    Only original manufacturer’s components should be used. If needed, please contact Joovy at our toll-free phone number. Fabric fading may occur if the stroller is left in direct sunlight for long periods of time. When not in use, store the stroller out of direct sun.
  • Page 16 SATISFACTION GUARANTeeD We want you to be completely satisfied with your purchase of this product. Should you experience any difficulty in assembling or using this product, or if you have any questions, please contact our Customer Service Department at (877) 456-5049 between the hours of 8:30 am and 5:00 pm Central Time. Deluxe neoprene parent organizer 2 Cup holders Zippered pocket...
  • Page 17 Please log onto www.joovy.com to register your new Joovy product. Look for these other Joovy products Caboose Ultralight Instruction Manual Page 16...
  • Page 18 Caboose Ultralight Instruction Manual Page 17...
  • Page 19 Caboose Ultralight Instruction Manual Page 18...
  • Page 20 Joovy • 2919 Canton Street • Dallas, TX 75226 • (877) 456-5049 • Fax: (214) 761-1774 Email: customerservice@joovy.com • Web Site: www.joovy.com ©Joovy 2011 • Document Version 092011...
