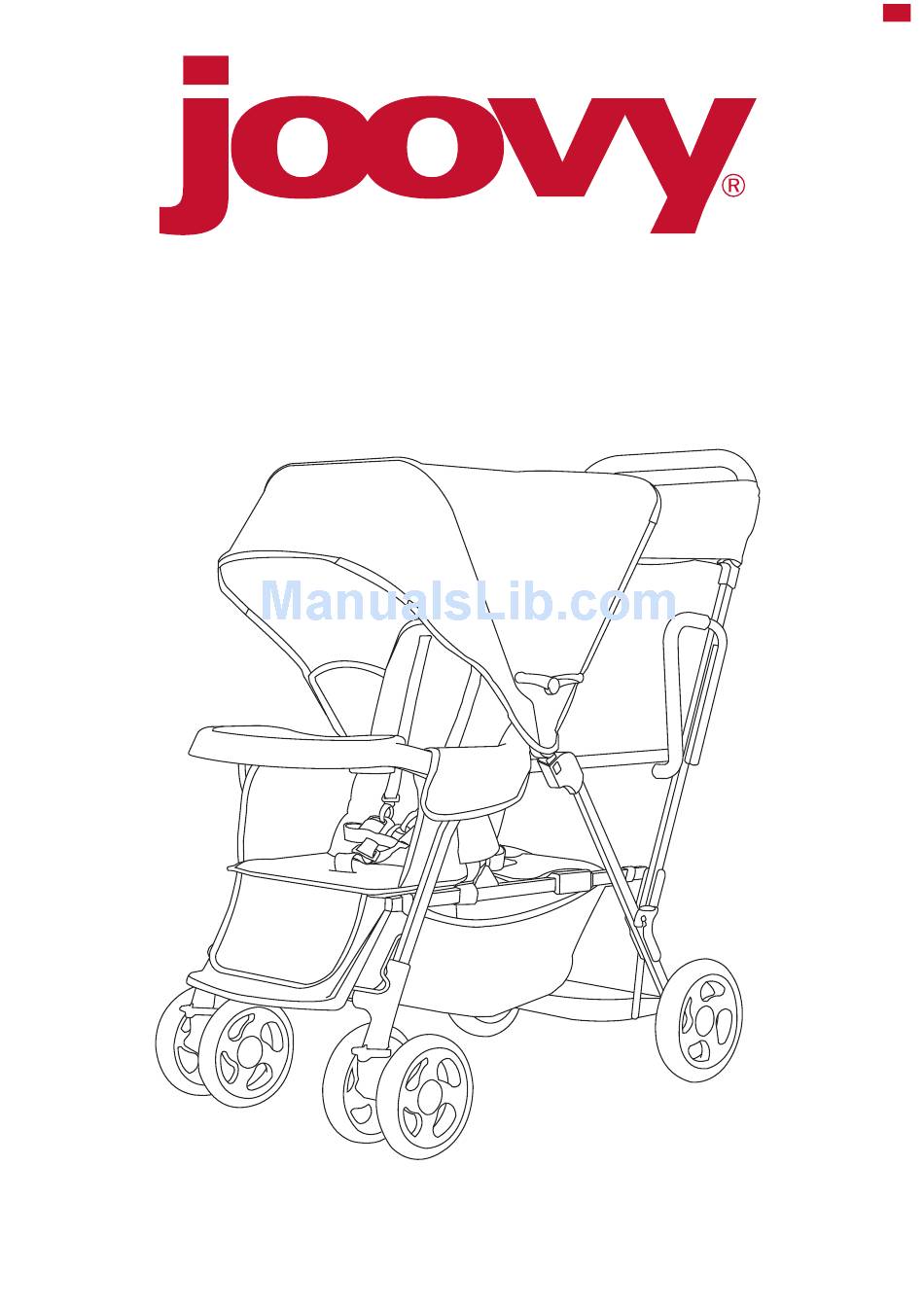

- Page 1 Caboose Too Ultralight 0087X ©joovy 2013 • Document Version 110613 Joovy • 2919 Canton Street • Dallas, TX 75226 • (877) 456-5049 • Fax (214) 761-1774 • Email: customerservice@joovy.com • Website: www.joovy.com...
-
Page 2: Unpacking The Product
• Never allow a child to step on the footrest to get into or out of the stroller. • Do not use the stroller on stairways or escalators. • Do not add any attachment not specifically recommended by Joovy. • Any load attached to the handle affects the stability of the stroller. Hanging purses, shopping bags, parcels, changing bags or other accessory items from handle bars or any other parts of the stroller may change the balance of the stroller and cause a hazardous unstable condition. -
Page 3: Installing Front Wheels
3 Installing Rear Wheels • Turn stroller upside down. • Insert the rear axle through both holes under the stand-on platform. See Figure 3.1. • Install the parts in the following order. See Figure 3.2. Small washer Wheel (brake cluster facing inward) Large washer Spring washer Large washer... -
Page 4: Adjusting The Footrest
9 Adjusting the Footrest The footrest can be adjusted fully up or down. • To lock the footrest upright, pull up on the footrest and lift up on the support bar. Ensure it is locked in place. See Figure 9.1. •... -
Page 5: Storage Basket
13 Using the Rear Bench Seat • Push the bench seat to its most rearward position. NOTE: There are webbing straps attached to the bottom of the rear seat pad. These straps will lock the seat into the most rearward position. To lock the seat, pull the straps from EACH side of the pad and loop them around the frame as shown, then snap them together. -
Page 6: Folding The Stroller
18 Removing the Caboose Too Rear Seat • Unsnap the waist and shoulder straps from the crotch strap. Leave the crotch strap in place to use with the stroller rear bench seat. • Unwrap the left and right armrests of the Caboose Too Rear Seat from around the upper horizontal frame (on each side). Unsnap both snaps on each side. -
Page 7: Maintenance
Any missing, broken, or worn components should be replaced immediately, and the stroller should not be used until they are replaced. Only original manufacturer’s components should be used. If needed, please contact Joovy at our toll-free phone number. Cleaning The fabric material on this stroller can be cleaned using mild household soap or detergent and warm water on a sponge or clean cloth. - Page 8 Joovy • 2919 Canton Street • Dallas, TX 75226 • (877) 456-5049 • Fax (214) 761-1774 • Email: customerservice@joovy.com • Website: www.joovy.com...
- Page 10 10.1 10.2 10.5 10.6 10.3 10.4 10.7 11.1 16.2 16.3 13.1 13.2 15.1 16.1 16.4 16.5 16.6 17.1 18.2 18.3 17.2 18.1 18.4 18.5 19.1 20.1 21.2 21.3 20.2 21.1 21.4 22.1...
