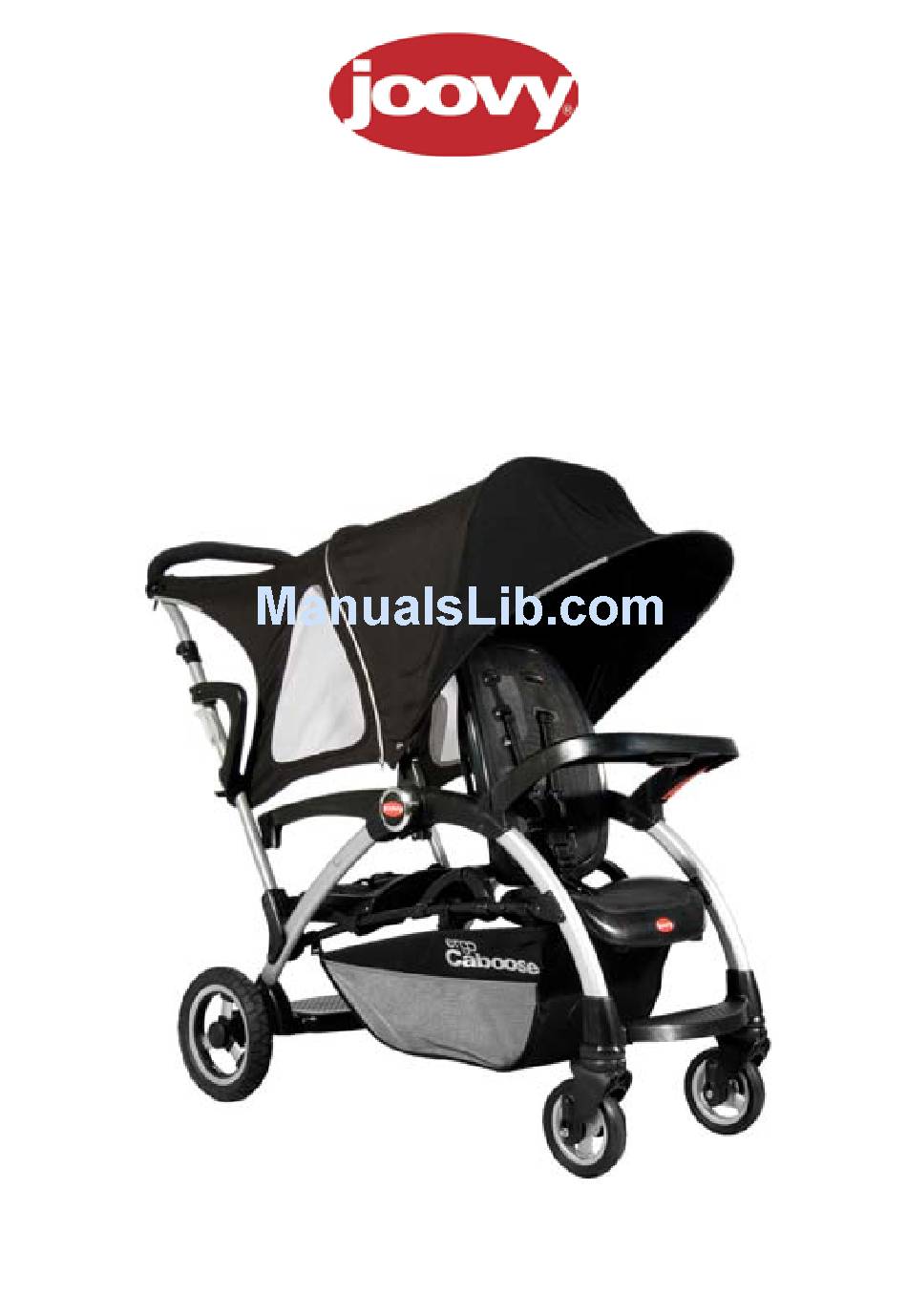

- Page 1 Ergo Caboose Instruction Manual 42X Series Patent No. 5,622,375 Joovy • 2919 Canton Street • Dallas, TX 75226 • (877) 456-5049 • Fax: (214) 761-1774 E-mail: customerservice@joovy.com • Website: www.joovy.com...
- Page 2 WARNINGS Please read this instruction manual completely before using this stroller. Keep these instructions for future reference. • Failure to follow these instructions could result in serious injury or death. • Never leave child unattended. • Avoid serious injury from falling or sliding out. •...
-
Page 3: Unpacking The Product
Assembling and Using your Stroller To ensure safe operation of your stroller, please follow these instructions carefully. Unpacking the Product • Carefully remove stroller and all parts from the box and plastic bag. • Identify the parts (stroller, 2 front wheels, 2 rear wheels, tire pump (attached in the basket), canopy, tray, 2 cupholder attachments, car seat carrier sup- port, and documents) with the pictures in Figure 1. - Page 4 Installing/Removing the Rear Wheels • To install, take one rear wheel and insert it into the hub at the outside rear of the stroller until an audible click is heard. See Figure 4. • Pull outward on the wheel to ensure it is installed properly.
- Page 5 Installing and Operating the Canopy • To attach the canopy, position the canopy on the stroller with the visor extension forward. • Line up the male fittings on the canopy with the female fittings just above the hub near the center of the stroller and push downward until the fittings snap into place.
- Page 6 Installing and Operating the Front Tray • To attach the front tray, orient the stroller so that you are facing the front seat. • Align the slide lock on the left side of the tray with the circular fitting on the left side of the stroller, and slide the tray down over this fitting until you hear an audible click that indicates it is locked into place.
- Page 7 Using the Cupholders with your Stroller There are two cupholders that come with your Ergo Caboose. • Remove front tray. See Page 5. • To attach the left cupholder first locate the cupholder with the circular fitting. See Figure 18. •...
-
Page 8: Rear Wheel Brakes
Rear Wheel Brakes • Your stroller is equipped with a linked braking system. Before placing any child into the stroller or removing them from the stroller, be certain that the rear wheel brakes are engaged. • To engage the rear wheel brakes, push down on a brake lever located near either rear wheel. - Page 9 Securing the Front Seated Child NOTE: There are three height adjustment positions for the shoulder harness straps. For a younger child, the shoulder harness straps should be posi- tioned through the lower opening. For a taller child, the shoulder straps should be positioned through the center or top openings to ensure a good fit.
- Page 10 Seat Back Positioning The seat back has two positions. The fully upright position should only be used for a child that is at least 6 months old. • To recline the seat, squeeze the adjustment mecha- nism on the top rear of the seat back and rotate the seat rearward until it locks into place.
-
Page 11: Storage Basket
Using the Rear Bench Seat If using the rear bench seat, you must first remove the car seat carrier support if in use. See page 14. • To use the bench seat, first gently pull up on the seat to be sure it is locked into place on the tubing. •... -
Page 12: Folding The Stroller
Tire Pump The tire pump is secured inside the storage basket. • To use the tire pump, pull out the air tube from one end of the air pump (Figure 33) and screw it snugly into the opposite end of the pump body (Figure 34). •... - Page 13 Using the Stroller as an Infant Car Seat Carrier Support • Locate the car seat carrier support and orient it with the curve of the tubing facing downward. See Figure • Insert each end of the tubing into the rear of each child handle until BOTH spring snaps lock securely Figure 37 into place with an audible click.
-
Page 14: Important Note
• Peg Perego® Primo Viaggio SIP • Compass® Light and Portable Infant Car Seat For the most updated list of compatible infant car seats, please either check our website at www.joovy.com or call our Customer Service Department at (877) 456-5049. CORRECT AT CORRECT... -
Page 15: Maintenance
Only original manufac- turer’s components should be used. If needed, please contact Joovy at our toll-free phone number. Cleaning The fabric material on this stroller can be cleaned us- ing mild household soap or detergent and warm water on a sponge or clean cloth. - Page 16 Accessories Rain/Wind Cover Parent Organizer 2 cup holders & storage Adds protection for front and rear child. Stroller Travel Bag Deluxe Seat Covers Custom fitted and padded roller bag. Front & back seat covers made of deluxe t fabric. Deluxe Fleece Package Sun Filter Fleece Canopy and front seat cover.
- Page 17 - Please contact our Customer Service Department at (877) 456-5049 between the hours of 8:30 am and 5:00 pm Central Time. Please log onto www.joovy.com to register your new Joovy product. Pg. 16 Ergo Caboose Instruction Manual...
- Page 18 Look for these other Joovy products Pg. 17 Ergo Caboose Instruction Manual...
- Page 19 Ergo Caboose Instruction Manual Pg. 18...
- Page 20 Joovy • 2919 Canton Street • Dallas, TX 75226 • (877) 456-5049 • Fax: (214) 761-1774 E-mail: customerservice@joovy.com • Website: www.joovy.com ©Joovy 2008 • Document Version 102808...
