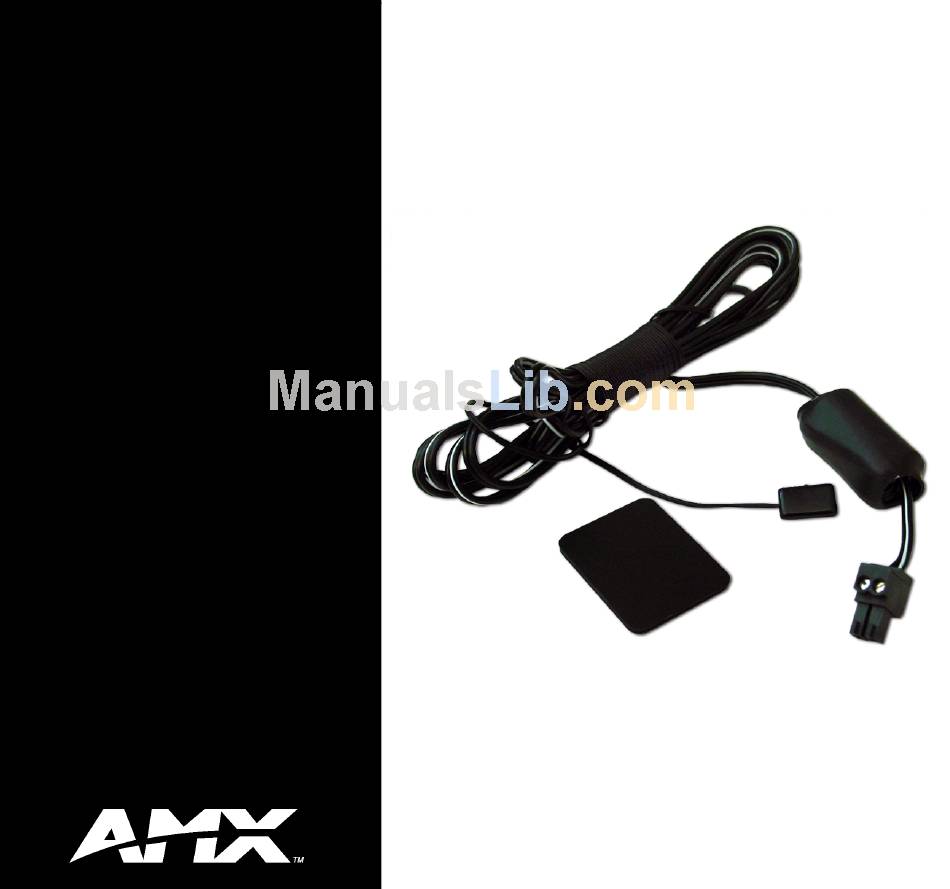

- Page 1 CC-IRC Infrared Emitter Control System Accessories...

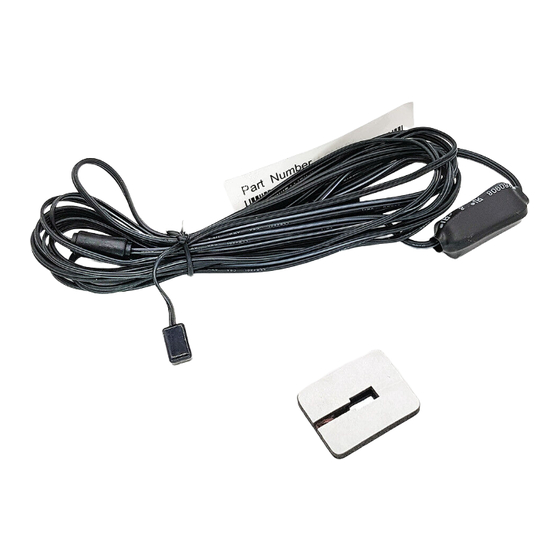

- Page 2 CC-IRC IR Emitter Overview The IR Emitter adheres directly to the IR control window of your equipment by using clear two-sided tape to securely adhere the opaque shield. This “standard configuration” allows you to control your equipment either from either IR emitters or a hand-held remote control. The two black adhesive-backed window shields (Figure 3) are included within each emitter package and allow for alternate configurations.
- Page 3 Pass-Through Configurations This method allows IR signals generated from hand-held remotes to easily pass through the opaque red shell/cover. The internal IR LED can be oriented to either face towards or away from the shell (Figure 1), depending on its output configuration. Use the low-output configuration when device is being saturated by an IR signal.
- Page 4 Removing the Factory-Installed Shell The factory-installed shell is easily removed by carefully separating the two halves with a sharp-edged tool, such as an X-Acto™ knife. The IR LED can then be reversed or removed when the shell is Figure 2 separated.
- Page 5 Shielded Configuration Use this configuration to prevent interference from fluorescent lights or other IR sources. The metallic shield prohibits passage of external IR signals and ensures proper IR signals will be received from the emitter. Remove the IR LED from the factory-installed shell (Figure 2). Test fit the location and size of the IR shield (Figure 3) on the target device.
- Page 6 Cable Assembly IR Input Control Window (on device) IR Emitter Shield IR Emitter Controlled Equipment Figure 4 (DVD, CDP, VCR, etc.)
- Page 7 AMX Corporation is not liable for any claim made by a third party or by an AMX Dealer for a third party. This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim.
- Page 8 ©2006 AMX Corporation. All Rights Reserved. All rights reserved. AMX, the AMX logo, the building icon, the home icon, and the light bulb icon are all trademarks of AMX Corporation. AMX reserves the right to alter specifications without notice at any time.
