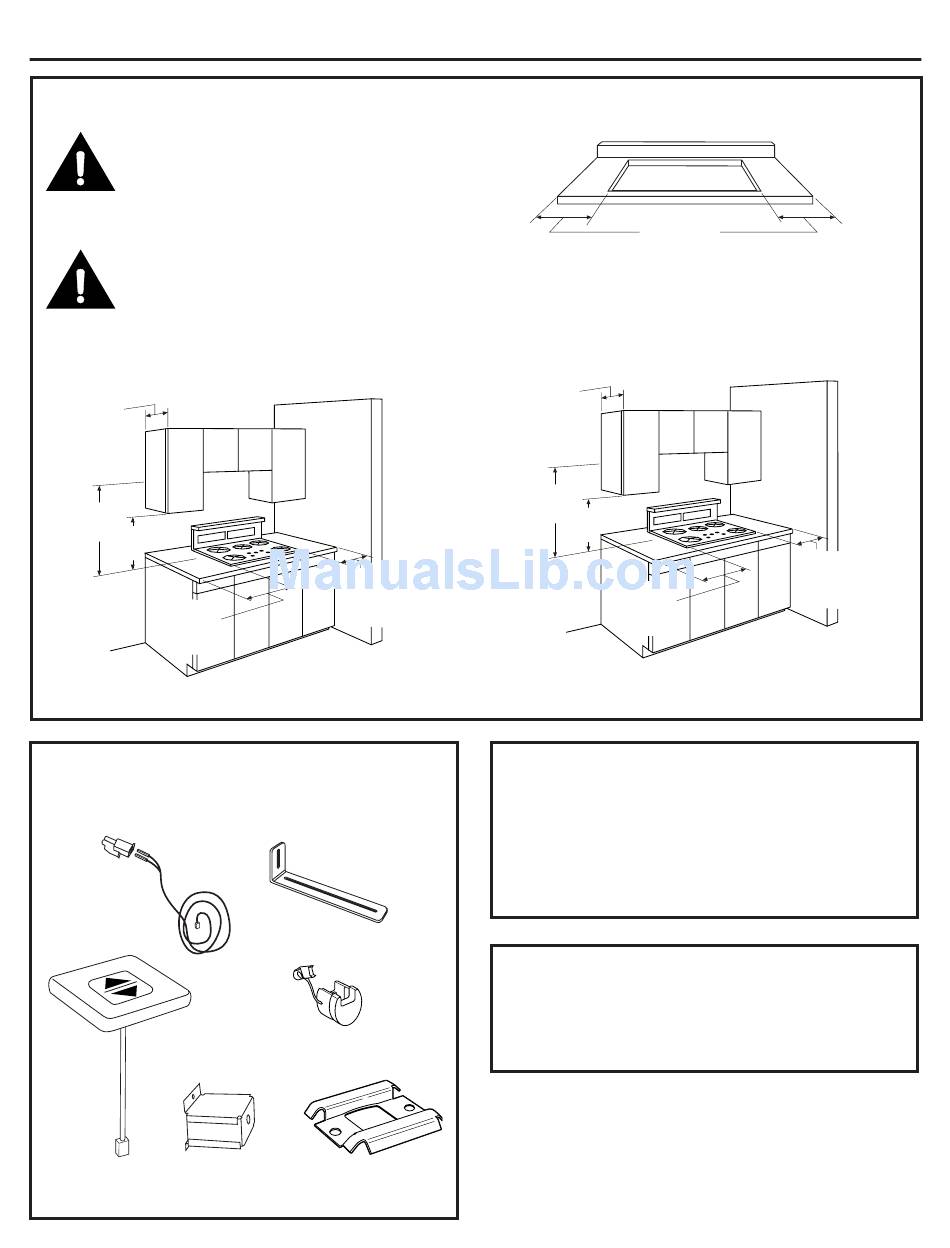

CLEARANCES

CAUTION
Wall coverings, countertops and cabinets should
withstand 200° heat generated by any cooktop.
PRUDENCE
Les revêtements muraux, les dessus de comptoir et
les armoires de cuisine doivent résister à la
température de 95 ºC (200 ºF) créée par toute table
de cuisson.
13"
Max.
30"
Min. 18"
Min.
2" Min. to
Wall When
Installed
Electric Cooktop Clearances When Installed

PARTS SUPPLIED

Open the carton and remove parts package.
Check contents to be sure all pieces are present.
1 Wire and
white
connector
1 Switch
2 Wire boxes
Cover Plate
and screws
Installation Preparation
2" Min. to
Wall When
Installed
4 Stabilizing Brackets
2 Plastic Strain Reliefs
1 Attachment
Bracket
Gas - 6" to 11-9/16"
Electric - 2"
Clearance to Side Walls
13"
Max.
30"
Min. 18"
Min.
8" Min. to
Wall When
Installed
Gas Cooktop Clearances When Installed

TOOLS AND MATERIALS REQUIRED

• Large flat-blade screwdriver.
• Jig saw
• Carpenter's square
• Ductwork to suit the installation

REMOVE PACKAGING

• Remove the shipping materials and the carton, set
carton aside. The carton can be used as a pad when
changing or adjusting vent direction.
9
8" Min. to
Wall When
Installed
