VENTING OPTIONS

• The downdraft vent is shipped with the
discharge outlet pointing straight down and
can be changed to the left or right side.
• The blower outlet is sized for 3-1/4" x 10"
and can be transitioned to 6" round.

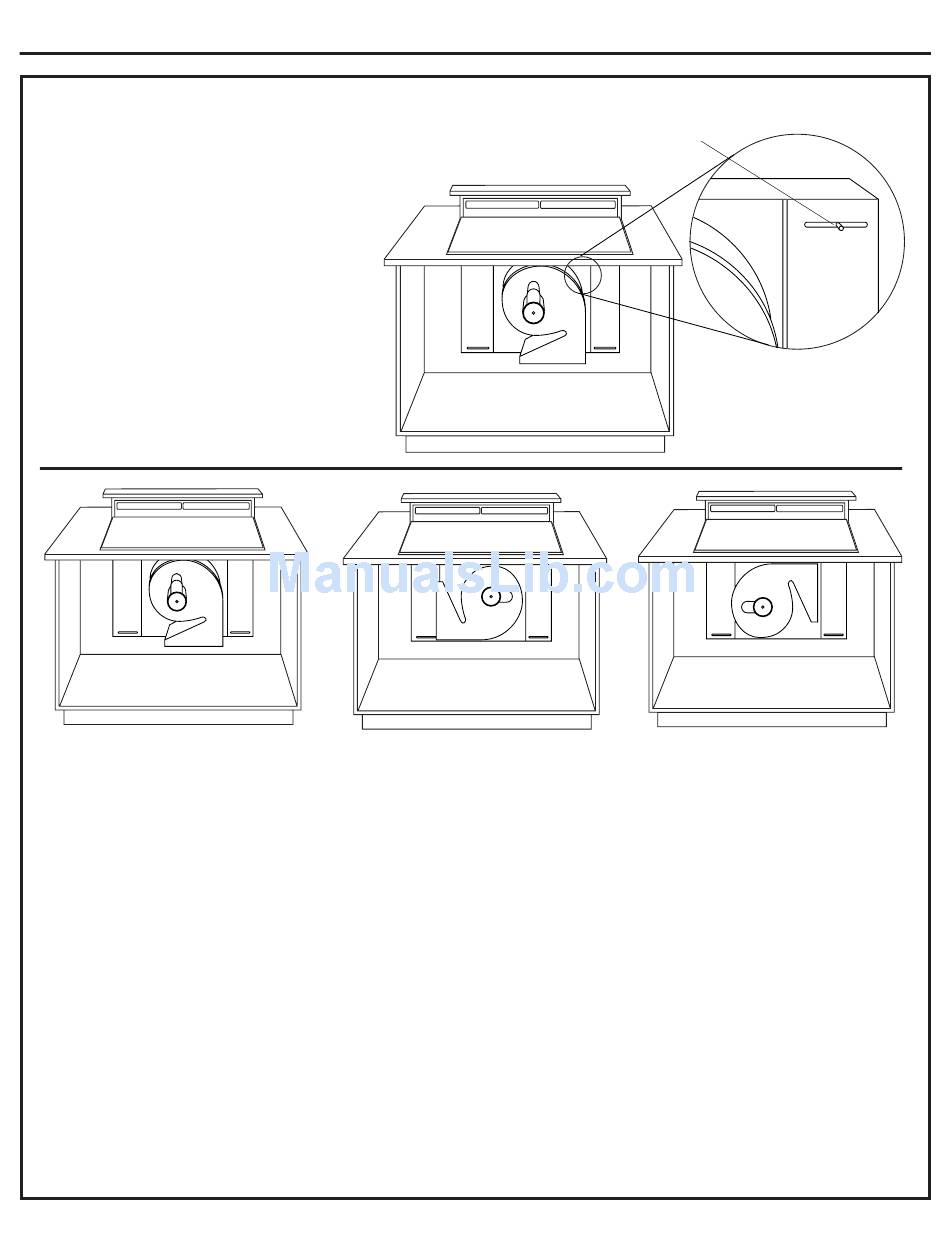

Side to side adjustments:
The entire blower mounting plate can be
adjusted 3-1/2" to the left or right. This will
help to align vent discharge to house
ductwork.
Discharge Down
(As Supplied)
Discharge direction
The blower assembly may be removed and turned
90° for a left or right side discharge.
• A left or right 90° direction adjustment should be
performed before dropping into the countertop
opening.
• Flatten the shipping box to use as a pad.
• Lay the vent on its back and onto the pad.
To change to a left or right discharge:
• Remove the 4 screws holding the blower to the
mounting plate assembly. Retain screws.
• Remove blower assembly, turn it over to access the
4 nuts holding the blower to the mounting plate.
Remove the nuts.
IMPORTANT:
Do not lift motor by power cable.
• Turn the blower to left or right discharge direction
and reinstall the 4 nuts.
• Reinstall blower and mounting plate with original
screws.
Installation Preparation
Discharge Left
11
Loosen Screws
to Adjust
3-1/2" to
Left or Right
To locate the ductwork holes in the
cabinet floor or side walls:
• Temporarily, place vent into the countertop opening.
• Push the vent all the way to the back of the opening.
• If you are transitioning to 6" round (obtained
locally), place transition piece over the discharge
outlet.
• Mark the location and remove the assembly.
• Cut holes and install ductwork connections.
• Order JXRB67 for installation of the blower and
motor below the floor.
• Order JXBC67 for installation of the blower and
motor outdoors.
Discharge Right
