POWER SUPPLY

WARNING
FOR PERSONAL SAFETY:
Remove house fuse or open
circuit breaker before beginning
installation.
Do not use an extension cord or
adapter plug with this appliance. Follow National
electrical codes or prevailing local codes and ordi-
nances.
AVERTISSEMENT
SÉCURITÉ
Enlever le fusible ou déclencher le
disjoncteur du panneau de la
maison avant de commencer
l'installation.
Ne pas utiliser de rallonge ni d'adaptateur de prise de
courant avec cet appareil. Il faut respecter les codes
nationaux de l'électricité et les réglementations ou
codes locaux.
This downdraft vent must be supplied with 120V, 60Hz.,
and connected to an individual, properly grounded
branch circuit, protected by a 15 or 20 ampere circuit
breaker or time delay fuse.
Gas Cooktops
If this vent is installed in combination with a
Monogram gas cooktop, it may operate from the same
duplex outlet.
Electric Cooktops
If this vent is installed in combination with a
Monogram electric cooktop, the vent must operate
from a separate 120V outlet.
• A properly grounded 3-prong receptacle should be
located within reach of the vents' two foot power
cord.

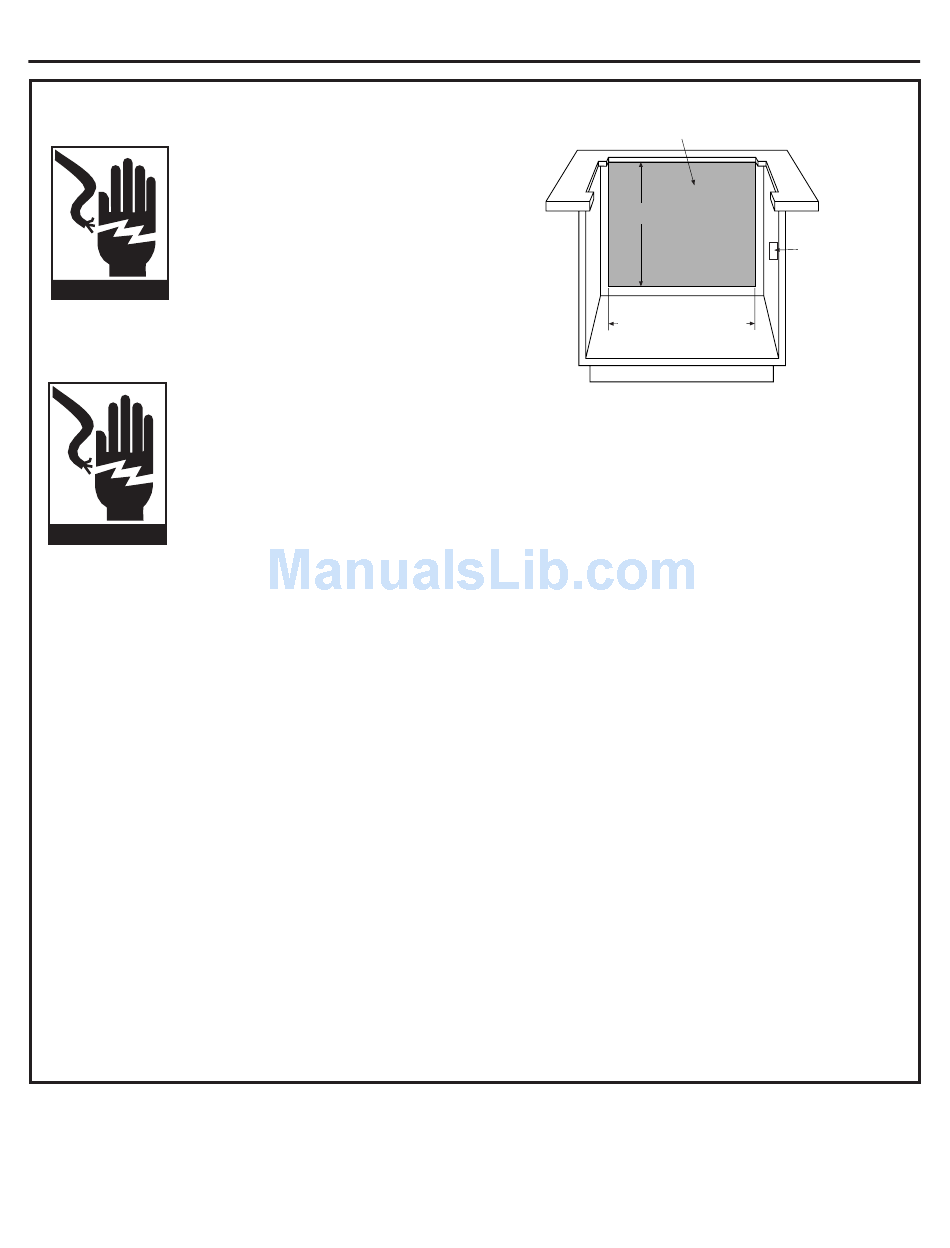

• Locate the receptacle inside the cabinet on the right
side wall. The receptacle cannot be placed on the
back of the cabinet wall where it may interfere with
the downdraft plenum. See illustration.
Installation Preparation
10
Do Not Locate Gas or Electrical
Connections Within Shaded Area
29-1/2"
34" for 36" Models
28-1/2" for 30" Models
IMPORTANT
(Please read carefully).
The power cord of this appliance is equipped with a
three-prong (grounding) plug which mates with a
standard three-prong grounding wall receptacle to
minimize the possibility of electric shock. The
customer should have the wall receptacle and
circuit checked by a qualified electrician to make
sure the receptacle is properly grounded and has
correct polarity.
• Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and
obligation of the customer to have it replaced with
a properly grounded three-prong wall receptacle.
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
DO NOT USE AN EXTENSION CORD.
Electrical
Outlet
12" Above
Cabinet Floor
