Venting Options - GE Monogram ZVB30BN Dimensions And Installation Information

ZVB30SN/BN
GE Monogram
Dimensions and Installation Information (in inches)
Electrical and Gas Locations
Plan the placement of the electrical outlet and gas (if used)
carefully. Gas or electrical outlets cannot be located on the
back wall of the cabinet because they may interfere with the
downdraft plenum.
• Install a standard electrical outlet within reach of the
vent's two-foot-long power cord. Locate the outlet inside
the cabinet on the right side wall.
• If the vent is installed in combination with a Monogram
gas cooktop, it may operate from the same 120V standard
duplex outlet.
• If the vent is installed in combination with a Monogram
electric cooktop, the vent must operate from a separate
120V outlet.
Do Not Locate Gas or Electrical
Connections Within Shaded Area
29-1/2"
34" for 36" Models
28-1/2" for 30" Models
682Dia47
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
30" Telescopic Downdraft Vents
®
Electrical
Outlet
12" Above
Cabinet Floor
GE Profile or
® ™
service,
®

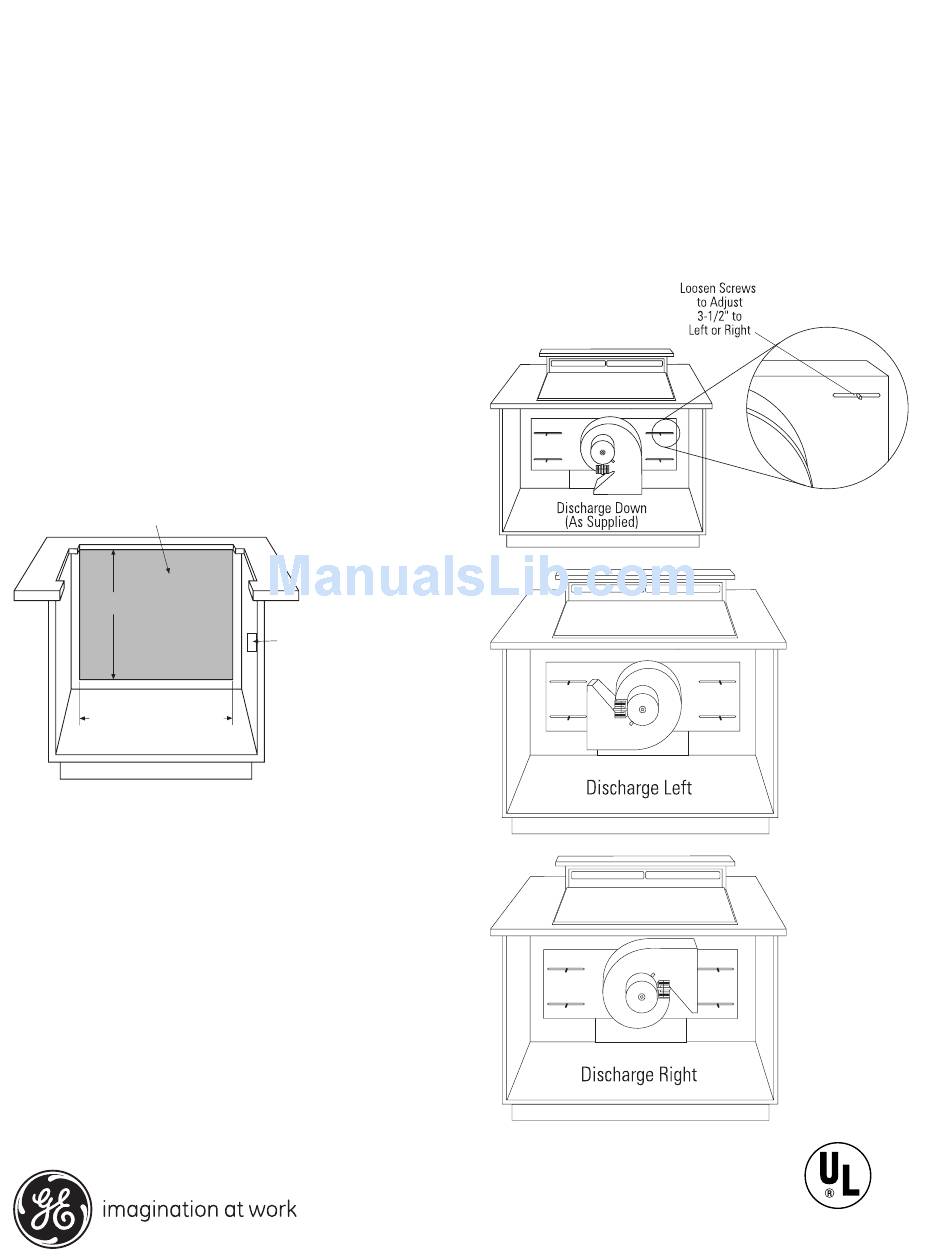

Venting Options

The downdraft vent is shipped with the discharge outlet
pointing straight down and can be changed to a left- or
right-side discharge. For even more flexibility, the entire
blower and mounting plate can be adjusted 3-1/2" to the
left or right sides.
®
Specification Created 11/08
