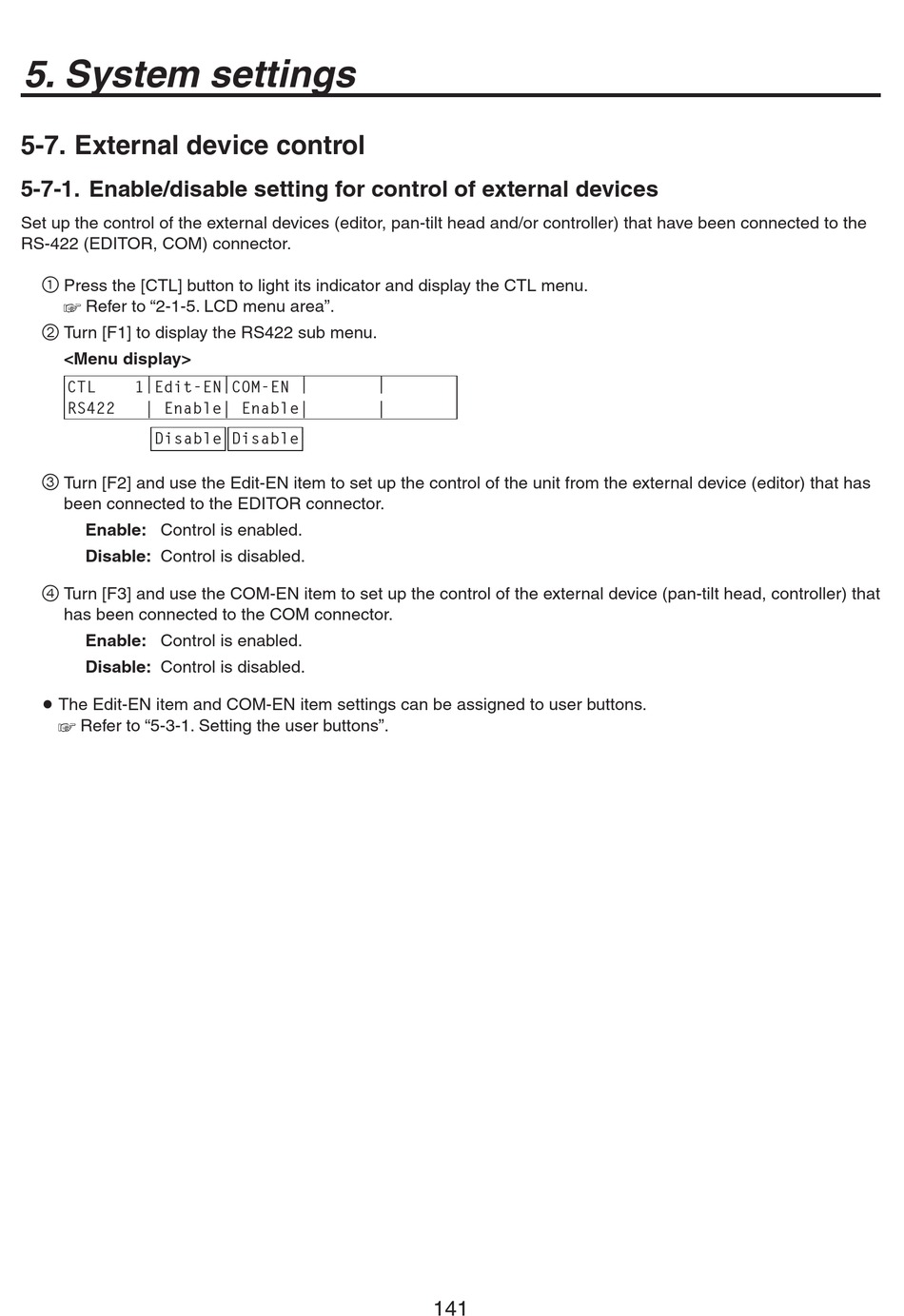

5. System settings

5-7. External device control

5-7-1. Enable/disable setting for control of external devices

Set up the control of the external devices (editor, pan-tilt head and/or controller) that have been connected to the
RS-422 (EDITOR, COM) connector.
 Press the [CTL] button to light its indicator and display the CTL menu.
 Refer to "2-1-5. LCD menu area".
 Turn [F1] to display the RS422 sub menu.
<Menu display>
1 | Edit-EN | COM-EN |
CTL
RS422 | Enable| Enable|
Disable Disable
 Turn [F2] and use the Edit-EN item to set up the control of the unit from the external device (editor) that has
been connected to the EDITOR connector.
Enable: Control is enabled.
Disable: Control is disabled.
 Turn [F3] and use the COM-EN item to set up the control of the external device (pan-tilt head, controller) that
has been connected to the COM connector.
Enable: Control is enabled.
Disable: Control is disabled.
 The Edit-EN item and COM-EN item settings can be assigned to user buttons.
 Refer to "5-3-1. Setting the user buttons".
|
|
141
