Panasonic AV-HS450E Operating Instructions Manual page 163

7. Image transmission functions

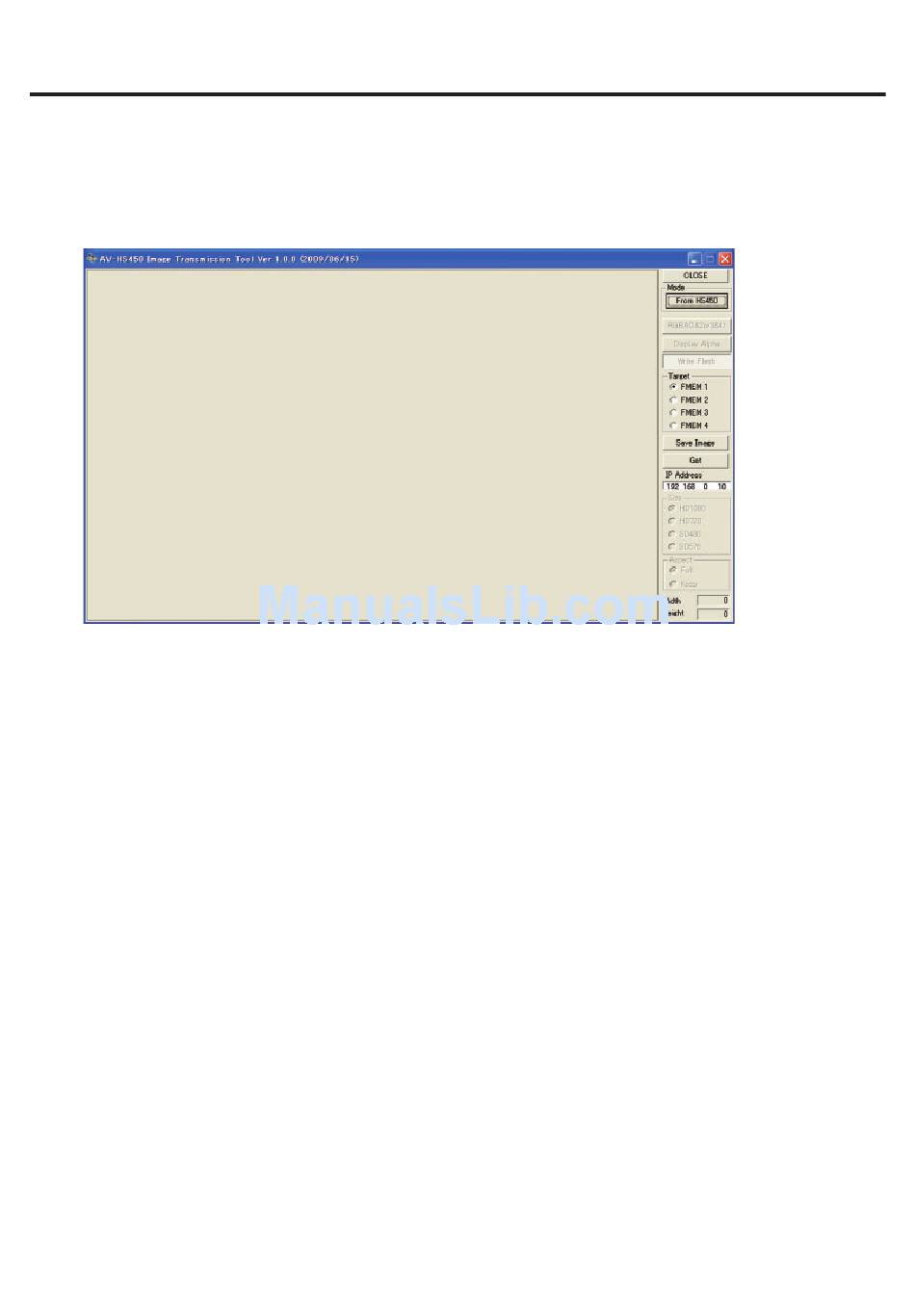

<Transmitting images from the unit>
1. Select the mode.
Check that [From HS450] appears in the [Mode] field.
If [To HS450] appears instead, click the [To HS450] button so that [From HS450] appears.
2. Select the images to be imported to the host computer in the [Target] field.
FMEM1: Images in unit's frame memory 1
FMEM2: Images in unit's frame memory 2
FMEM3: Images in unit's frame memory 3
FMEM4: Images in unit's frame memory 4
3. When the [Get] button is clicked, the image is imported from the unit.
The image is now displayed in the image display area, and its horizontal and vertical dimensions appear in
the Width and Height fields at the bottom right.
4. When the [Save Image] button is clicked, the file save dialogue box appears on the screen.
Select the image file to be transmitted, and click [Save].
163
