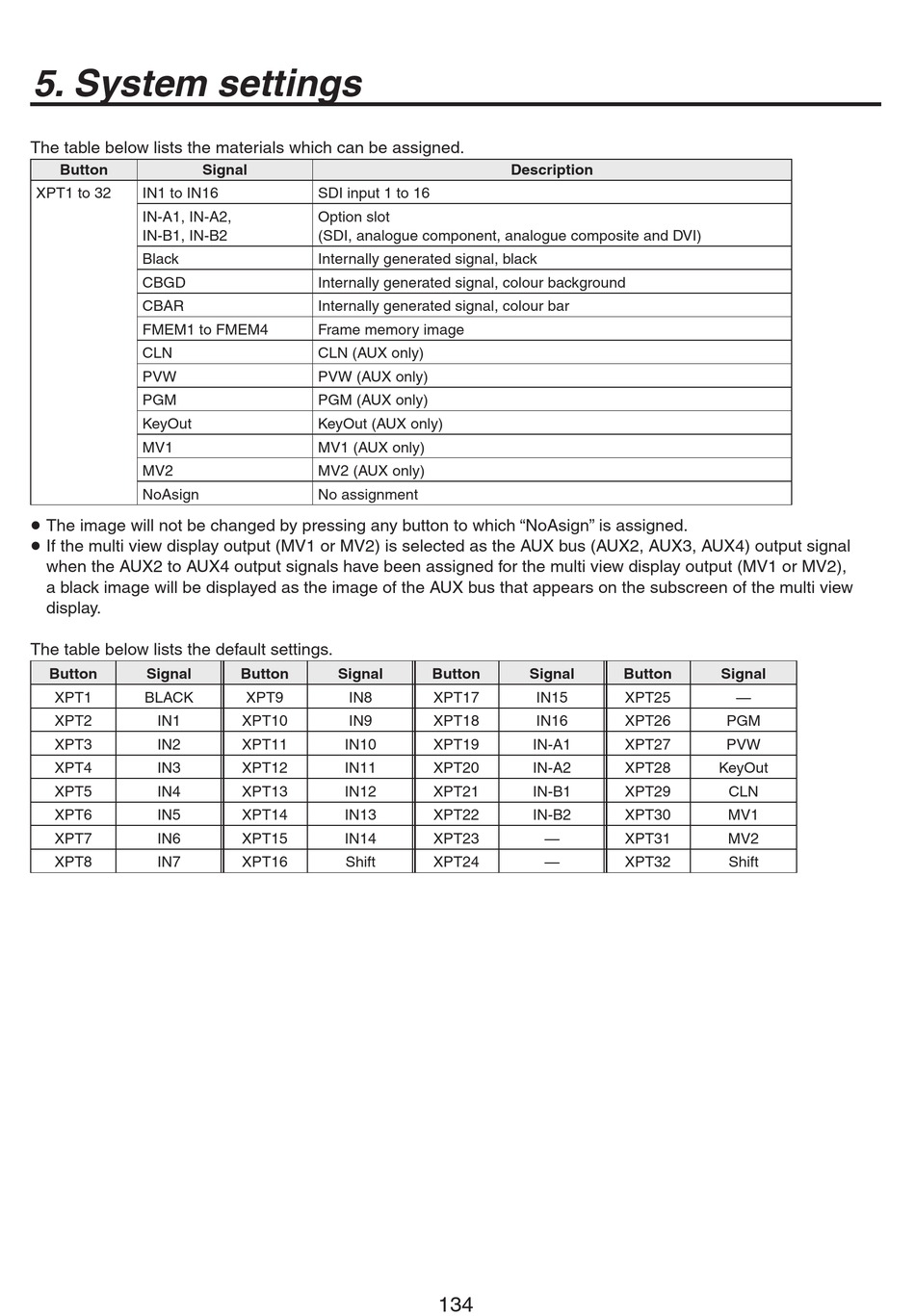

5. System settings
The table below lists the materials which can be assigned.
Button Signal
XPT1 to 32 IN1 to IN16
IN-A1, IN-A2,
IN-B1, IN-B2
Black
CBGD
CBAR
FMEM1 to FMEM4
CLN
PVW
PGM
KeyOut
MV1
MV2
NoAsign
 The image will not be changed by pressing any button to which "NoAsign" is assigned.
 If the multi view display output (MV1 or MV2) is selected as the AUX bus (AUX2, AUX3, AUX4) output signal
when the AUX2 to AUX4 output signals have been assigned for the multi view display output (MV1 or MV2),
a black image will be displayed as the image of the AUX bus that appears on the subscreen of the multi view
display.
The table below lists the default settings.
Button Signal
XPT1 BLACK
XPT2 IN1
XPT3 IN2
XPT4 IN3
XPT5 IN4
XPT6 IN5
XPT7 IN6
XPT8 IN7
SDI input 1 to 16
Option slot
(SDI, analogue component, analogue composite and DVI)
Internally generated signal, black
Internally generated signal, colour background
Internally generated signal, colour bar
Frame memory image
CLN (AUX only)
PVW (AUX only)
PGM (AUX only)
KeyOut (AUX only)
MV1 (AUX only)
MV2 (AUX only)
No assignment
Button Signal
XPT9 IN8
XPT10 IN9
XPT11 IN10
XPT12 IN11
XPT13 IN12
XPT14 IN13
XPT15 IN14
XPT16 Shift
Description
Button Signal
XPT17 IN15
XPT18 IN16
XPT19 IN-A1
XPT20 IN-A2
XPT21 IN-B1
XPT22 IN-B2
XPT23 —
XPT24 —
134
Button Signal
XPT25 —
XPT26 PGM
XPT27 PVW
XPT28 KeyOut
XPT29 CLN
XPT30 MV1
XPT31 MV2
XPT32 Shift
