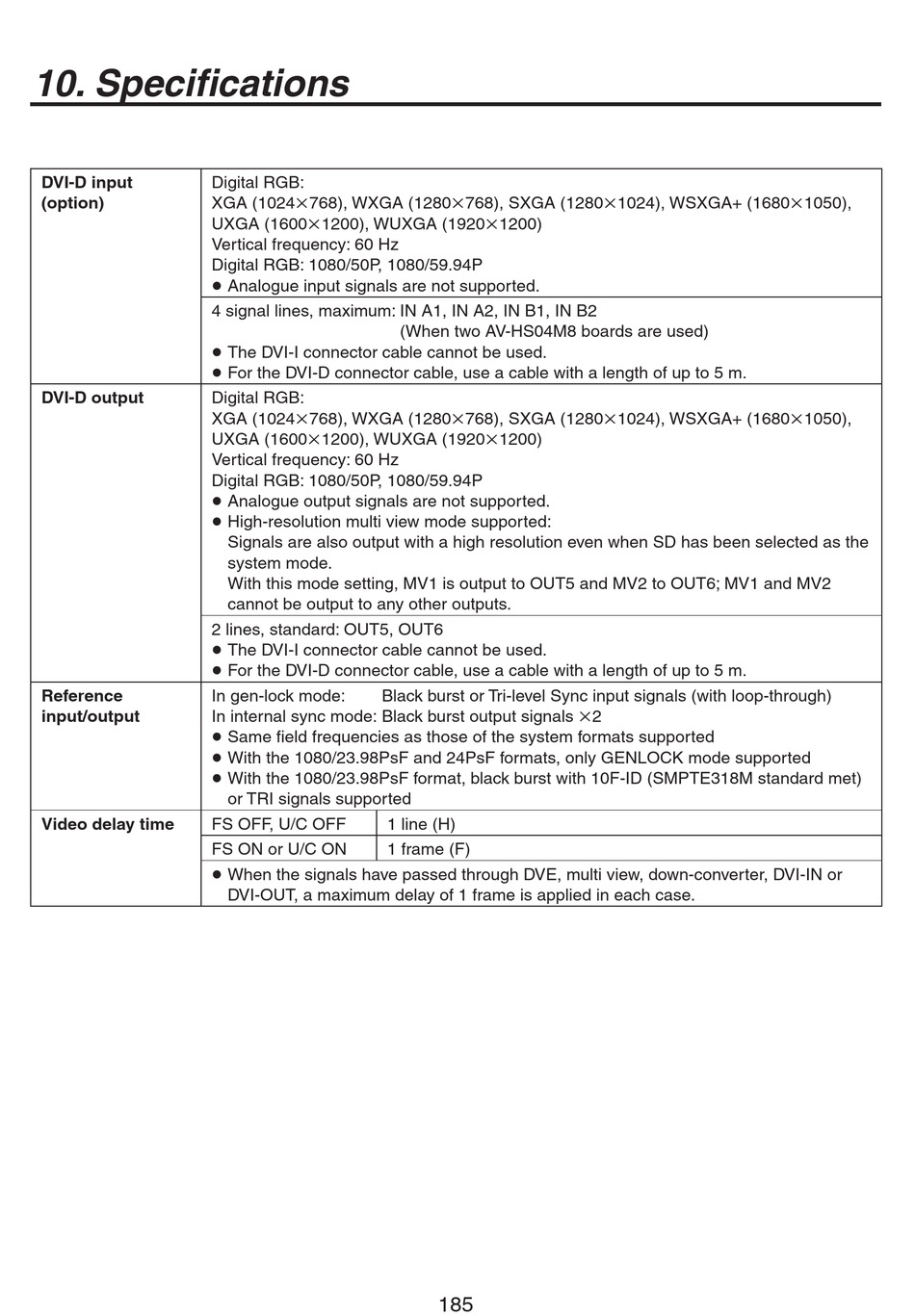

10. Specifications
DVI-D input
(option)
DVI-D output
Reference
input/output
Video delay time
Digital RGB:
XGA (1024768), WXGA (1280768), SXGA (12801024), WSXGA+ (16801050),
UXGA (16001200), WUXGA (19201200)
Vertical frequency: 60 Hz
Digital RGB: 1080/50P, 1080/59.94P
 Analogue input signals are not supported.
4 signal lines, maximum: IN A1, IN A2, IN B1, IN B2
 The DVI-I connector cable cannot be used.
 For the DVI-D connector cable, use a cable with a length of up to 5 m.
Digital RGB:
XGA (1024768), WXGA (1280768), SXGA (12801024), WSXGA+ (16801050),
UXGA (16001200), WUXGA (19201200)
Vertical frequency: 60 Hz
Digital RGB: 1080/50P, 1080/59.94P
 Analogue output signals are not supported.
 High-resolution multi view mode supported:
Signals are also output with a high resolution even when SD has been selected as the
system mode.
With this mode setting, MV1 is output to OUT5 and MV2 to OUT6; MV1 and MV2
cannot be output to any other outputs.
2 lines, standard: OUT5, OUT6
 The DVI-I connector cable cannot be used.
 For the DVI-D connector cable, use a cable with a length of up to 5 m.
In gen-lock mode: Black burst or Tri-level Sync input signals (with loop-through)
In internal sync mode: Black burst output signals 2
 Same field frequencies as those of the system formats supported
 With the 1080/23.98PsF and 24PsF formats, only GENLOCK mode supported
 With the 1080/23.98PsF format, black burst with 10F-ID (SMPTE318M standard met)
or TRI signals supported
FS OFF, U/C OFF
FS ON or U/C ON
 When the signals have passed through DVE, multi view, down-converter, DVI-IN or
DVI-OUT, a maximum delay of 1 frame is applied in each case.
(When two AV-HS04M8 boards are used)
1 line (H)
1 frame (F)
