Summary of Contents for Interlogix TVD-5125TE-3

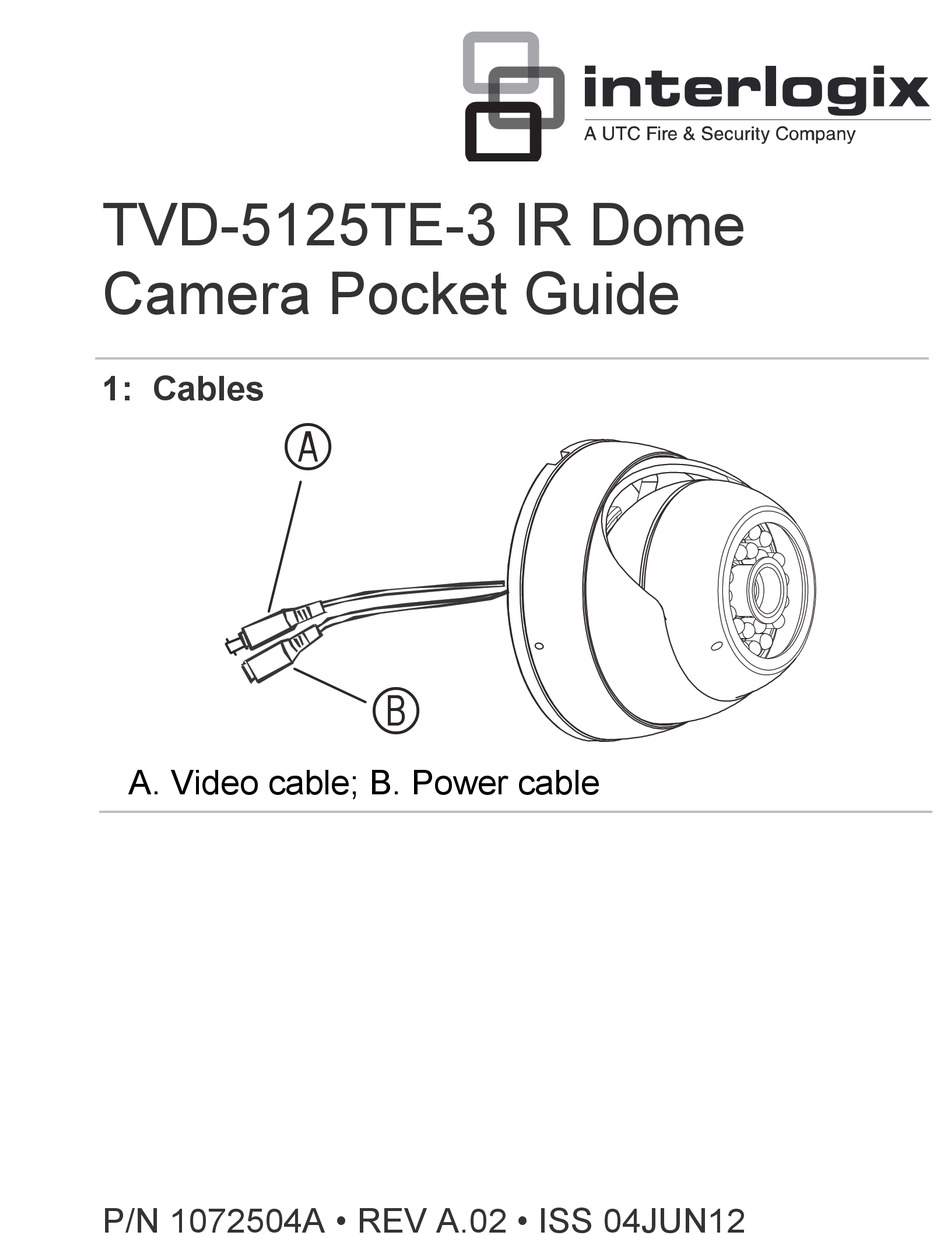

- Page 1 TVD-5125TE-3 IR Dome Camera Pocket Guide 1: Cables A. Video cable; B. Power cable P/N 1072504A • REV A.02 • ISS 04JUN12...
- Page 2 2: Front of the camera A. LED IR lights; B. Lens; C. Light sensor 3: Dimensions...

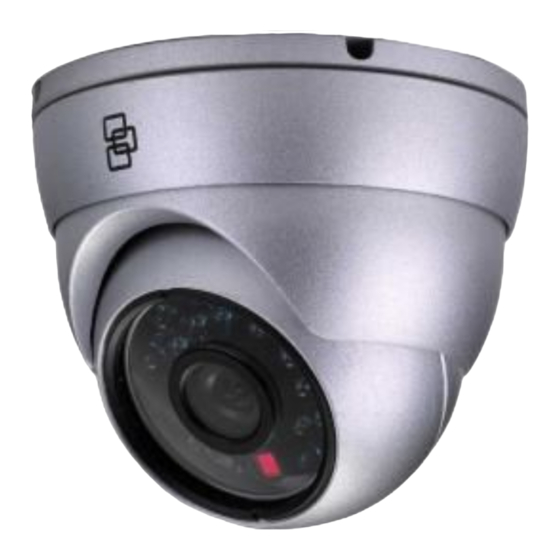

- Page 3 Overview This is the pocket guide for the TVD-5125TE-3-P / TVD-5125TE-3-N IR Dome Camera. The guide describes a standard installation. The camera consists of the following: Camera with power and video output cables Hex wrench Refer to the figures in the front of the guide when performing the camera setup procedures.
-
Page 4: Specifications
Current 60 mA (IR Off) 180 mA (IR On) Power consumption 2 W max. Weight 0.7 lb. (320 g) Dimensions 2.75 x 3.7 in. (H × Ø) (70 x 94 mm) Contact information For contact information, see www.interlogix.com or www.utcfssecurityproducts.eu. -
Page 5: Regulatory Information
Regulatory information © 2012 UTC Fire & Security. All rights reserved. Manufacturer UTC Fire & Security Americas Corporation, Inc. 2955 Red Hill Avenue, Costa Mesa, CA 92626 5923, USA Authorized EU manufacturing representative: UTC Fire & Security B.V. Kelvinstraat 7, 6003 DH Weert, The Netherlands FCC compliance Class B: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to... - Page 6 Certification N4131 European Union directives 12004/108/EC (EMC directive): Hereby, UTC Fire & Security declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. 2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
