Page 1: User Manual
TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual P/N 1072541C-EN • ISS 27JUL12... - Page 2 Copyright © 2012 UTC Fire & Security. All rights reserved. Trademarks and The TruVision and Interlogix names and logo are trademarks of patents UTC Fire & Security. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
-
Page 3: Table Of Contents
Set Day/Night mode 14 Set image noise reduction 15 Set the camera ID 15 Set sync mode 16 Select the language 16 Reset camera settings 16 Specifications 17 Dimensions 17 Menu Map 18 TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... -
Page 4: Product Overview

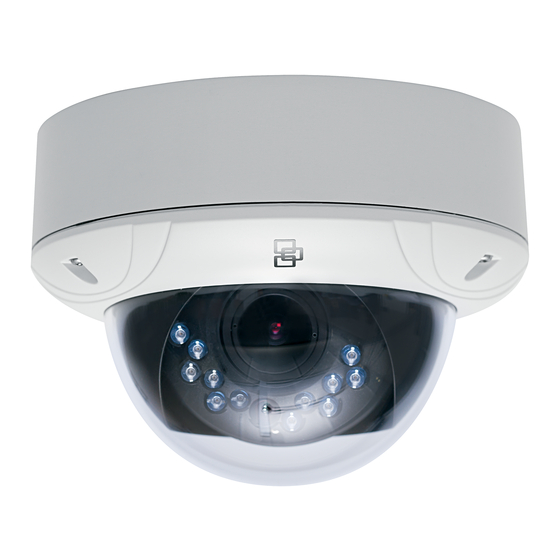

Product overview The TVD-6120VE-2-N(-P)/ TVD-6125VE-2-N(-P) color dome camera uses a digital signal processor (DSP) to process video signals. The camera includes a microcontroller to provide high-quality images with high-color reproduction and sharp pictures. Package Contents The package contains the following: •... -
Page 5: Product Description
2. Screw hole 8. Outlet hole 3. Base 9. Power supply and video BNC cables 4. OSD control button 10. Composite video BNC cable 5. Lens 11. Focus adjustment 6. IR LED 12. Zoom adjustment TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... -
Page 6: Installation
1. Prepare the mounting surface. 2. Remove the dome cover. 3. Secure the camera to the mounting surface with screws. 4. Remove the IR LED cover to adjust the lens and the viewing angle. TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... -
Page 7: Connect The Cables
4. Adjust the lens to obtain the appropriate angle of view and the optimum focus. Tighten the focus lock lever. 5. Replace the IR LED and dome covers on the camera. 6. Secure the dome cover with screws. TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... - Page 8 Note: Ensure that the screws highlighted above with a “ ” have been tightened securely to prevent water seepage. TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual...
-
Page 9: Programming
Press the center of the button to display the Setup menu. If the selected item has its own menu, press the button to enter a submenu. Access the Setup menu The Setup menu provides access to the camera configuration options. TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... - Page 10 6. To exit the Setup menu and return to normal camera operation mode, move the cursor to Exit at the bottom of the screen and press Enter. TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual...
-
Page 11: Save Changes
Speed: When the mode is set to Auto, select the convergence speed of the iris between 0 and 255. Set shutter/AGC In the Setup menu, go to Shutter/AGC and select the required light control option, Manual or Autoiris. Auto is default. The Manual or Auto menu appears: TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... -
Page 12: Set White Balance
White balance (WB) tells the dome camera what the color white looks like. Based on this information, the dome camera will then continue to display all colors correctly even when the color temperature of the scene changes such as from daylight to fluorescent lighting, for example. TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... -
Page 13: Set Backlight Compensation (Blc)
In the Setup menu, go to Backlight and select the options to be modified: Off: Option is disabled. Default setting. TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... -
Page 14: Adjust The Picture Characteristics
It helps improve the contrast between objects. In the Setup menu, go to and select the desired luminance and contrast parameters. Luminance: High, medium, low (default) Contrast: High, midhigh, mid (default), midlow, low TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... -
Page 15: Set Motion Detection
Motion Det and select the desired parameters. Area Sel: Up to eight privacy masks can be set. Select a mask and then set its size and position values using Top, Bottom, Left and Right. TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... -
Page 16: Set Day/Night Mode
Night→Day: Set the threshold level on how light it should be before switching from Night to Day mode. CAUTION: If there is a minimal difference between the Day→Night and Night→Day values, then camera may switch between Day and Night mode repeatedly. TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... -
Page 17: Set Image Noise Reduction
The menu will then disappear on-screen and the camera ID will be displayed on the monitor. Use the menu button to move the camera ID to the desired position. Press Enter. The menu will reappear. Select Return to return to the previous menu. TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... -
Page 18: Set Sync Mode
There are only two languages available, English and Japanese. Reset camera settings Use this menu to reset the camera settings to factory default. In the Setup menu, go to Camera Reset and press Enter. TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... -
Page 19: Specifications
24 VAC / 12 VDC 24 VAC / 12 VDC Current 290mA 375mA Power consumption Max. 3.5 W Max. 4.5 W Operating temperature -10 to +50 °C (14 to 122 F°) Weight 800 g (1.76 lbs) Dimensions TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual... -
Page 20: Menu Map
Menu Map TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual...
