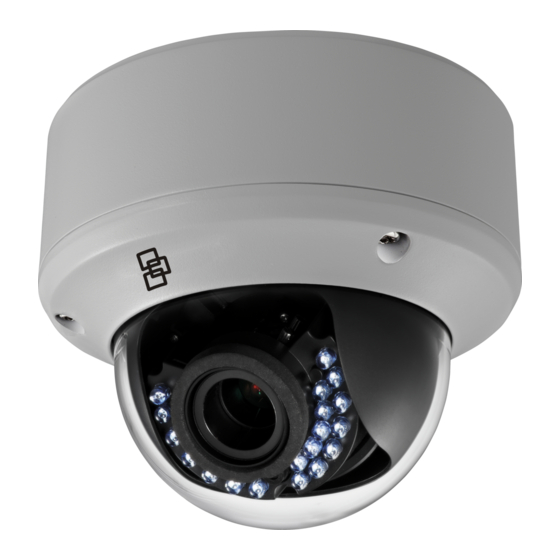

Truvision high definition tvi vandal dome
Hide thumbs Also See for TVD-2402:

Advertisement

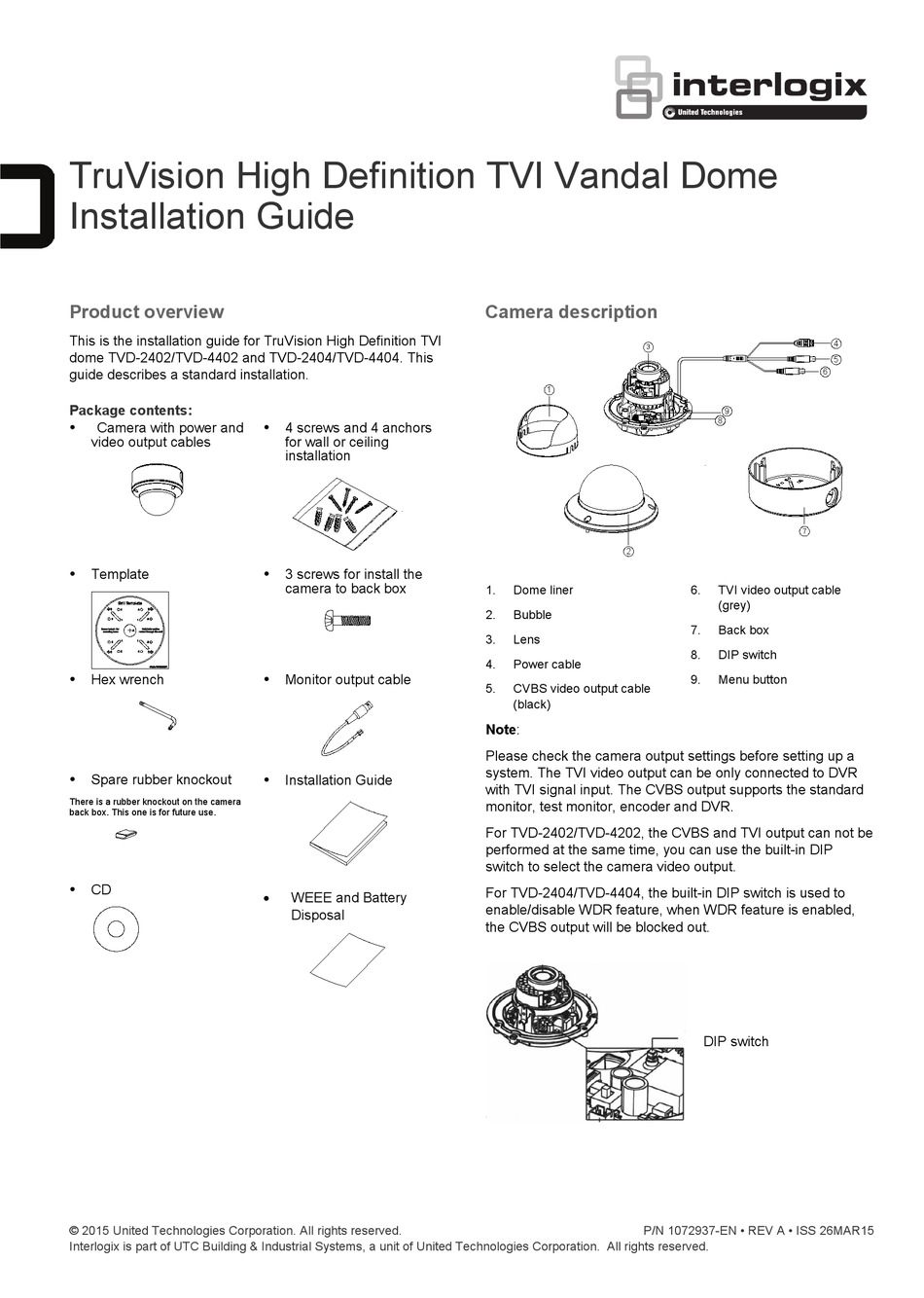

TruVision High Definition TVI Vandal Dome

Installation Guide

Product overview

This is the installation guide for TruVision High Definition TVI
dome TVD-2402/TVD-4402 and TVD-2404/TVD-4404. This
guide describes a standard installation.
Package contents:
Camera with power and
video output cables
Template
Hex wrench
Spare rubber knockout
There is a rubber knockout on the camera
back box. This one is for future use.
CD
© 2015 United Technologies Corporation. All rights reserved.
Interlogix is part of UTC Building & Industrial Systems, a unit of United Technologies Corporation. All rights reserved.
4 screws and 4 anchors
for wall or ceiling
installation
3 screws for install the
camera to back box
Monitor output cable
Installation Guide
WEEE and Battery
Disposal

Camera description

3
1
2
1.
Dome liner
2.
Bubble
3.
Lens
4.
Power cable
5.
CVBS video output cable
(black)
Note:
Please check the camera output settings before setting up a
system. The TVI video output can be only connected to DVR
with TVI signal input. The CVBS output supports the standard
monitor, test monitor, encoder and DVR.
For TVD-2402/TVD-4202, the CVBS and TVI output can not be
performed at the same time, you can use the built-in DIP
switch to select the camera video output.
For TVD-2404/TVD-4404, the built-in DIP switch is used to
enable/disable WDR feature, when WDR feature is enabled,
the CVBS output will be blocked out.
P/N 1072937-EN • REV A • ISS 26MAR15
4
5
6
9
8
7
6.
TVI video output cable
(grey)
7.
Back box
8.
DIP switch
9.
Menu button
DIP switch
