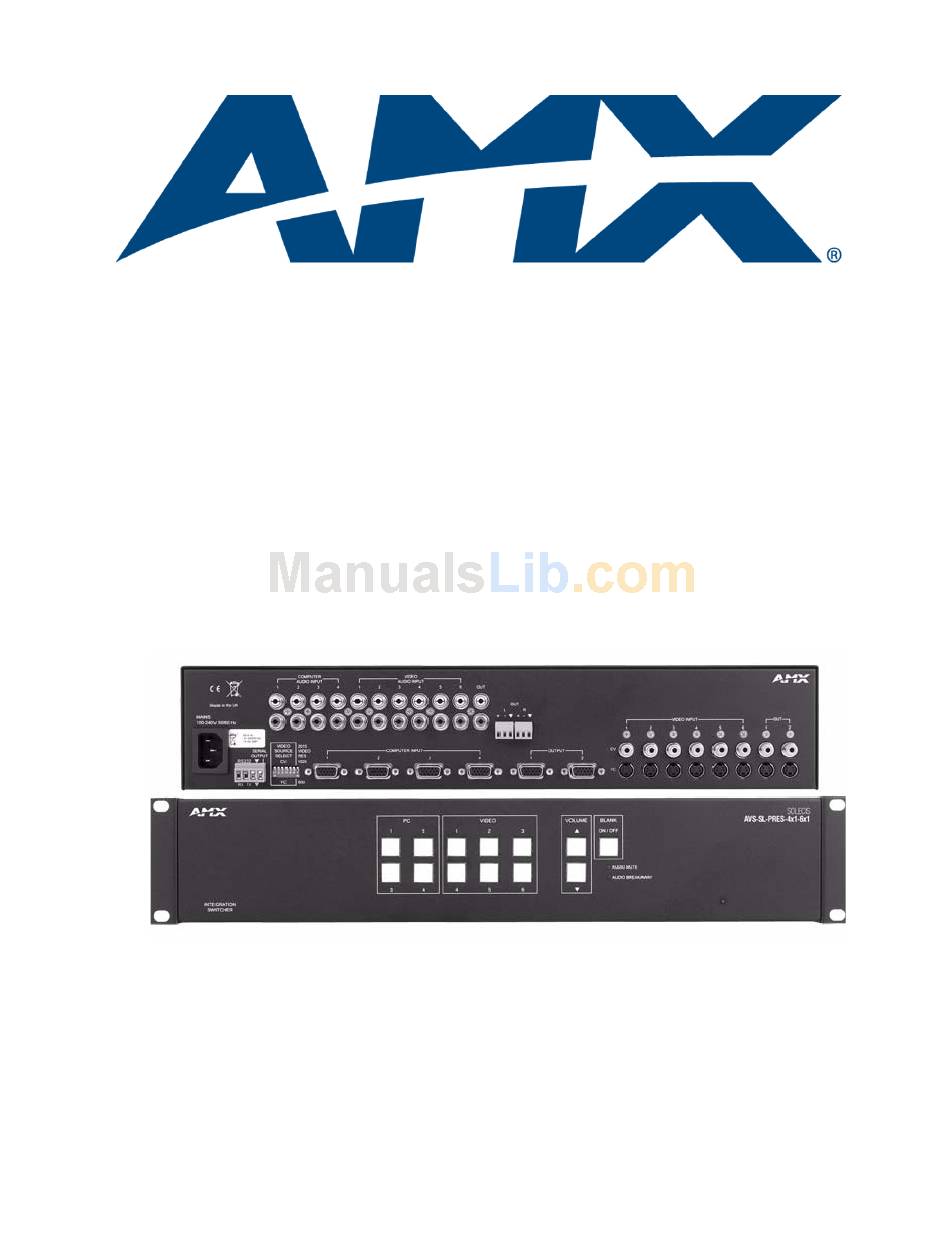

Operation/Reference Guide
AVS-SL-PR-0401-0601
Solecis Presentation Switcher
4x1 RGBHV, 6x1 SVID, 10x1 Stereo, CP
S ol e c i s S w it che r s
L a s t R e v i s e d : 9 / 2 9 / 2 0 0 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVS-SL-PR-0401-0601 and is the answer not in the manual?

Questions and answers

Related Manuals for AMX AVS-SL-PR-0401-0601

Summary of Contents for AMX AVS-SL-PR-0401-0601

  • Page 1 Operation/Reference Guide AVS-SL-PR-0401-0601 Solecis Presentation Switcher 4x1 RGBHV, 6x1 SVID, 10x1 Stereo, CP S ol e c i s S w it che r s L a s t R e v i s e d : 9 / 2 9 / 2 0 0 9...
  • Page 2 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.

  • Page 3: Avs-Sl-Pr

    Unplug the unit from the mains before and refer to a qualified technician if: the power cord has become damaged liquid has been spilled or it has been exposed to rain or water it does not operate correctly it has been dropped or the cabinet damaged. Solecis AVS-SL-PR-0401-0601 Presentation Switcher Safety Instructions...
  • Page 4 Safety Instructions Solecis AVS-SL-PR-0401-0601 Presentation Switcher...

  • Page 5: Table Of Contents

    Attenuation... 9 Display Device Serial Output ... 10 Input mode only... 10 Power On/Off mode ... 10 Programming Cable Connections ... 10 Display Connections ... 10 RS232 Control... 11 Connection ... 11 Protocol... 11 Solecis AVS-SL-PR-0401-0601 Presentation Switcher Table of Contents...
  • Page 6 Switch and Volume Status Feedback ... 15 Transmit ... 15 Receive ... 15 Request Address... 15 Transmit ... 15 Receive ... 15 Request Attenuation Levels ... 15 Transmit ... 15 Receive ... 15 Identity Command ... 16 Troubleshooting ...17 Solecis AVS-SL-PR-0401-0601 Presentation Switcher...

  • Page 7: Overview

    PC, computer, video and audio for presentation and conference rooms, home cinema, AV Rental Companies and any environment where a number of mixed source types need to be displayed. The AVS-SL-PR-0401-0601 features a total of ten inputs and a programmable serial output for controlling projectors, plasma displays and other display devices.
  • Page 8 RS232 Send and Receive, Front Panel Captive-Wire Baud Rate-9600, Data Bits-8, No Parity, Stop Bits-1 00 – FF software programmable RS232 Programmable Protocol Power On/Off, RGB Input, Composite Input and YC Input Available through RS232 command Solecis AVS-SL-PR-0401-0601 Presentation Switcher...
  • Page 9 • 110 to 240V auto-switching • Power Connector: IEC 2U Rack Mounting x 160mm 4.22 lb (1.916 kg) • IEC Mains Lead • Programming Software (available from amx.com) • CE • UL60950 • FCC class B, part 15 • RoHS/WEEE compliant...
  • Page 10 Overview Solecis AVS-SL-PR-0401-0601 Presentation Switcher...

  • Page 11: Connections

    Connect a Mains Source (110 to 240V) to the 2010 switcher. The Blank Button will illuminate. If any Source is connected to Inputs 1 of the PC and Video groups then Sync only will be present on the output. Solecis AVS-SL-PR-0401-0601 Presentation Switcher Connections...
  • Page 12 Connections Solecis AVS-SL-PR-0401-0601 Presentation Switcher...

  • Page 13: Solecis Device Configuration Software

    Solecis Device Configuration Software Overview This software (downloadable from www.amx.com) is used for configuring the AVS-SL-PR-0401-0601 to control external display devices. Connection 1. Connect the serial port of the PC as follows: PC (D9) 2011 Pin 5 Pin 2 Pin 3 2.

  • Page 14: Controlling External Display Devices

    Solecis Device Configuration Software Controlling External Display Devices To program the AVS-SL-PR-0401-0601 to control external display devices: 1. Click Setup Display. . FIG. 3 Device Manager - Setup Display 2. Click Change and select the required Manufacturer, Display Type and Model. The protocol and command strings will appear in the relevant fields.

  • Page 15: Operation (Front Panel Pushbuttons)

    To change the attenuation level of an input, press and hold the Input Select pushbutton, and press the Up and Down pushbuttons to set the level. Release the pushbuttons to store the new attenuation level. Solecis AVS-SL-PR-0401-0601 Presentation Switcher Operation (Front Panel Pushbuttons)

  • Page 16: Display Device Serial Output

    The commands are transmitted from the Display Serial terminal. Input mode only When the AVS-SL-PR-0401-0601 is powered up a mode command will be sent to a display on the first press of any Input select button. The command will either be RGB, Composite or S-Video depending on the button pressed.

  • Page 17: Rs232 Control

    Stop Bit = 1 The default address of the 2011 is 0. All commands are hexadecimal. Refer to the SET Commands section on page 13 and the GET Commands section on page 15 for details. Solecis AVS-SL-PR-0401-0601 Presentation Switcher Operation (Front Panel Pushbuttons)
  • Page 18 Operation (Front Panel Pushbuttons) Solecis AVS-SL-PR-0401-0601 Presentation Switcher...

  • Page 19: Set Commands

    A Volume value can be set directly using the following command: Byte 1 Byte 2 (Header) (Address) 00 to FF with 00 as the loudest (0dB) Solecis AVS-SL-PR-0401-0601 Presentation Switcher Byte 3 Byte 4 Byte 5(optional) 00 to 0A 0 to OA...

  • Page 20: Attenuation (Changes Level On Selected Input Only)

    Change Address (Sets 2011 to New Address) Byte 1 Byte 2 Byte 3 Byte 4 Byte 3 Byte 3 Byte 3 Byte 4 (Volume Value) 00 to 1F Byte 3 Byte 3 Byte 3 Byte 3 (Address number) 00 - FF Solecis AVS-SL-PR-0401-0601 Presentation Switcher...

  • Page 21: Get Commands

    Receive Byte 1 Byte 2 (Header) (Address) 00 - FF Where x is a value between 00 and 1F. Solecis AVS-SL-PR-0401-0601 Presentation Switcher Byte 3 Byte 3 Byte 4 Byte 5 PC or Video Input Audio input Input volume level...

  • Page 22: Identity Command

    GET Commands Identity Command Sending this command: Byte 1 Byte 2 Byte 3 Byte 4 The unit will return: Byte 1 Byte 2 04 =2010 Solecis AVS-SL-PR-0401-0601 Presentation Switcher...

  • Page 23: Troubleshooting

    A. Disconnect the power to the device, hold in the display power on & off buttons and reconnect power to the switch. All 3 mode lights should be illuminated to acknowledge the reset. Reset the power once more to resume normal operation. If necessary attach a computer and reprogram the device. Solecis AVS-SL-PR-0401-0601 Presentation Switcher Troubleshooting...
  • Page 24 Troubleshooting Solecis AVS-SL-PR-0401-0601 Presentation Switcher...
  • Page 25 Troubleshooting Solecis AVS-SL-PR-0401-0601 Presentation Switcher...
  • Page 26 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
