AMX Solecis AVS-SL-PR-0401-0601 Installation Manual

Overview
The Solecis AVS-SL-PR-0401-0601 Presentation Switcher (FG1330-2011-01) combines
switching of PC, computer, video and audio for presentation and conference rooms, home
cinema, AV Rental Companies and any environment where a number of mixed source types
need to be displayed.The AVS-SL-PR-0401-0601 features a total of ten inputs and a
programmable serial output for controlling projectors, plasma displays and other display
devices.

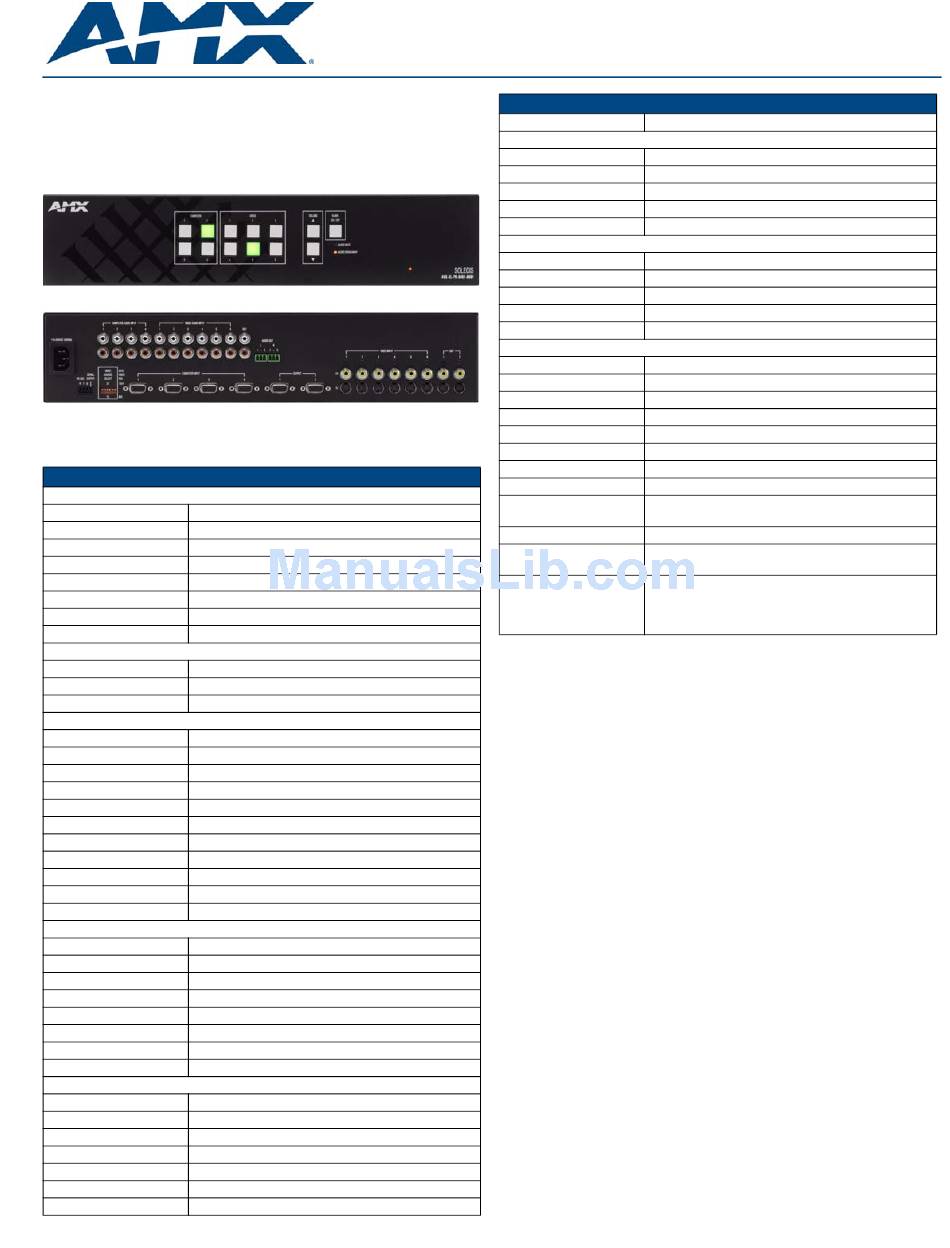

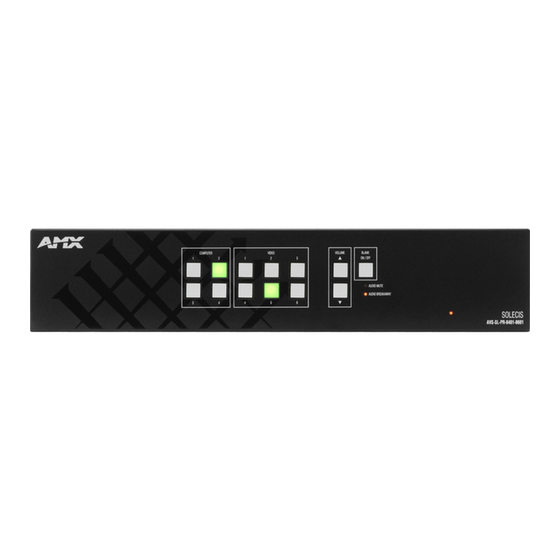

FIG. 1 Solecis AVS-SL-PR-0401-0601 Presentation Switcher

Product Specifications

AVS-SL-PR-0401-0601 Specifications
RGB Inputs
Number 4
Connector HD-15
Level: Analog
Max Level: 1V p-p
Impedance: 75 ohm
Bandwidth 250MHz -3dB
Return Loss -38dB@10MHz, -20dB@100MHz
Adjacent Input Crosstalk -80dB@10MHz, -70dB@100MHz
Sync Input
Type: Analog or TTL
Max Level: 5V p-p
Impedance: 75 ohm
Video Input
Number 6
Connectors Phono/RCA/Captive-wire 4Pin Din S-Video
Type YC or Composite
Level: Analog
Max Input: 1V P-P
Impedance: 75 Ohm
Bandwidth 50MHz -3dB
Return Loss: -30dB@1MHz, -22dB@5MHz
Differential Phase Error 0.05%
Differential Gain Error 0.03%
Crosstalk -60dB@1MHz
Audio Input
Number 10
Connectors Phono/RCA
Type Stereo Unbalanced Analog
Max Level 2V P-P
Impedance 47K
Audio Response 20-50 KHz
Microphone
Phantom Power
RGB Output
Number: 2
Connector: HD-15
Level: Analog
Gain: Unity
Sync
Impedance: 75 ohm
Sync Level: TTL
Solecis
AVS-SL-PR-0401-0601 Specifications (Cont.)
Sync Impedance:
Video Output
Number
Type
Connectors
Level:
Gain:
Audio Output
Number
Connector
(front)
Type
Attenuation:
Impedance
Control
Type:
Connector:
Protocol:
(rear)
Address:
Input:
Serial Output:
Type:
Audio Breakaway:
Power:
Dimensions:
Included Accessories:
Certifications:

Safety Instructions

Please read these instructions before using your AMX Solecis device. Failure to comply with
these instructions could result in fire, electrical shock, personal injury, death, or damage to
the equipment.
Power Source
Use only a 3-wire grounding type source. The power source should not exceed 264VAC. Do
not remove under any circumstances the ground wire.
Power Cord
Use only the cord shipped with the unit. Do not use the cord if it has become damaged or
frayed. Contact your AMX Solecis dealer if you need to replace the power cord.
Grounding
The interface is grounded through the grounding conductor on the power cord. To avoid
electric shock plug the power cord into a properly wired receptacle. Do not defeat the
purpose of the grounding-type plug.
Fuse
For protection against the risk of fire, use only a fuse of the same rating and type.
Liquid Spills
Do not set drinks on top of the unit or immerse the unit in liquid.
Do Not Disassemble
This device contains no user serviceable parts. All servicing must be performed by a qualified
service technician.
For Safety Reasons
• Do not place the unit on an unstable surface.
• Do not use near water or sources of heat.
• Use only recommended attachments.
• Use the type of power supply as specified.
Unplug the power to the unit and refer servicing to qualified personnel under the
following conditions:
• If liquid has been spilled or the unit has been exposed to rain or water.
• If it does not operate normally when the operating instructions are followed or if it
exhibits a distinct change in performance indicating a need for service.
• If the unit has been dropped or the cabinet damaged.
Connections

Typical Installation for Use with a Projector

Connect the RGB, Video and Audio sources to the Input sockets on the rear panel of the unit.
The RGB/Video inputs are 75 ohm terminated and the audio inputs 47Kohm terminated. The
RGB/Video and audio outputs are fully 75 ohm and 600 ohm driven respectively for
connection to long cable runs. It is imperative that the input sources are fully compatible with
the display and sound devices.
Installation Guide
AVS-SL-PR-0401-0601
75 ohm
2
YC or Composite
Phono/RCA/Captive-wire 4Pin Din S-Video
Analog
Unity
2
Captive-wire
Stereo Unbalanced and Balanced Analog
0 to -78dB
600 Ohm
RS232 Send and Receive, Front Panel
Captive-Wire
Baud Rate-9600, Data Bits-8, No Parity, Stop Bits-1
00 – FF software programmable
RS232
Programmable Protocol
Power On/Off, RGB Input, Composite Input and YC Input
Available through RS232 command
• 110 to 240V auto-switching
• Power Connector: IEC
2U Rack Mounting x 160mm
• IEC Mains Lead
• Programming Software (available from amx.com)
• CE
• UL60950
• FCC class B, part 15
• RoHS/WEEE compliant
