Operation/Reference Guide
AVS-SL-PR-0201-0301
Solecis Presentation Switcher
2x1:2 RGBHV, 3x1 SVID, 5x1 Stereo, CP
S ol e c i s S w it che r s
I n i t i a l R e l e a s e : : 6 / 3 0 / 2 0 0 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solecis AVS-SL-PR-0201-0301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMX Solecis AVS-SL-PR-0201-0301

Summary of Contents for AMX Solecis AVS-SL-PR-0201-0301

  • Page 1 Operation/Reference Guide AVS-SL-PR-0201-0301 Solecis Presentation Switcher 2x1:2 RGBHV, 3x1 SVID, 5x1 Stereo, CP S ol e c i s S w it che r s I n i t i a l R e l e a s e : : 6 / 3 0 / 2 0 0 8...
  • Page 2 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.

  • Page 3: Power Cord

    Safety Instructions Safety Instructions Overview Please read these instructions before using your Solecis switcher. Failure to comply with these instructions could result in fire, electrical shock, personal injury, death, or damage to the equipment. Power Source Use only a three-wire grounding type source. The power source should not exceed 264VAC. Do not remove under any circumstances the ground wire.
  • Page 4 Safety Instructions Solecis AVS-SL-PR-0201-0301 Presentation Switcher...

  • Page 5: Table Of Contents

    Table of Contents Table of Contents Safety Instructions ....................a Overview ........................a Power Source......................a Power Cord....................... a Grounding......................... a Fuse .......................... a Liquid Spills....................... a Do Not Disassemble ....................a For Safety Reasons ....................a Overview ......................1 Product Specifications ..................... 2 Connections ......................5 PC Connections......................
  • Page 6 Table of Contents Serial Commands ....................13 Communication Protocol..................13 Command Set ......................13 Decoding the Front Panel Status ................14 Troubleshooting ....................15 Solecis AVS-SL-PR-0201-0301 Presentation Switcher...

  • Page 7: Overview

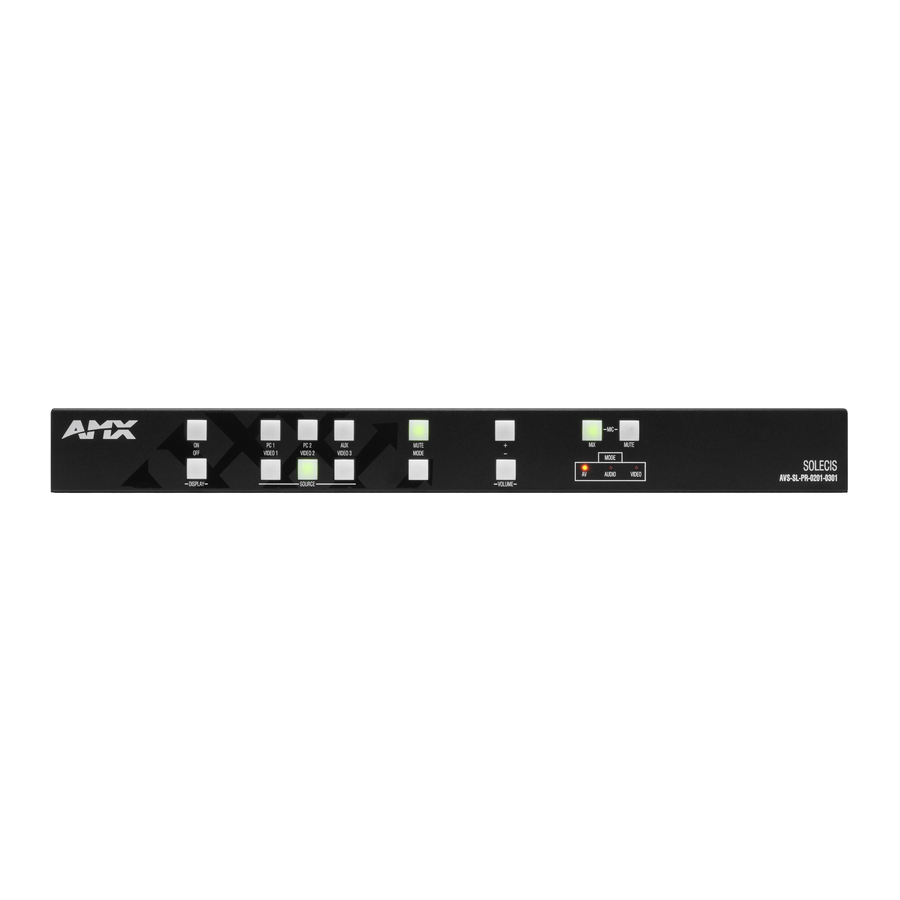

    Overview Overview The Solecis AVS-SL-PR-0201-0301 Presentation Switcher (FG1330-2020-01) combines switching of PC, computer, video and audio for presentation and conference rooms, home cinema, AV Rental Companies and any environment where a number of mixed source types need to be displayed. (front) (rear) FIG.

  • Page 8: Product Specifications

    Overview Product Specifications AVS-SL-PR-0201-0301 Specifications RGB Inputs: Connector: HD-15 Level: Analog Max Level: 1V p-p Impedance: 75 ohm Bandwidth 250MHz -3dB Return Loss -38dB @ 10MHz, -20dB @ 100MHz Adjacent Input Crosstalk: -80dB @ 10MHz, -70dB @ 100MHz Sync Input Level: TTL / Analog Max Level:...
  • Page 9 Overview AVS-SL-PR-0201-0301 Specifications (Cont.) Video Output Number Connectors RCA & 4 pin mini din S-Video Audio Output Connector RCA & Captive-wire Switched 1 unbalanced with volume control Mixed 1 balanced / unbalanced Impedance 600 ohm Power: • 110-240V 50/60Hz • Power Connector: IEC Power Consumption: Dimensions (HWD): 44 x 441 x 174...
  • Page 10 Overview Solecis AVS-SL-PR-0201-0301 Presentation Switcher...

  • Page 11: Connections

    Connections Connections Make sure the unit is unplugged from the mains power source while making initial connections. PC Connections 1. Connect the PC sources to the sockets labelled PC 1 & PC 2. 2. Connect the primary output to Output 1 and then if a secondary output is required, connect it to Output2.

  • Page 12: Serial Control Connections

    Connections Serial Control Connections Connect the display device serial control to the screw terminals labelled Display Tx & Rx. For setting up the equipment and for remote control of the switch connect to the PC Comms Tx & Rx terminals. The ground terminal is shared between the two connections.

  • Page 13: Configuration

    Configuration Configuration Overview In order to correctly set up the AVS-SL-PR-0201-0301 switch please download the Solecis Device Manager software from our website - www.Solecis.co.uk then click on support. Once installed, make sure the switch is connected correctly to a PC serial port and then start the device installer software. The software will scan the serial ports on the PC and find the attached device (FIG.

  • Page 14: Microphone Setup

    Configuration Microphone Setup Clicking the set up microphone button brings up the window shown in FIG. 4. Dragging the arrows allows increase and decrease of a setting whilst centre all sets the values back to their middle value. FIG. 4 Microphone setup To return to the main screen click on back.

  • Page 15: Sources Setup

    Configuration Sources Setup Clicking on set up sources brings up FIG. 6. This allows you to set the volume attenuation levels for each of the audio inputs. When the master volume on the front panel is adjusted, it adjusts all of the input volume controls up to the point where the first input hits the maximum or minimum.
  • Page 16 Configuration Solecis AVS-SL-PR-0201-0301 Presentation Switcher...

  • Page 17: Operation

    Operation Operation Power On This button turns the display device on, the button lights to show the current status. Power Off This button turns the display device off, the butt on lights to show the current status. PC1 & PC2 These button allow input selection of the two PC inputs.
  • Page 18 Operation Solecis AVS-SL-PR-0201-0301 Presentation Switcher...

  • Page 19: Serial Commands

    Serial Commands Serial Commands Communication Protocol Baud - 9600 Data Bits - 8 Stop Bits - 1 Parity - None Command Set Serial Commands Command Description Acknowledge Returned F2 09 EA 80 Requests Solecis device code – Header 6E, 2020 = 1D 6E 1D 9F 15 05 Simulates display device power on button...

  • Page 20: Decoding The Front Panel Status

    Serial Commands Serial Commands (Cont.) 9F 15 21 Audio Mode 9F 15 21 9F 15 22 Video Mode 9F 15 22 9F 15 40 PC Blank On 9F 15 40 9F 15 41 PC Blank Off 9F 15 41 9F 15 44 Video Blank On 9F 15 44 9F 15 45...

  • Page 21: Troubleshooting

    Troubleshooting Troubleshooting Q. Device Installer can't find my switch. Make sure that the serial connections are wired correctly, tx to rx, rx to tx and ground to ground. If using a USB adapter, try removing it and plugging it in to a different USB port on the PC. Make sure the PC is connected to the PC communications port and not the display's communication port.
  • Page 22 Troubleshooting Solecis AVS-SL-PR-0201-0301 Presentation Switcher...
  • Page 23 Troubleshooting Solecis AVS-SL-PR-0201-0301 Presentation Switcher...
