AMX Solecis AVS-SL-PR-0201-0301 Installation Manual

Overview
The Solecis AVS-SL-PR-0201-0301 Presentation Switcher (FG1330-2020-01)
combines switching of PC, computer, video and audio for presentation and conference
rooms, home cinema, AV Rental Companies and any environment where a number of
mixed source types need to be displayed.

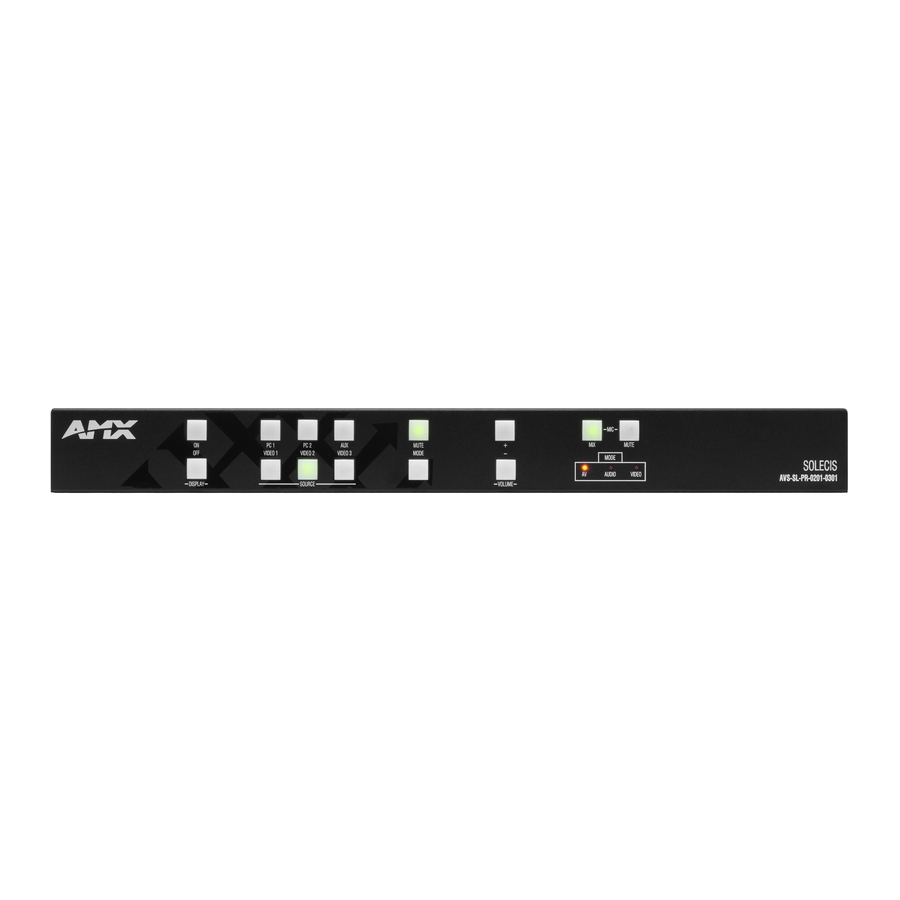

FIG. 1 Solecis AVS-SL-PR-0201-0301 Presentation Switcher
The AVS-SL-PR-0201-0301 features a total of 5 AV inputs and a programmable serial
output for controlling projectors, plasma and LCD displays.
There are 2 wide-band (250MHz -3dB) computer inputs on HD-15 connectors, 3 video
inputs each of which can be either composite or YC. 5 stereo audio follow-video/
computer inputs on RCA/Captive-Wire connectors each with independent volume
control and preset input attenuation which is retained within the non-volatile memory of
the AVS-SL-PR-0201-0301.
Full video and audio breakaway is available with RS232 control along with a master
volume control for total flexibility. Regardless of the video input type (CV or YC), both
CV and YC outputs are available simultaneously which allows mixed format inputs to
be displayed without switching.
The AVS-SL-PR-0201-0301 also supports a balanced microphone (with phantom
power if required) for which the gain and tone can easily be adjusted from the PC
based setup software. The microphone input can be mixed onto the switched audio
output and is then presented on a balanced mixed output.
Control of the AVS-SL-PR-0201-0301 can be from the front panel or by RS232 control
from a computer or AV control system. The programmable serial output will control
power on and off and switch the inputs of the projector or display. It is easily
programmed using the Solecis Device Configuration Software which includes a library
of common display devices to reduce installation time.
Projector control includes programmable RS232 commands for Power ON/OFF, RGB,
YC and CV inputs and when supported, the devices power status is interrogated and
displayed on the front panel.

Product Specifications

AVS-SL-PR-0201-0301 Specifications
RGB
RGB Inputs: 2
Connector: HD-15
Level: Analog
Max Level: 1V p-p
Impedance: 75 ohm
Bandwidth 250MHz -3dB
Return Loss -38dB @ 10MHz, -20dB @ 100MHz
Adjacent Input Crosstalk: -80dB @ 10MHz, -70dB @ 100MHz
Sync Input
Level: TTL / Analog
Max Level: 5V p-p
Impedance: 75 ohm
Video Input
Number: 3
Connectors: RCA & 4 pin mini din S-Video
Type: CV or YC
Bandwidth: 50 MHz -3dB
Differential Phase Error: 0.05%
Differential Gain Error: 0.03%
Crosstalk: -60dB @ 1MHz
Solecis
AVS-SL-PR-0201-0301 Specifications (Cont.)
Audio Input
Number:
Level:
Connector:
(front)
Type:
Max Level
Impedance
Audio Response
Microphone
Phantom Power
RGB Output
(rear)
Number:
Connector:
Level:
Gain:
Sync
Impedance:
Sync Level:
Sync Impedance:
Video Output
Number
Connectors
Audio Output
Connector
Switched
Mixed
Impedance
Power:
Power Consumption:
Dimensions (HWD):
Weight:
Included Accessories:
Certifications:

Safety Instructions

Please read these instructions before using your AMX Solecis device. Failure to
comply with these instructions could result in fire, electrical shock, personal injury,
death, or damage to the equipment.
Power Source
Use only a 3-wire grounding type source. The power source should not exceed
264VAC. Do not remove under any circumstances the ground wire.
Power Cord
Use only the cord shipped with the unit. Do not use the cord if it has become damaged
or frayed. Contact your AMX Solecis dealer if you need to replace the power cord.
Grounding
The interface is grounded through the grounding conductor on the power cord. To
avoid electric shock plug the power cord into a properly wired receptacle. Do not
defeat the purpose of the grounding-type plug.
Fuse
For protection against the risk of fire, use only a fuse of the same rating and type.
Liquid Spills
Do not set drinks on top of the unit or immerse the unit in liquid.
Do Not Disassemble
This device contains no user serviceable parts. All servicing must be performed by a
qualified service technician.
For Safety Reasons
• Do not place the unit on an unstable surface.
• Do not use near water or sources of heat.
• Use only recommended attachments.
• Use the type of power supply as specified.
Installation Guide
AVS-SL-PR-0201-0301
6
Analog
RCA
Unbalanced analog
2V p-p
47K ohm
20Hz - 50KHz
Balanced / Unbalanced
12V internal / 48V max external
2
HD-15
Analog
Unity
Output
75 ohm
TTL
75 ohm
1
One RCA for Composite and one 4 pin mini din S-Video
RCA & Captive-wire
1 unbalanced with volume control
1 balanced / unbalanced
600 ohm
• 110-240V 50/60Hz
• Power Connector: IEC
15W
44 x 441 x 174
1.4kg
1U Rack mounting kit
• CE
• UL60950
• FCC class B, part 15
• RoHS/WEEE compliant
