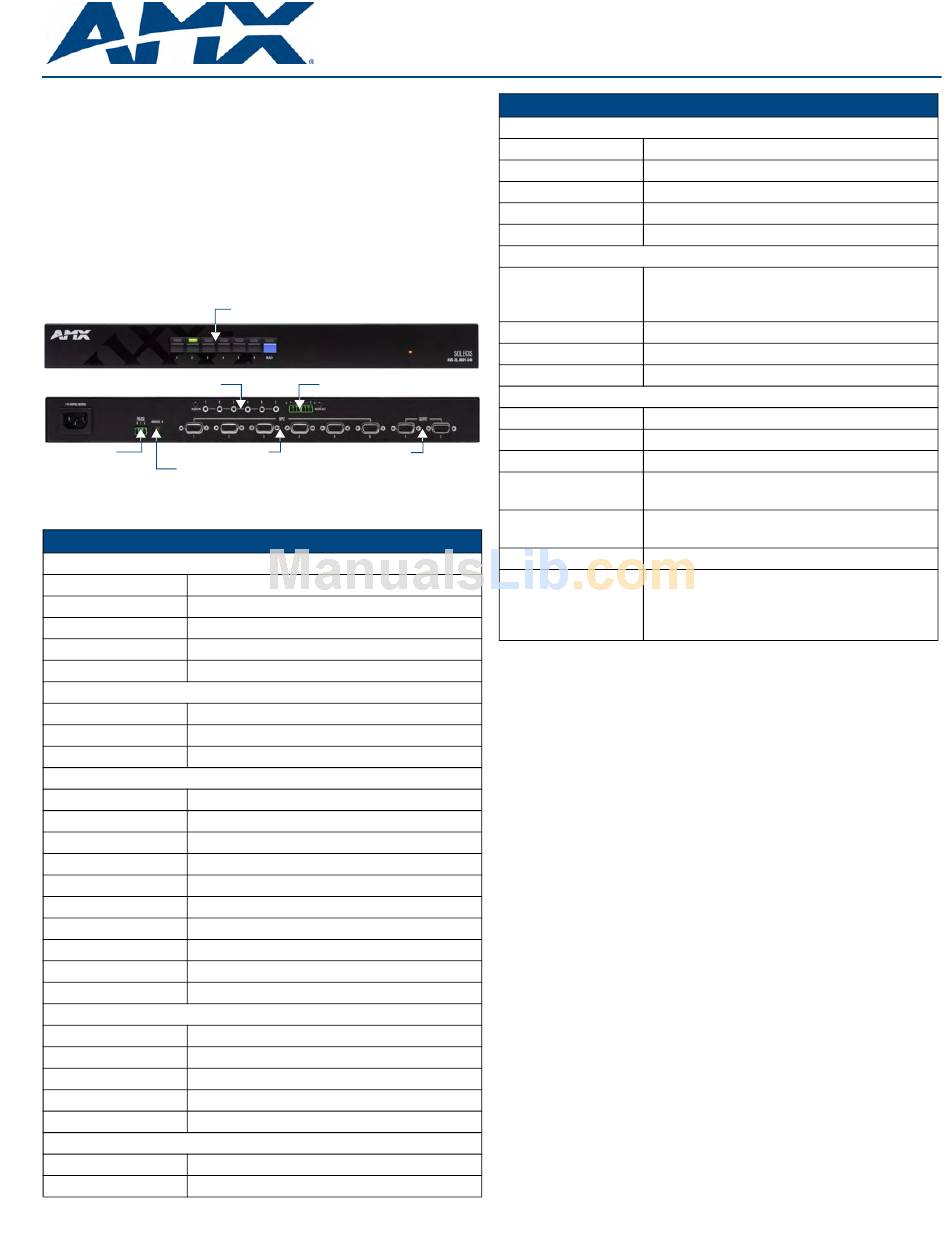

AMX Solecis AVS-SL-0601-848 Installation Manual

Overview
The Solecis AVS-SL-0601-848 (FG1330-1501-04) is a wideband high resolution
6x1x2 HD-15 and Audio switcher for all computer presentation applications up to
UXGA.
The AVS-SL-0601-848 incorporates two simultaneously driven outputs for
connection to long cable runs. Control of the AVS-SL-0601-848 is from the front
panel, via RS232 or it can be set to operate in auto-switch mode which will
switch the source to the last detected sync input.
The audio switcher will follow the video selected input and is stereo unbalanced-
to-balanced out.
The AVS-SL-0601-848 features an internal 100-240V power supply and is
housed in a 1U metal enclosure.
Audio IN
RS-232 RGBHV IN
RX + TX
RS-232 Address

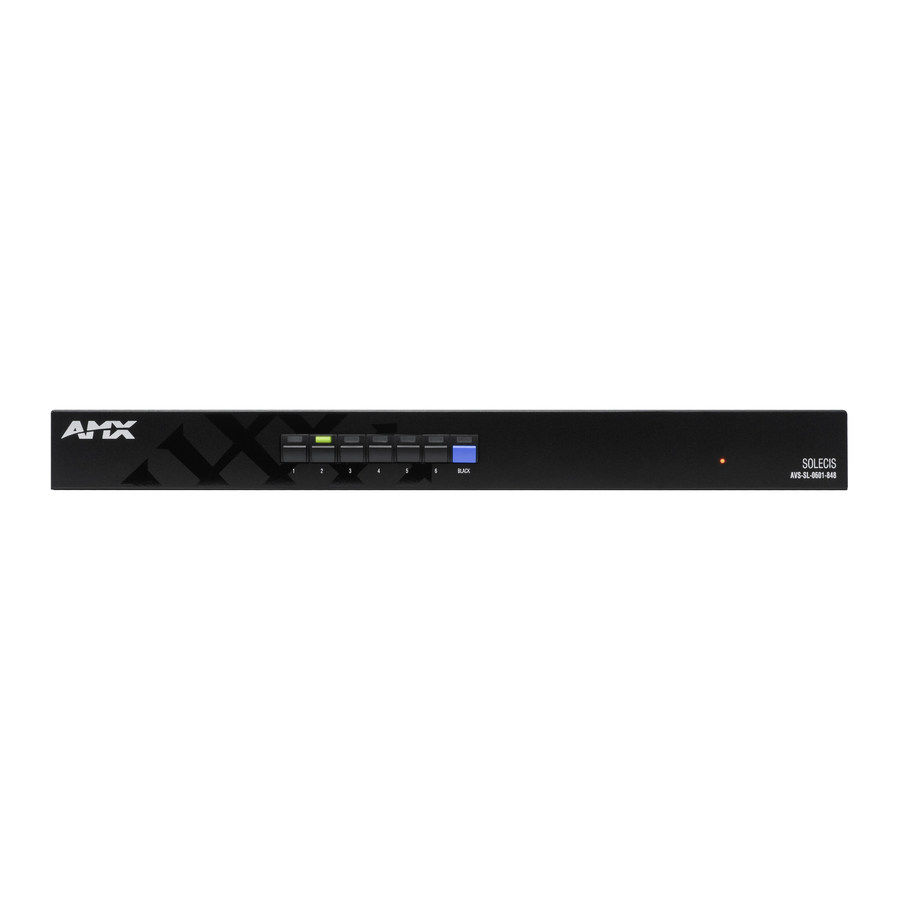

FIG. 1
Solecis AVS-SL-0601-848

Product Specifications

Solecis AVS-SL-0601-848 Specifications
RGB Input
Number: 6
Connectors: HD-15
Level: Analog
Max Level: 1V p-p
Impedance: 75 ohm
Sync Input
Type: Analog or TTL
Max. Level: 5V p-p
Impedance: 75 ohm
Audio Input
Number: 6
Connectors: 3-pole 3.5mm
Type: Stereo unbalanced analog
Max. Level: 2V p-p
Impedance: 47k ohm
RGB Video Bandwidth: 400MHz -3dB
RGB Return Loss: -38dB@10MHz, -20dB@100MHz
Adjacent Input Crosstalk: -80dB@10MHz, -70dB@100MHz
Audio Freq. Response: 20Hz - 50KHz
Sync Processing: None
RGB Output
Number: 2 (Distributed)
Connectors: HD-15
Level: Analog
Gain: Unity
Impedance: 75 ohm
Sync Output
Level: TTL
Impedance: 75 ohm
Input Selection pushbuttons (1-6)
Audio OUT
RGBHV OUT
Solecis
Solecis AVS-SL-0601-848 Specifications (Cont.)
Audio Output
Number:
Connector:
Type:
Gain:
Impedance:
Control
Switch:
(front)
Connectors:
Protocol:
Auto-Switch:
Power
Input Voltage:
Connector:
(rear)
Power Consumption:
Included Accessories:
Dimensions (HWD):
Weight:
Certifications:
Safety Instructions
Please read these instructions before using your AMX Solecis device. Failure to
comply with these instructions could result in fire, electrical shock, personal injury,
death, or damage to the equipment.
Power Source
Use only a 3-wire grounding type source. The power source should not exceed
264VAC. Do not remove under any circumstances the ground wire.
Power Cord
Use only the cord shipped with the unit. Do not use the cord if it has become damaged
or frayed. Contact your AMX Solecis dealer if you need to replace the power cord.
Grounding
The interface is grounded through the grounding conductor on the power cord. To
avoid electric shock plug the power cord into a properly wired receptacle. Do not
defeat the purpose of the grounding-type plug.
Fuse
For protection against the risk of fire, use only a fuse of the same rating and type.
Liquid Spills
Do not set drinks on top of the unit or immerse the unit in liquid.
Do Not Disassemble
This device contains no user serviceable parts. All servicing must be performed by a
qualified service technician.
For Safety Reasons
• Do not place the unit on an unstable surface.
• Do not use near water or sources of heat.
• Use only recommended attachments.
• Use the type of power supply as specified.
Unplug the power to the unit and refer servicing to qualified personnel under the
following conditions:
• If liquid has been spilled or the unit has been exposed to rain or water.
• If it does not operate normally when the operating instructions are followed or if it
exhibits a distinct change in performance indicating a need for service.
• If the unit has been dropped or the cabinet damaged.
Installation Guide
AVS-SL-0601-848
1
Balanced captive-wire connector
Stereo unbalanced analog
Unity
600 ohm
• Front panel
• RS232
• Auto-switch
3-pole 3.5mm
Baud Rate-9600, Data Bits-8, No Parity, Stop Bit-1
On next Vertical Sync detected
100-240V AC, 50/60Hz
IEC
15W
• Detachable Rack Mount
• Mains Lead
• 1.69" x17.36" x 6.85" (4.3cm x 44.1cm x 17.4cm)
• 1 Rack Unit
6.94 lbs. (3.15 kg)
• CE
• UL60950
• FCC class B, part 15
• RoHS/WEEE compliant
