General Information

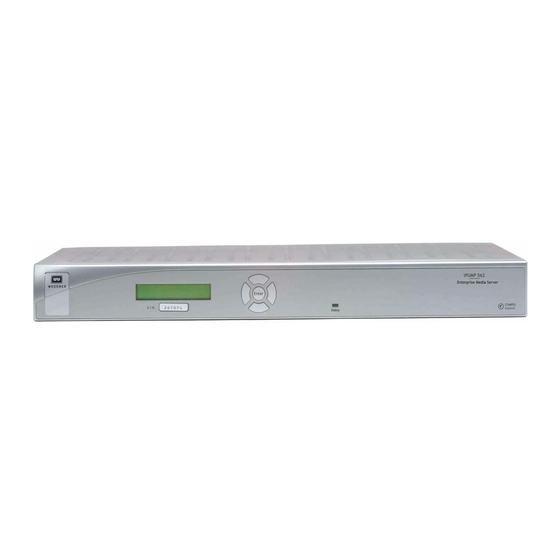

The
WEGENER iPump 562
content from its internal hard disk drive.
Features
Supports DVB-S QPSK, DVB-S2 QPSK, and DVB-S2 8PSK symbol modulation formats
Supports decoding MPEG-2 and MPEG-4/H.264 compression
Supports PAL and NTSC standard definition video output formats via composite video outputs
Supports 720p and 1080i high definition video output formats via HDMI and YPbPr component outputs
Plays single transport stream files or playlists
Supports Wegener's Compel control system via RF or IP
Supports Wegener's conditional access system
Supports DVB sub-titling and teletext services
Supports Digital Signage
Supports decoding/rendering of closed captioning or passthru to TV for decode
Receives file downloads via Compel Assured File Delivery system
Decodes IP multicast and unicast streams
Two relay outputs, both can be user controllable or one assigned to alarms
One GPIO input used for triggered playback of files/playlists
RS232 serial port that can be assigned to terminal mode or printer mode
SNMP monitoring
S/PDIF digital audio output, linear PCM or bitstream
Optional IR remote control
Compel™ Network Control
gives you the power to manage a network of iPump562's and other Unity IRDs with unparalleled functionality. With its
Compel
unique network management features, such as grouping, receiver control and scheduling, the operator can command
individual groups of receivers to switch, tune, or "output" video or data targeted specifically for that one receiver or group of
receivers. This ability can be utilized for unequalled disaster recovery for business critical operations.
www.wegener.com
iPump 562
Digital Media Server
User's Manual
is a digital media server capable of decoding satellite signals or IP streams or playing stored
800092-02 Rev. C
.
