513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int'l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133
Web site : www.commax.com
Printed In Korea / 2010.0 4.101

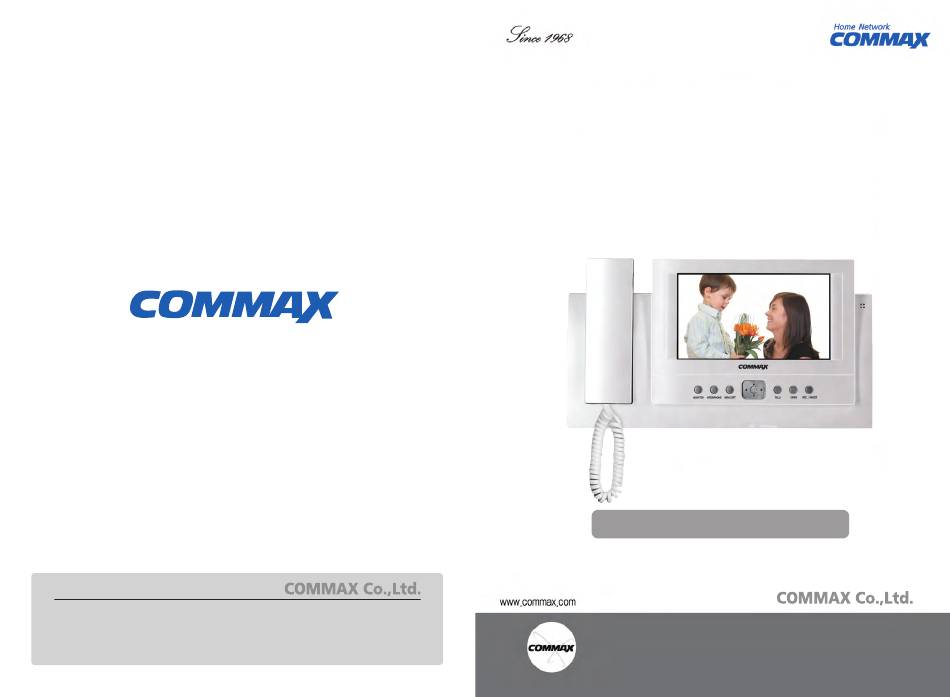

User Manual

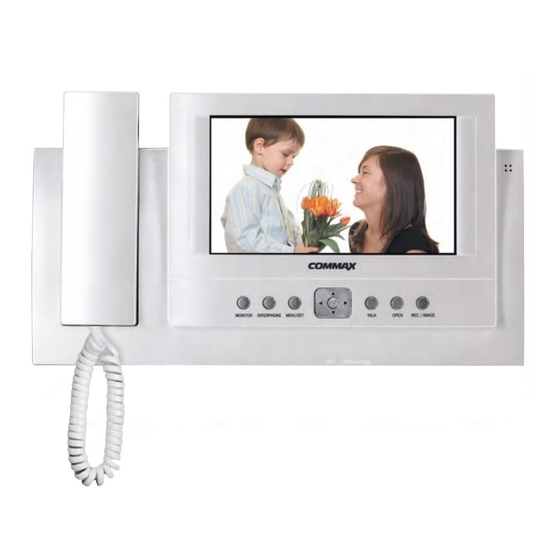

COLOR VIDEO DOOR PHONE CDV-71BE/D
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax CDV-71BE/D
Summary of Contents for Commax CDV-71BE/D
- Page 1 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 • Thank you for purchasing COMMAX products. Web site : www.commax.com • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.
- Page 2 Warnings and caution Make sure to follow the instructions to prevent any danger or property losses. It indicates prohibition. It indicates prohibition of disassembly. Warning Death or serious It indicates prohibition of contact. injury is expected. It indicates dos and don’ts. It indicates that the plug should be pulled out from the socket.
- Page 3 Install the product in a flat and Pull the plug if the product is If the product generates strange stable place. not used for a long time. sound, make sure to pull the Otherwise, it may not function plug immediately and contact properly. Commax service center.
-
Page 4: Table Of Contents
Table of contents 1. Name of Parts 2. Features and Main Function 3. Package 4. System Layout 5. Wiring Diagram 6. Installation Method 7. Operating Description - Visitor Call & Monitoring - Interphone Function - Memory Picture (Save visitors pictures, Erase visitors pictures, Time setting) - Product setting 8. -
Page 5: Name Of Parts
1. Name of parts Name Details Volume for call volume control Control the call volume Monitor button View and screen by door camera or talk Interphone button Talk by interphone between the rooms Open button Operate on Door release of door camera Up button Up direction key Left button... -
Page 6: Features And Main Function
2. Features and Main Function 1. Features 7" Wide TFT-LCD Surface mount type installation method FREE VOLTAGE power supply Menu control by on screen display 2. Main function Communicate between Front door camera and CDV-71BE Interphone call and talk function Image storing (128 cut) function Door Open function CCTV Camera availble... -
Page 7: System Layout
4. System Layout Sub camera Camera: 4 units (Max) CCTV Camera □ □ Sub phone: 1 unit □ Wiring Camera : 30M(at Ø0.5mm) / 50M(at Ø0.65mm) / 70M(at Ø0.8mm) / 115M(atØ1.0mm) □ Sub interphone : 30M(at Ø0.65mm) / 50M(at Ø0.8mm) □... -
Page 8: Wiring Diagram
5. Wiring Diagram # ①Red: Voice # ②Blue: GND # ③Yellow: +12V # ④White: Video CCTV Camera wiring diagram Please connect CCTV camera to one of the 4 channels CCTV CAMERA need additional power source . Please select wires depending on installation situation. CCTV WIRING... -
Page 9: Installation Method
6. Installation Method Installation method of monitor □ 55。 75。 Notes for installing Please keep the product away from magnetism, severe moisture, direct sun rays and nearby □ heater, which may influence on the product Suitable height for main unit is 1450 ~ 1500mm from the bottom to the screen. □... -
Page 10: Operating Description
7. Operating Description 1. Visitor Call & Monitoring When you push the [CALL] button on Camera, you can hear the chime sound from the □ monitor, sub-interphone, and Camera No. as well as visitor's picture will be shown on a screen.(Duration of on-screen : 30 sec) You can pick up the handset if you want to talk. - Page 11 3.Picture Memory 3-1 Recording Manual While you are monitoring outside the house with CDV-71BE or talking though door □ phone, you can press the [REC./DEL.] button to save 1 cut of picture thru the door camera or CCTV camera. 3-2 Auto recording Record a visitor picture on the memory of CDV-71BE when you set the units on AWAY □...
- Page 12 You can select one of the 6 images of visitors picture recorded on screen using the □ [UP▲]/ [DOWN▼] and [LEFT◀/ [RIGHT▶] buttons, Press [ ↲] button after moving the red bar to the image you want to enlarge. □ 2007-01-23 11 12 33 1-1/4 Press [LEFT◀]/[RIGHT▶] button, you can see the pictures enlarged in order.
- Page 13 6. Screen Adjustment...
- Page 14 7. Camera Setting It is connectable 4 cameras max □ In this menu, you can select the number of cameras that can be used, even connected or □ disconnected. The following picture will be shown with pressing [↲] button for over 3 seconds in stand-by □...
-
Page 15: Specification
8. Specification ITEM CDV-71BE Camera : 4 lines in polarity, Sub interphone : 4 lines in Wiring number polarity Rated voltage AC100-240V~, 50/60Hz Power consumption 25W (Max.) (On operating) Display unit 7" TFT-LCD Call sound Door(individual door):ring electronic chime 3 sounds twice repeatedly, Interphone :electronic melody sound Image receiving time 30sec (On calling 60sec)
