User Manual

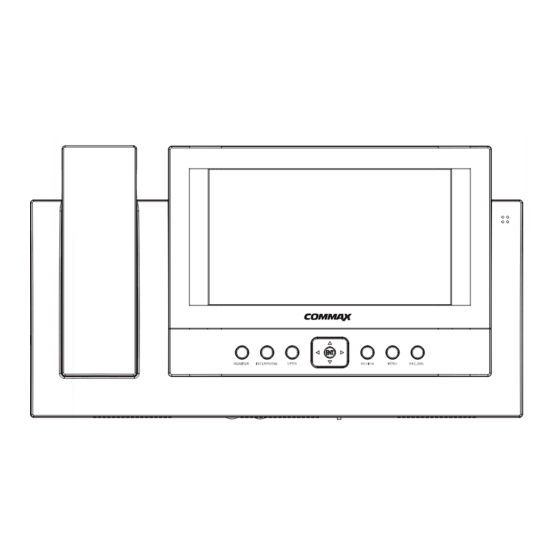

COLOR VIDEO DOOR PHONE
CDV-71BQ / 71BQS
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax CDV-71BQ
Summary of Contents for Commax CDV-71BQ
-
Page 1: User Manual
User Manual COLOR VIDEO DOOR PHONE CDV-71BQ / 71BQS Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
Table of Contents Warnings and caution The Function and Name of Each Part Features and Main Functions Package contents System Layout Wiring Diagram Installation Method Operating Description Menu Setting for CDV-71BQ Picture Memory Review Screen Adjustment Trouble shooting Specification... -
Page 3: Warnings And Caution
Warnings and caution Make sure to follow the instructions to prevent any danger or property losses. It indicates prohibition. It indicates prohibition of disassembly. Warning Death or serious It indicates prohibition of contact. injury is expected. It indicates dos and don’ts. It indicates that the plug should be pulled out from the socket. - Page 4 Install the product in a flat and Pull the plug if the product is If the product generates strange stable place. not used for a long time. sound, make sure to pull the Otherwise, it may not function plug immediately and contact properly. Commax service center.
-
Page 5: The Function And Name Of Each Part
1. The Function and Name of Each Part function Name Details Volume control Control the call volume Monitor button View screen by door camera or talk Interphone button Talk by interphone between the rooms Open button Operate on Door release of door camera Up button Up direction key Left button... -
Page 6: Features And Main Functions
● Free voltage power source ● OSD ( On screen Display) ● 2. Main function Communicate between Front door camera and CDV-71BQ ● Sub-monitors(CDV-71BQS) call and talk function ● Image storing NTSC : 68cuts with quad ● PAL : 58 cuts with quad by either manual and auto mode. -
Page 7: Package Contents
3. Package Contents User manual Wall Bracket Monitor & Handset Fixing Screw Fixing Screw 4. System Layout Connectable Products. ● Door Camera: 4 units (Max) -> Inter-Connectable CCTV Camera ① Sub Monitor (CDV-71BQS): 2 units ② Wiring ● Camera : 30M(at Ø0.5mm / 50M(at Ø0.65mm)/ 70M(at Ø0.8mm) ①... -
Page 8: Wiring Diagram
Please connect CCTV camera to one of the 4 channels ● - CCTV CAMERA is needed separate power source. - Please select the type of Coaxial Cable depending on installation distance from the Mater unit to the CCTV Camera. To. CDV-71BQ : GND : VIDEO... -
Page 9: Installation Method
6. Installation method Installation method of monitor Notes for installing ● - Please keep the product away from magnetism, severe moisture, irect sun rays and nearby heater, which may influence on the product - Suitable height for main unit is 1450 ~ 1500mm from the bottom to the screen. - Please arrange the handset after installation is completed - Please refer to [7. -
Page 10: Operation Description
When you push the [CALL] button on Camera unit, you can hear the chime sound ① from the Master(CDV-71BQ), Sub-Monitor(CDV-71BQS) and the visitors’ picture as well as Camera Number will be shown on a screen with quad display . (Duration of on-screen : 30 sec) You can pick up the handset if you want to talk. -
Page 11: Menu Setting For Cdv-71Bq
Sub units(CDV-71BQS) and then, you can start talking In order to open the door from Sub-monitor, you can press door open button ② 8. Menu Setting for CDV-71BQ Press [Menu] button for the following display to change setup in standby ※ Note... - Page 12 2) Camera Setup In this menu, you can activate which cameras you wish to display. ① It is connectable to a maximum of 4 cameras. ② The default value is set to use all four cameras. ③ ※ Note CAMERA SET CAM1 : Activate CAM1 : Enable CAM2 : Not activate...
-
Page 13: Picture Memory
This function runs in case of being set on “auto record” in ”Memory status mode” ② The Green Lamp on the top of CDV-71BQ will blink when it is Auto Recording. ③ - Visitors’ pictures are not stored when auto recording status lamp is off. -
Page 14: Review
10. Review This is to see the stored screens. ① Stored screens are shown in quad display by pressing [REVIEW] button in standby ② CAM 1 CAM 2 CAM 3 CAM 4 2007 /08 13 : 20 : 50 You can select quad images of visitors’ picture recorded on screen using ③... -
Page 15: Screen Adjustment
11. Screen Adjustment... -
Page 16: Trouble Shooting
12. Trouble shooting If you think that the product has trouble, please first check below contents before you ask a repair. Troubles Check Point Actions 1. Please connect the 1.The power supply The power supply is power supply cord code is missing or not. ●... -
Page 17: Specification
Camera : 4 lines in polarity, Sub-Monitor : Wiring 6 lines in polarity AC100-240V~, 50/60Hz Rated voltage Power consumption CDV-71BQ : 25W (Max.) (On operating) 7” TFT-LCD Display unit Door(individual door): ring electronic chime 3 sounds twice repeatedly, Call sound... - Page 18 ITEM CONTENTS (CDV-71BQ ) Input & out put : 6 lines in polarity, Wiring AC100-240V~, 50/60Hz Rated voltage Power consumption CDV-71BQS : 18W (MAX.) (On operating) 7” TFT-LCD Display unit Door(individual door): ring electronic chime 3 sounds twice repeatedly, Call sound...
- Page 19 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2009.09...
