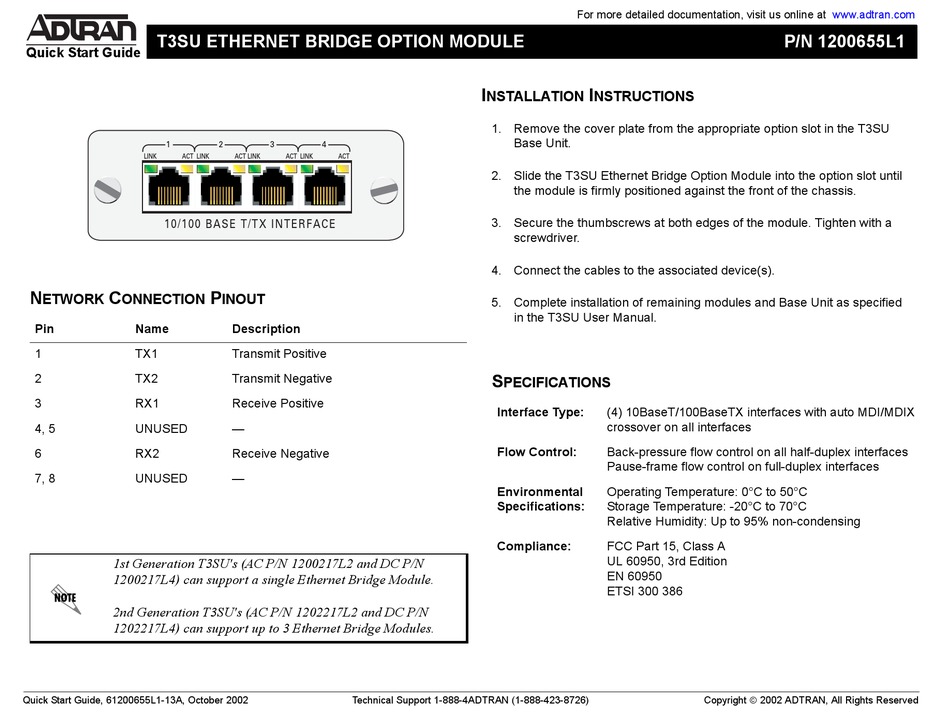

ADTRAN 1200655L1 Quick Start Manual

T3SU ETHERNET BRIDGE OPTION MODULE
Quick Start Guide
1
LINK ACT LINK
10/100 BASE T/TX INTERFACE
N C
ETWORK ONNECTION
Pin Name
1 TX1
2 TX2
3 RX1
4, 5 UNUSED
6 RX2
7, 8 UNUSED
1st Generation T3SU's (AC P/N 1200217L2 and DC P/N
1200217L4) can support a single Ethernet Bridge Module.
2nd Generation T3SU's (AC P/N 1202217L2 and DC P/N
1202217L4) can support up to 3 Ethernet Bridge Modules.
Quick Start Guide, 61200655L1-13A, October 2002
2 3 4
ACT LINK ACT LINK ACT
P
INOUT
Description
Transmit Positive
Transmit Negative
Receive Positive
—
Receive Negative
—
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
I I
NSTALLATION NSTRUCTIONS
1. Remove the cover plate from the appropriate option slot in the T3SU
Base Unit.
2. Slide the T3SU Ethernet Bridge Option Module into the option slot until
the module is firmly positioned against the front of the chassis.
3. Secure the thumbscrews at both edges of the module. Tighten with a
screwdriver.
4. Connect the cables to the associated device(s).
5. Complete installation of remaining modules and Base Unit as specified
in the T3SU User Manual.
S
PECIFICATIONS
Interface Type: (4) 10BaseT/100BaseTX interfaces with auto MDI/MDIX
crossover on all interfaces
Flow Control: Back-pressure flow control on all half-duplex interfaces
Pause-frame flow control on full-duplex interfaces
Environmental Operating Temperature: 0°C to 50°C

Specifications:

Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95% non-condensing
Compliance: FCC Part 15, Class A
UL 60950, 3rd Edition
EN 60950
ETSI 300 386
www.adtran.com
P/N 1200655L1
Copyright  2002 ADTRAN, All Rights Reserved
