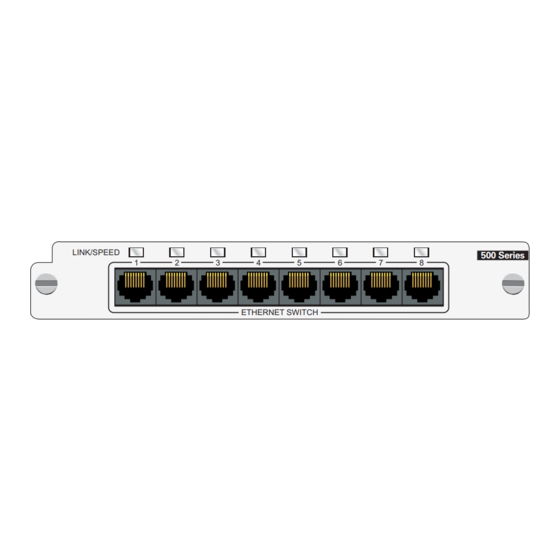

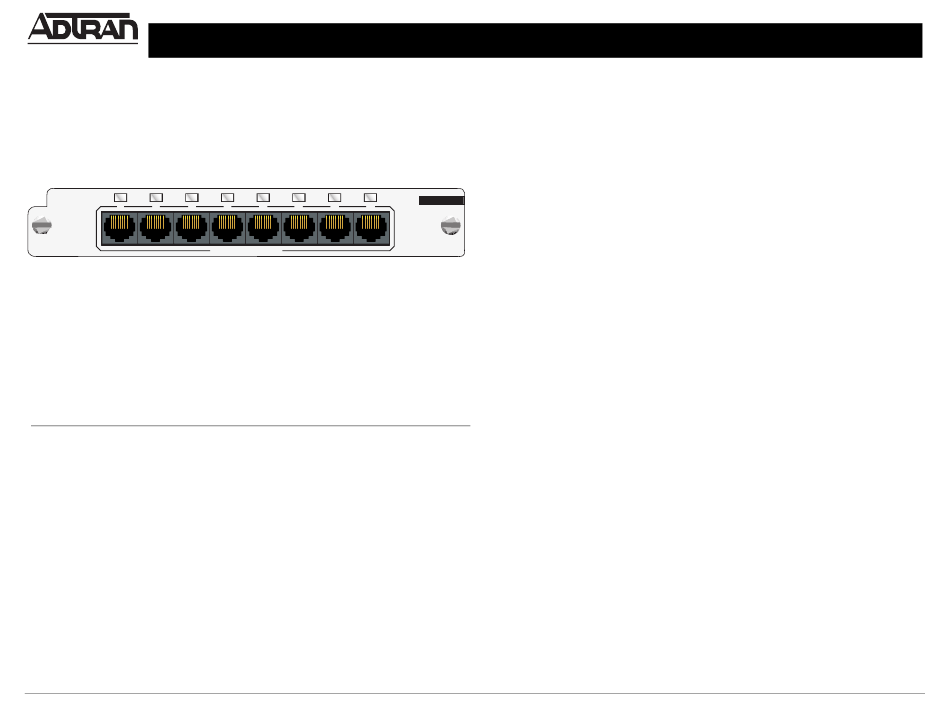

ETHERNET SWITCH OPTION MODULE
Quick Start Guide
LINK/SPEED
1 2 3
N C
ETWORK ONNECTION
Pin Name
1 TX1
2 TX2
3 RX1
4, 5 UNUSED
6 RX2
7, 8 UNUSED
Quick Start Guide, 61200766L1-13A, August 2002
4 5 6 7 8
ETHERNET SWITCH
P
INOUT
Description
Transmit Positive
Transmit Negative
Receive Positive
—
Receive Negative
—
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
I I
NSTALLATION NSTRUCTIONS
1. Remove the cover plate from the appropriate option slot in the ATLAS
550 Base Unit.
2. Slide the Ethernet Switch Option Module into the option slot until the
module is firmly positioned against the front of the chassis.
500 Series
3. Secure the thumbscrews at both edges of the module. Tighten with a
screwdriver.
4. Connect the cables to the associated device(s).
5. Complete installation of remaining modules and Base Unit as specified
in the Installation chapter of the ATLAS 550 System Manual.
S
PECIFICATIONS
Interface Type:
Flow Control:
Environmental
Specifications:
Compliance:
P/N 1200766L1
(8) 10BaseT/100BaseTX interfaces with auto MDI/MDIX
crossover on all interfaces
Back-pressure flow control on all half-duplex interfaces
Pause-frame flow control on full-duplex interfaces
Operating Temperature: 0°C to 45°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95% non-condensing
FCC Part 15, Class A
UL 60950, 3rd Edition
EN 60950
ETSI 300 386
Copyright  2002 ADTRAN, All Rights Reserved
www.adtran.com
