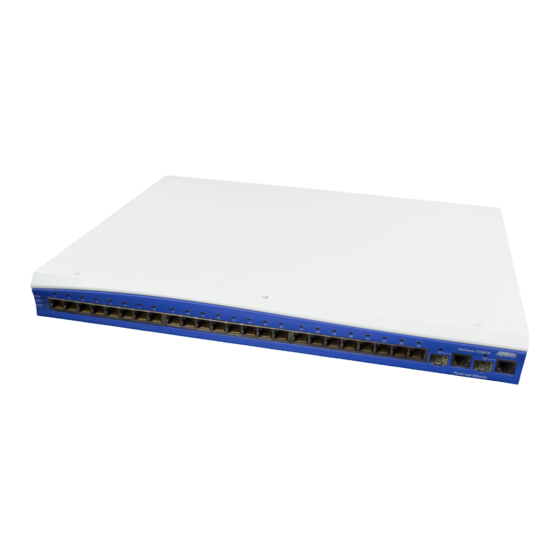

ADTRAN NETVANTA 1224 POWER OVER ETHERNET Series Quick Start Manual

ADTRAN NETVANTA 1224 POWER OVER ETHERNET Series Quick Start Manual

Advertisement

Quick Links

N
V
ET
ANTA
P/N 1200530L1, 1200570L1, 1200580L1, 1200584L1
G
S
ETTING
TARTED
Two configuration methods are available for your NetVanta switch:
Web-based graphical user interface (GUI)
AOS command line interface (CLI)
The GUI lets you configure the main unit settings and provides online guidance and explanations
for each setting. However, using the AOS CLI may be necessary for more advanced
configurations.
A
GUI
CCESS THE
You may access the web-based GUI from any web browser on your network by following these
steps:
1.
Connect the switch to your PC using any of the 24 Ethernet ports on the front of the unit.
2.
Set your PC to a fixed IP address of 10.10.10.2. If you cannot change the PC's IP address,
you will need to change the unit's IP address using the CLI. (Refer to the next two sections
for instructions.)
3.
Enter the unit's IP address in your browser address line. The default IP address is
10.10.10.1.
4.
You will then be prompted for the user name and password (the default settings are admin
and password).
5.
The initial GUI screen appears.
A
CLI
CCESS THE
Access the AOS CLI via the CONSOLE port or a Telnet session. To establish a connection to the
NetVanta switch CONSOLE port, you need the following items:
VT100 terminal or PC (with VT100 terminal emulation software)
Straight-through serial cable with a DB-9 (male) connector on one end and the appropriate
interface for your terminal or PC communication port on the other end
1.
Connect the DB-9 (male) connector of your serial cable to the CONSOLE port on the rear
panel of the unit.
2.
Connect the other end of the serial cable to the terminal or PC.
3.
Insert the connector of the provided power cord into the power interface on the rear panel of
the unit, and plug the cord into a standard electrical outlet.
4.
Once the unit is powered up, open a VT100 terminal session using the following settings:
9600 baud, 8 data bits, no parity bits, and 1 stop bit. Press <Enter> to activate the AOS CLI.
5.
Enter enable at the > prompt.
6.
Enter the enable password when prompted. The default password is password
Quick Start Guide, 61200570L1-13D, March 2008
1224 P
OWER OVER
E
THERNET
S
ERIES
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NETVANTA 1224 POWER OVER ETHERNET Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ADTRAN NETVANTA 1224 POWER OVER ETHERNET Series

  • Page 1 1224 P ANTA OWER OVER THERNET ERIES P/N 1200530L1, 1200570L1, 1200580L1, 1200584L1 ETTING TARTED Two configuration methods are available for your NetVanta switch: • Web-based graphical user interface (GUI) • AOS command line interface (CLI) The GUI lets you configure the main unit settings and provides online guidance and explanations for each setting.
  • Page 2 NABLE ELNET CCESS The following steps create a password of adtran for Telnet access. By default, Telnet access is enabled with a password of password. Verify that the prompt of your unit displays (config)#. Enter line telnet 0 4 to change the configuration parameters for the Telnet sessions.
  • Page 3 Unused Important: For additional details on product features, specifications, installation, and safety, refer to the appropriate hardware installation guide on the AOS Documentation CD shipped with the base unit and available online at www.adtran.com. Quick Start Guide, 61200570L1-13D, March 2008...
  • Page 4 ONFIGURE PPLICATION More detailed documentation for configuring your ADTRAN unit is provided on the AOS Documentation CD included in your shipment. For more detail on hardware setup, refer to the appropriate NIM quick start guides and the hardware installation guide. For more detail on configuring your system, refer to the AOS Command Reference Guide, configuration guides, and technical support notes.
