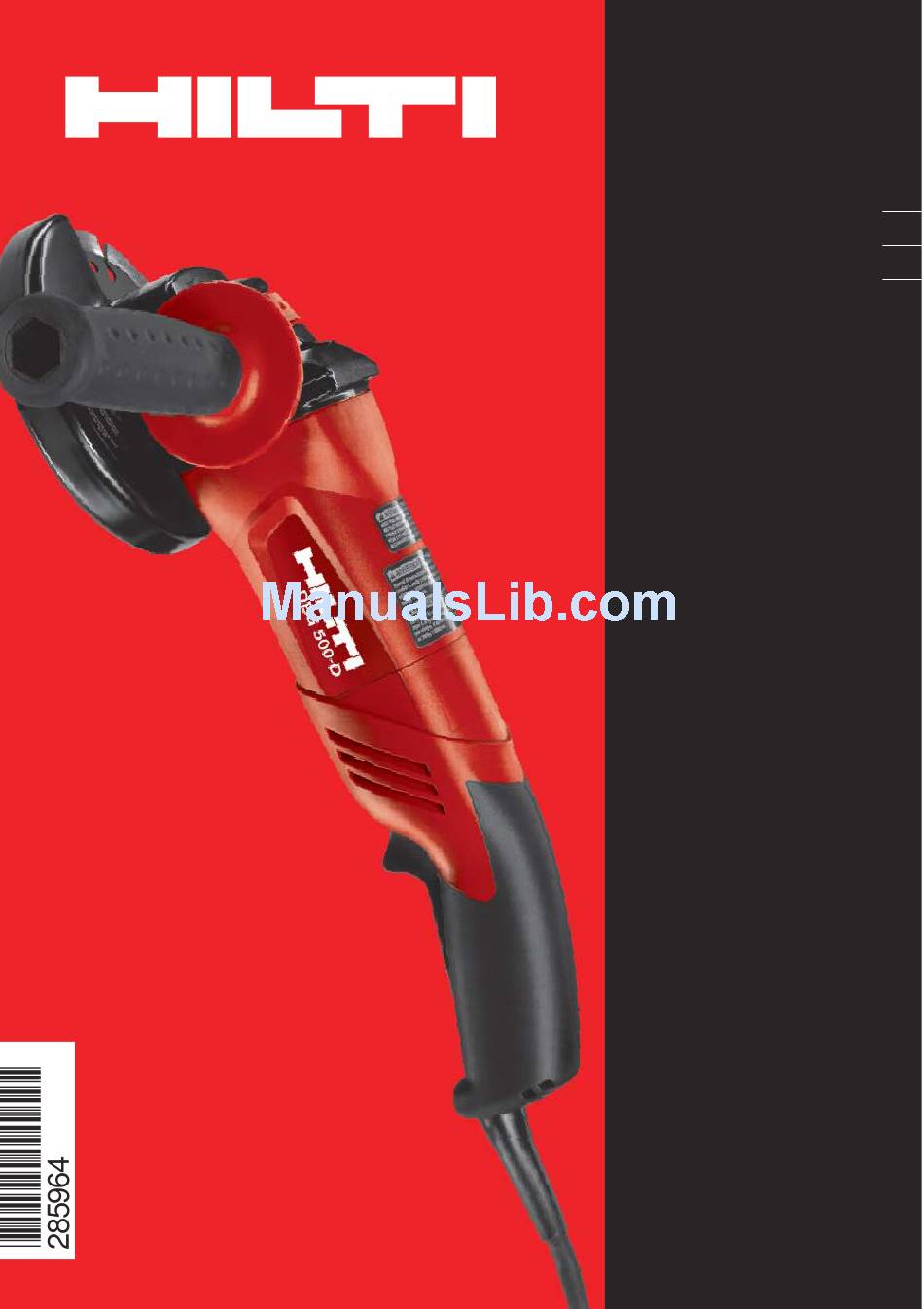

  • Page 1 DEG 500-D/ DEG 600-D/-P Operating instructions Mode d’emploi Manual de instrucciones...
  • Page 2 This product is CSA certified according to US and Canadian safety standards Ce produit est homologué conforme aux normes de sécurité américaines et canadiennes Producto homologado según normas de seguridad americanas y canadienses...

  • Page 5: Table Of Contents

    DEG 500-D/DEG 600-D/-P angle grinder Operating controls and components 0 It is essential that the operating instructions Ventilation slots are read before the tool is operated for the On / off switch (hold to run) first time. Vibration-absorbing side handle...

  • Page 6: Description

    The serial no. can be found on the left side of the Obligation signs motor housing. Make a note of this data in your operating instructions and always refer to it when making an enquiry to your Hilti representative or service department. Wear eye Wear a hard...
  • Page 7 The tool may be used only for dry cutting or grinding. Cutting or grinding materials containing asbestos is not permissible. When grinding stone, a vacuum cleaner equipped with a stone dust filter, e.g. the Hilti VCU 40 / VCD 50 vacuum cleaner, must be used.
  • Page 8 In the event of the tool being overloaded, release the pressure applied and allow the tool to run under no load for approx. 30 seconds. 2.8 Using extension cords Use only extension cords of a type approved for the application and with conductors of adequate cross section. The tool may otherwise loose performance and the extension cord may overheat.

  • Page 9: Insert Tools, Accessories

    2.14 DC EX 125-C compact dust removal hood It is recommended that a dust removal hood and a suitable Hilti vacuum cleaner are used for all cutting and slitting work on concrete or stone. These serve to protect the operator and increase the life of the tool and disc used.

  • Page 10: Technical Data

    4. Technical data Tool DEG 500-D DEG 600-D/-P Rated voltage / rated current / 120V / 11.5A / 1200W 120V / 11.5A / 1200W power input Rated frequency 60 Hz 60 Hz Rated speed under no load 11,000 r.p.m. 9,300 r.p.m.
  • Page 11 plugging in power tools that have the switch on conditions and the work to be performed. Use of invites accidents. the power tool for operations different from those intended could result in a hazardous situation. d) Remove any adjusting key or wrench before turning the power tool on.
  • Page 12 Do not use separate reducing rings or adapters quently for work on conductive materials should to enable use of grinding discs with a larger be checked at regular intervals at a Hilti Service mounting hole. Center. Under unfavorable circumstances, damp- j) If the grinding disc (or cup wheel, etc.) is...

  • Page 13: Before Use

    6. Before use 6.2.3 Removing the disc guard 1. Disconnect the supply cord plug from the power outlet. 2. Press the release button and then rotate the disc CAUTION guard until the two triangular marks on the guard Never use the tool without the disc guard. and on the tool are in alignment.

  • Page 14: Operation

    6.4.1 Fitting grinding / cutting discs using the 6.4.2 Removing grinding / cutting discs secured Kwik-Lock clamping nut 0 with the Kwik-Lock nut NOTE 1. Disconnect the supply cord plug from the power The arrow on the upper surface of the nut must be outlet.

  • Page 15: Care And Maintenance

    CAUTION 7.1 Switching on / off without locking the switch Cutting or grinding may cause splintering of the (DEG 500-D or DEG 600-D) material. Wear eye protection. 7.1.1 Switching on 1. Plug the supply cord into the power outlet. CAUTION 2.

  • Page 16: Care And Maintenance

    10. Disposal Most of the materials from which Hilti tools or machines are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old tools for recycling. Please ask your Hilti customer service department or Hilti representative for further information.
  • Page 17 Send the product and/or related parts immediately This constitutes Hilti’s entire obligation with regard upon discovery of a defect to the local Hilti marketing to warranty and supersedes all prior or contempor- organization for repair or replacement. aneous comments and oral or written agreements...
  • Page 18 Tel.: +423 / 234 21 11 Fax: +423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 3105 0505 10-Pos. 3 1 Printed in Liechtenstein © 2005 Right of technical and programme changes reserved S. E. & O.
