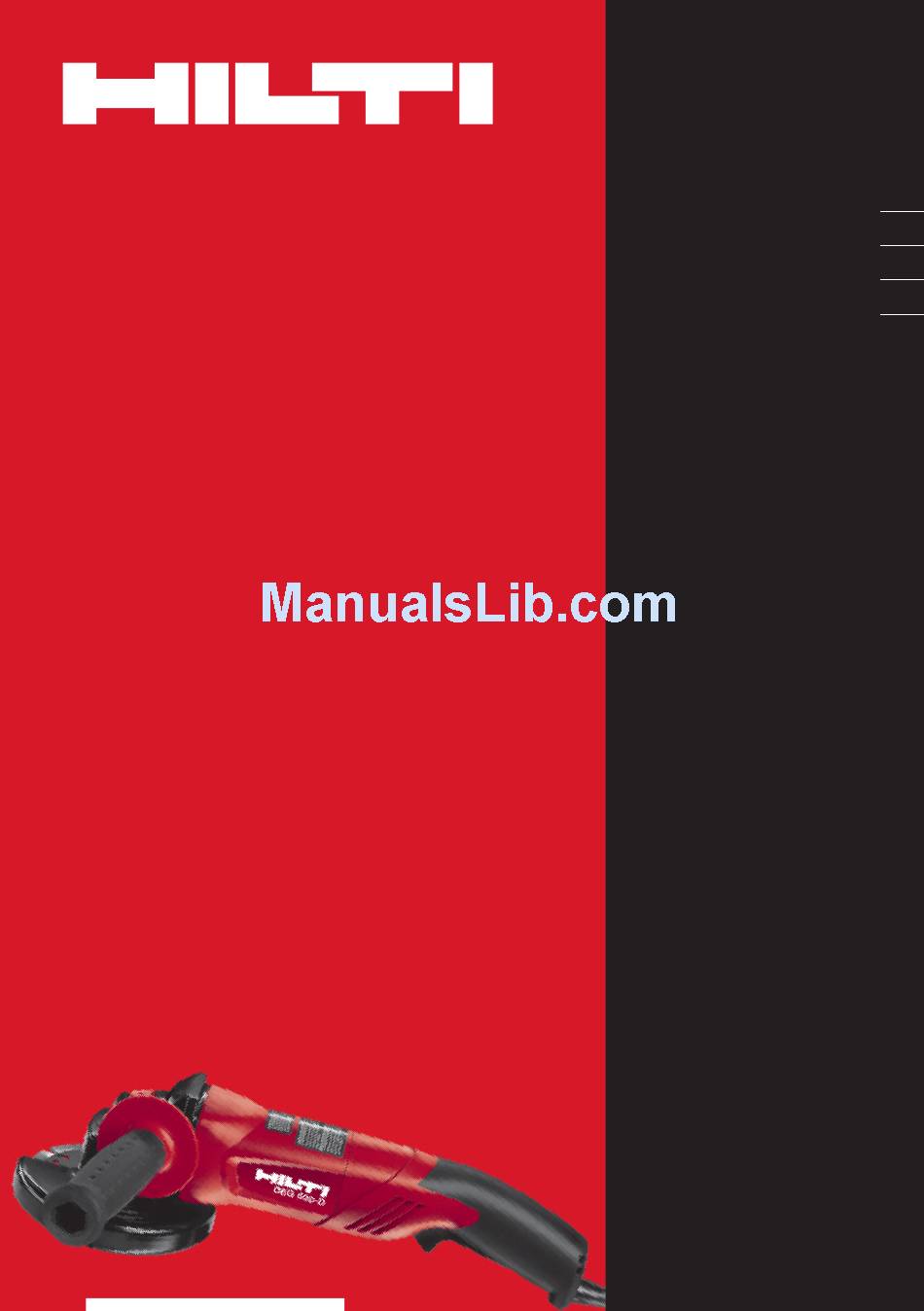

- Page 1 DEG 500-D/ DEG 600-D/-P Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções Printed: 09.12.2013 | Doc-Nr: PUB / 5138162 / 000 / 01...
- Page 2 This Product is Certified Ce produit est homologué Producto homologado por Este produto está registrado Printed: 09.12.2013 | Doc-Nr: PUB / 5138162 / 000 / 01...
- Page 3 Printed: 09.12.2013 | Doc-Nr: PUB / 5138162 / 000 / 01...
- Page 4 Printed: 09.12.2013 | Doc-Nr: PUB / 5138162 / 000 / 01...
- Page 5 Printed: 09.12.2013 | Doc-Nr: PUB / 5138162 / 000 / 01...
-
Page 6: Table Of Contents
ORIGINAL OPERATING INSTRUCTIONS DEG 500‑D/DEG 600‑D/‑P angle grinder 1 These numbers refer to the corresponding illustra- It is essential that the operating instructions tions. The illustrations can be found on the fold-out cover are read before the power tool is operated for pages. -
Page 7: Description
Use only synthetic resin-bonded, fiber-reinforced grinding discs or cutting discs approved for use at a permissible peripheral speed of at least 80 m/sec. The tool may be used only for dry cutting or grinding. When grinding stone, a vacuum cleaner equipped with a stone dust filter, e.g. a suitable Hilti vacuum cleaner, must be used. - Page 8 Take the influences of the surrounding area into account. Do not use the power tool or appliance where there is a risk of fire or explosion. To avoid the risk of injury, use only genuine Hilti accessories and insert tools. Observe the information printed in the operating instructions concerning operation, care and maintenance.
- Page 9 It is recommended that a dust removal system consisting of matched components, i.e. dust removal hood and a suitable Hilti vacuum cleaner, are used for grinding mineral materials, such as concrete or stone. These serve to protect the operator and increase the life of the power tool and disc used.
-
Page 10: Consumables
2.16 Front cover for the guard (DEG 500-D) 6 CAUTION When grinding with straight grinding discs and cutting with cutting discs in metalworking applications, use the guard with front cover. 3 Consumables Discs with a max. diameter of 125 mm / 5", for a speed of 11000/min, discs with a max. diameter of 150 mm / 6", for a speed of 9300/min and a peripheral speed of 80 m/sec, and a max. -
Page 11: Technical Data
(not for use with accessories with integrated thread) 4 Technical data Right of technical changes reserved. Tool DEG 500-D DEG 600-D/-P Rated current input Rated voltage 120 V: 11.5 A Rated voltage 120 V: 11.5 A Rated frequency 60 Hz... - Page 12 b) Do not use the power tool if the switch does not modified plugs and matching outlets will reduce risk of electric shock. turn it on and off. Any power tool that cannot be b) Avoid body contact with earthed or grounded controlled with the switch is dangerous and must be surfaces such as pipes, radiators, ranges and repaired.
- Page 13 your power tool. Incorrectly sized accessories can- and excessive accumulation of powdered metal may not be adequately guarded or controlled. cause electrical hazards. Threaded mounting of accessories must match o) Do not operate the power tool near flammable the grinder spindle thread. For accessories materials.
- Page 14 the plane of the guard lip cannot be adequately 5.6 Safety warnings specific for wire brushing protected. operations c) The guard must be securely attached to the power a) Be aware that wire bristles are thrown by the tool and positioned for maximum safety, so the brush even during ordinary operation.
- Page 15 Then allow the power tool to run frequently for work on conductive materials for 30 seconds under no load while holding it se- should be checked at regular intervals at a Hilti curely. Switch off the power tool immediately if Service Center. Under unfavorable circumstances,...
-
Page 16: Before Use
6 Before use Lift off the guard. 6.2.4 Fitting and removing the front cover (DEG 500-P) 9 Press the front cover onto the standard guard, with WARNING the closed side positioned as shown in the illustra- Never use the power tool without its matching disc tion, until it engages. -
Page 17: Operation
Use the open-end wrench to tighten the accessory the gearing section can be rotated to one of four positions securely and then release the spindle lockbutton. at 90° intervals. To remove this, follow the instructions for fitting the Disconnect the supply cord plug from the power module but carry out the steps in the reverse order. -
Page 18: Care And Maintenance
Do not operate the tool if parts are damaged or when the controls do not function faultlessly. Have The outer casing of the power tool is made from impact- the power tool repaired by Hilti Service. resistant plastic. Sections of the grip are made from a synthetic rubber material. -
Page 19: Troubleshooting
10 Disposal Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling. - Page 20 Fax:+423 / 234 29 65 www.hilti.com 1 609 92A 0JF Hilti = registered trademark of Hilti Corp., Schaan W 3105 | 1213 | 10-Pos. 3 | 1 Printed in Germany © 2013 Right of technical and programme changes reserved S. E. & O 285964 / A3 Printed: 09.12.2013 | Doc-Nr: PUB / 5138162 / 000 / 01...
