Kleenmaid KED600 Instructions For Use Manual

Kleenmaid KED600 Instructions For Use Manual

Condenser dryer
Hide thumbs

Advertisement

Quick Links

Instructions for Use
KED600
Condenser Dryer

Advertisement

loading
Need help?

Need help?

Do you have a question about the KED600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kleenmaid KED600

Summary of Contents for Kleenmaid KED600

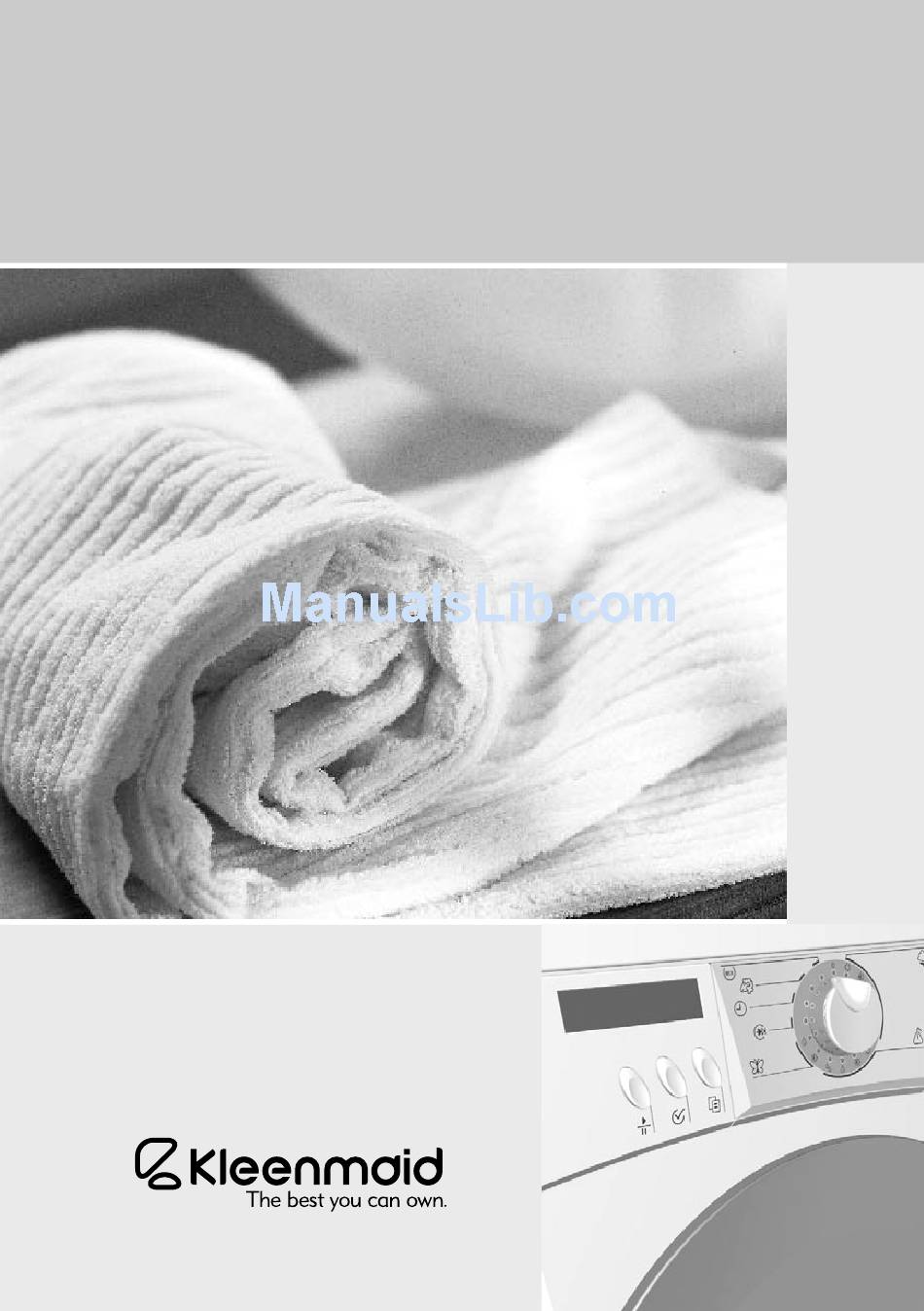

  • Page 1 Instructions for Use KED600 Condenser Dryer...

  • Page 2: Table Of Contents

    Thank you for your trust and for buying our condenser dryer. We congratulate you on your wise decision. This appliance is designed for drying clothes for home use only. The dryer enables quick drying of laundry, leaving clothes soft and fluffy without affecting the shape. Our appliances are environmentally friendly: some of the materials are recyclable while others are disposed of and destroyed.
  • Page 3 Appliance description 1. Front panel 5. Condenser 2. Drying program button 6. Cooling air slot 3 Water container 7. Legs 4. Door Dimensions of the appliance (w x d x h): Technical data 600 mm x 600 mm x 850 mm Weight (net): 43kg Weight (gross): 45kg Nominal voltage: 240 V, 50 Hz...

  • Page 4: Cautions

    Warnings It is not recommended to reduce temperature or switch off the heater, as the drying time is thus extended because of poor condensation of evaporated water. • Use the dryer to dry only laundry washed with water. Do not attempt to dry laundry, washed or cleaned with flammable detergents or solutions (gasoline, trichloroethylene etc.), as it may cause explosion.
  • Page 5 • Room where the appliance is located must be well aired to prevent back flow of gasses, released by open fire gas appliances (fireplace). To minimize the risk of fire in a tumble dryer, the following should be observed: • Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in a tumble dryer.
  • Page 6 a heat setting. Foam rubber materials can, when heated, produce fire by spontaneous combustion. • Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects of static electricity unless this practice is specifically recommended by the manufacturer of the fabric softener or product.
  • Page 7 please contact your local city office, your household waste disposal service or the shop where you purchased the product. This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.

  • Page 8: Installation And Connection

    To conceal the opening between the two appliances, a decorative trim (DECPL) is available. To order call your nearest Kleenmaid Store on 13 13 08. Do not place the appliance behind lockable door, sliding door, and door with hinges on the opposite side of the appliance.
  • Page 9 • Level the machine longitudinally and transversally by rotating the adjustable feet, thus enabling the leveling by +/- 1 cm. The surface beneath the appliance should be kept dry and clean to prevent sliding of the appliance. Do not place the dryer on a thick carpet as this could obstruct the air circulation.
  • Page 10 The appliance is connected to the power supply by Connecting to power means of a cable cord plug. The wall socket should supply be earthed (safety socket). Required nominal current and frequency are stated on the rating plate. The wiring should withstand maximum load. Electric connection and earthing should be carried out in accordance with current standards and regulations.

  • Page 11: Operation

    Operation A - program selection jog D - START/PAUSE key B - MENU key E - display C - SELECTION key Program selection jog Program symbols Moisture level Cottons very dry Synthetics dry for storage Delicates slightly damp Quick program iron dry damp for machine Timed program...
  • Page 12 - Open the dryer door by pushing the left-hand Drying procedure side of the door towards the appliance. - Sort the laundry according to the type of fabrics. Do up buttons and zippers, tie strings and pull out the pockets. Very delicate laundry should be put in a special laundry bag.
  • Page 13 selected program. If you fail to do anything within 5 minutes after starting the appliance, the display will go blank. During the drying process the display is illuminated and is switched off after the cooling stage. - Selecting language Press button C (SELECTION), and simultaneously turn the program selector jog A to the first clockwise position.
  • Page 14 additional function is selected, the display indicates relevant symbol. After the appliance is switched off, all additional functions, except the sound signal and child lock, are reset to their original settings. Start delay Default setting does not include delayed start (display indicates 00:00 hours).
  • Page 15 Quick program does not allow turning the heater off. Child lock Operation of the dryer may be protected against accidental changes of programs or functions. The function is activated by pressing the START button. By pressing any key the sound alarm signals that child lock is on.
  • Page 16 KED600 – Child Lock : Supplementary Instructions To activate : Turn the dryer on at the selector switch Press the Menu button (B) and scroll through to select the child lock function Select ‘Yes’ (C) and start the dryer (D) The child lock is now permanently on.
  • Page 17 so you can select the drying program or additional functions. Sound signal In default setting the sound signal is on. You may select to switch the sound signal off, or increase volume. Legend: sound signal off; normal sound signal setting; increased volume setting.
  • Page 18 default settings, except for the sound signal and the child lock (unless permanently inactivated). • Drying procedure Drying process is turned on by pressing the START (D) button. • If the preset delayed start was selected, the process will start when the preset time elapses. •...
  • Page 19 EXAMPLE: Selected program: cotton, slightly moist, functions selected: delayed start, decreased temperature, child lock, no sound signal). - End of drying procedure At the end of the drying procedure the display indicates END and CLEAN FILTER, and the beep is heard.
  • Page 20 Door opened If the door is opened during the drying process this will pause the operation; the display reads DOOR OPEN. When the door is closed, the drying process resumes only after the START/PAUSE button (D) is pressed. The beep reminds you that the drying process continues.
  • Page 21 • Drum empty Special functions At the beginning of drying the appliance detects moisture level of the laundry. If the appliance does not detect any laundry in the drum, a beep is heard and the display reads DRUM EMPTY and END.

  • Page 22: Tips For Drying And For Economic Use Of The Dryer

    Tips for drying and for the economic use of the dryer • Drying is economically most effective if you dry the recommended quantity of laundry per one charge (see Page 25 Program Chart). • Do not dry the laundry made of especially sensitive fibers (wool, silk), which may shrink or lose shape.

  • Page 23: Cleaning And Maintenance

    Cleaning and maintenance • After each use clean the filter, located in the inner Cleaning the filter part of the door. • Lift the filter lid. • Pull your fingers over the filter to remove fibres and threads lining. Replace the filter cover (it must snap in place at the bottom).
  • Page 24 Always switch the appliance off prior cleaning (unplug the power cord from the wall socket, or turn the program selector jog to the position “0”). • Clean the casing and drum interior with soft cloth and mild detergent. Clean the water condenser two to three times a Cleaning the water year.
  • Page 25 • Before replacing the bulb disconnect the power Replacing the bulb (only with some models) cord from the wall socket. • Open the door. • Unscrew the cover of the bulb (inside the door opening). • Replace the bulb. The bulb must be of the same type and power as indicated on the bulb and on the protective cover (max.

  • Page 26: Troubles

    Troubles Trouble Check Appliance does not • If there is current in the socket and if the fuse is work: functioning. • If the plug is correctly inserted into the socket. There is current in the • If the door is closed tightly (press it towards the socket, but the drum is appliance).

  • Page 27: Tables

    Tables Program chart Program Type of laundry Example of laundry COTTON max. load: 6.5 kg Thick or multiple layer laundry. Terry cloth, bathrobe Very dry Uniformly thick laundry, requiring little or Terry cloth, tricot laundry Dry for storage no ironing. Fine laundry requiring ironing.
  • Page 28 Program Type of laundry Example of laundry TIMED PROGRAM max. load: 3 kg 20 to 60 minutes Single pieces of thick laundry that has to Bathrobe, bathing towels, be completely dried, or a small amount of pullovers, ... laundry (up to 1 kg), ... Basket drying - Max.
  • Page 29 Program chart / additional functions Program Additional-functions Start Lower Anti- Heater Child lock Sound Drying in delay tempera- crease signal basket ture Cottons Synthetics Delicates Quick program Timed program Wool possible Remark: Both functions of temperature reduction and of heater switching-off exclude each other.
  • Page 30 Table of textile symbols Drying Drying in dryer not permitted Drain, hang on washing line and dry Do not drain, hang wet and dry Drain, lay on a flat surface and dry Machine drying not permitted Drying at normal temperature Drying at lower temperature...
  • Page 32 In addition to all statutory rights which you, the Consumer, have under the relevant laws in respect of this appliance, during the first five years of ownership as the original purchaser of this Kleenmaid appliance, we guarantee that any fault caused by faulty material or workmanship becoming apparent will be rectified free of charge for parts and labour, provided that all service is performed during normal working hours by Kleenmaid or their designated Agents.
  • Page 33 Other products available in the Kleenmaid Range of appliances Washers Dryers Dishwashers Ovens Cooktops Outdoor Cooking Centres Built In Espresso Coffee Machines Rangehoods Freestanding Ranges Sinks Waste Disposals Taps Cookware Refrigerators Freezers Wine Cellars Vacuum Cleaners For sales information on the full range of quality appliances...
