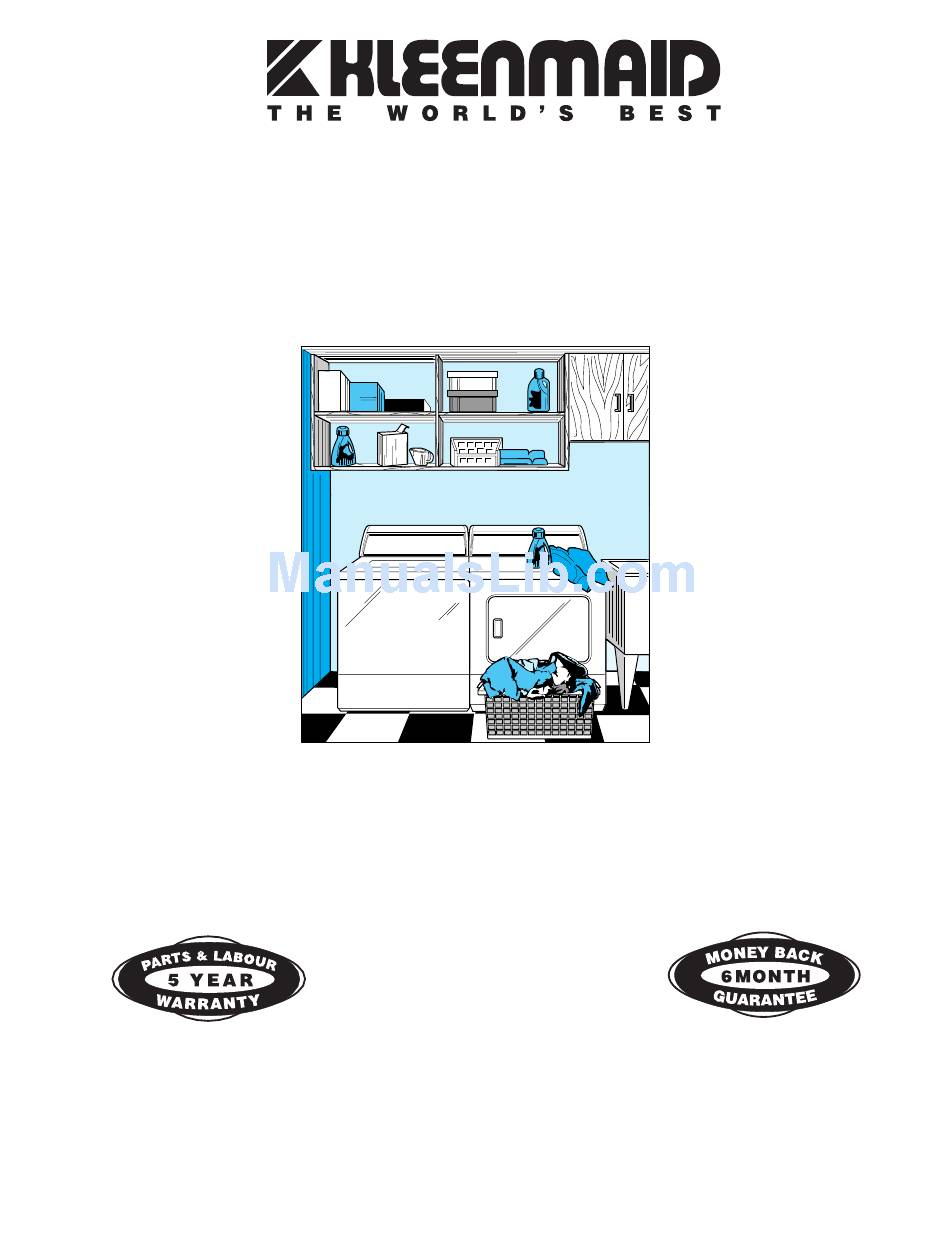

- Page 1 Use and Care Guide and Warranty Automatic Dryer D310IE3B Full Five Year Warranty Parts & Labour LEK33AW-4350 LGK33AW-3058 KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. (If the dryer changes ownership, be sure this manual accompanies the dryer.) Part No. 504057R4 March 1999...
-
Page 2: Table Of Contents
Table of Important Safety Instructions.............. 3 Before Drying..................5 Contents Energy Saving Tips................5 Helps and Hints ................5 Sort ....................6 Load ....................6 Operating Instructions ................ 7 Drying Special Items ................9 User-Maintenance ................12 Care Of Your Dryer ................ 12 Motor Overload Protector.............. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS (Save These Instructions) 10. Do not use fabric softeners or products to eliminate WARNING static unless recommended by the manufacturer of the fabric softener or product. To reduce the risk of fire, electric shock, 11. To reduce the risk of fire, DO NOT DRY plastics or serious injury or death to persons when articles containing foam rubber or similarly textured using your dryer, follow these basic... - Page 4 18. To reduce the risk of fire, DO NOT put clothes which 25. Do not tumble fibreglass curtains and draperies have traces of any flammable substances such as unless the label says it can be done. If they are dried, machine oil, flammable chemicals, thinner, etc.
-
Page 5: Before Drying
Before Drying . . . Energy Saving Tips Helps and Hints • Make sure the lint filter is always clean. WARNING • Do not overload the dryer. • Do not overdry items. To reduce the risk of fire, explosion, serious injury or death, clothes which have •... -
Page 6: Sort
Sort Load If you have correctly sorted the items for washing, they Do not overload your dryer. Bulk, not weight, determines should be properly sorted for drying too. the load size. If the dryer is overloaded, it could cause discoloration or permanent heat damage to the load. Lights Separate: There should be space in the dryer for the clothes to... -
Page 7: Operating Instructions
Operating Instructions . . . NOTE: The timer knob will not advance as quickly in the AUTOMATIC cycles as it does in the TIME DRY WARNING cycle. The time it takes for the timer to advance depends on the type and size of the load being dried. To reduce the risk of fire, electric shock, Automatic Regular/Delicate Cycle serious injury or death to persons, read the... -
Page 8: End Of Cycle Signal
End of Cycle Signal 3. Add clothes loosely into dryer drum. Add fabric softener sheet, The volume of the signal tone may be set on OFF, LOUD if desired. or between the two selections. If a volume level is selected, the signal will let you know when the cycle is done. -
Page 9: Drying Special Items
Drying Special Items . . . Type of Load Special Instructions Bedspreads Choose heat for fabric. Dry one double or two single spreads. Chenille and tufted spreads will shed lint and should be dried by themselves. New spreads especially, will contain loose lint. Tumble on NO HEAT setting before washing to remove loose lint. - Page 10 Type of Load Special Instructions Draperies Remove hooks and weights before washing. Choose heat for fabric and allow space in the dryer for tumbling. Some draperies may be removed when slightly damp and hung immediately. Lined draperies should be dry-cleaned because they have a tendency to pucker.
- Page 11 Type of Load Special Instructions Pillows Feather and Down-Filled Ticking must be strong and seams secure. If in doubt, sew pillow into a case or use a zippered pillowcase to prevent feathers from coming out. After washing, shake pillow to fluff feathers. Dry one large or two smaller pillows. Use TIME DRY cycle.
-
Page 12: User-Maintenance
User-Maintenance . . . Care Of Your Dryer IMPORTANT: The use of chlorine bleach for WARNING removing any discolourations should be avoided because bleach could damage the finish. To reduce the risk of an electric shock, Cabinet serious injury or death, disconnect the electrical service to the dryer before cleaning Wipe dryer cabinet as needed. -
Page 13: Lint Filter
Lint Filter . . . The lint filter is located at the front of the dryer in the TO REPLACE LINT FILTER: Place filter in door recess lower part of the door opening. and push in firmly. Be sure to replace the filter with the words facing the front of the dryer. -
Page 14: Before You Call For Service
Before You Call For Service . . . (You may save time and money by checking the following:) If Your Dryer: Doesn’t Dry Won’t Start Won’t Heat Clothes Possible Reason — Do This To Correct Satisfactorily Be sure the power cord is plugged all the way into the electrical •... -
Page 15: If Service Is Required
If Service Is Required . . . If service is required, contact Kleenmaid Customer Care Please include a copy of your bill of sale and any service Centre on FREECALL 1-800-072-144. receipts you have. Kleenmaid WARNING P.O. Box 5560 Maroochydore South QLD 4558... - Page 16 504057...
- Page 17 504057...
- Page 18 504057...
-
Page 19: Automatic Dryer Warranty
Kleenmaid dryer, we the purchaser of the Kleenmaid dryer, we guarantee that guarantee that any fault caused by faulty material or any fault caused by faulty material or workmanship... -
Page 20: Information For Handy Reference
Information For Handy Reference . . . Kleenmaid P.O. Box 5560 Maroochydore South QLD 4558 Date Purchased Model Number Serial Number Store Name Store Address Phone Number Service Agency Service Agency Address Phone Number NOTE: Record this information and keep your sales slip. Model and serial numbers are located on the nameplate.
