Kleenmaid LEK37A Installation Manual

Kleenmaid LEK37A Installation Manual

Automatic dryer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Automatic Dryers
D715I
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 506066R3
May 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEK37A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kleenmaid LEK37A

Summary of Contents for Kleenmaid LEK37A

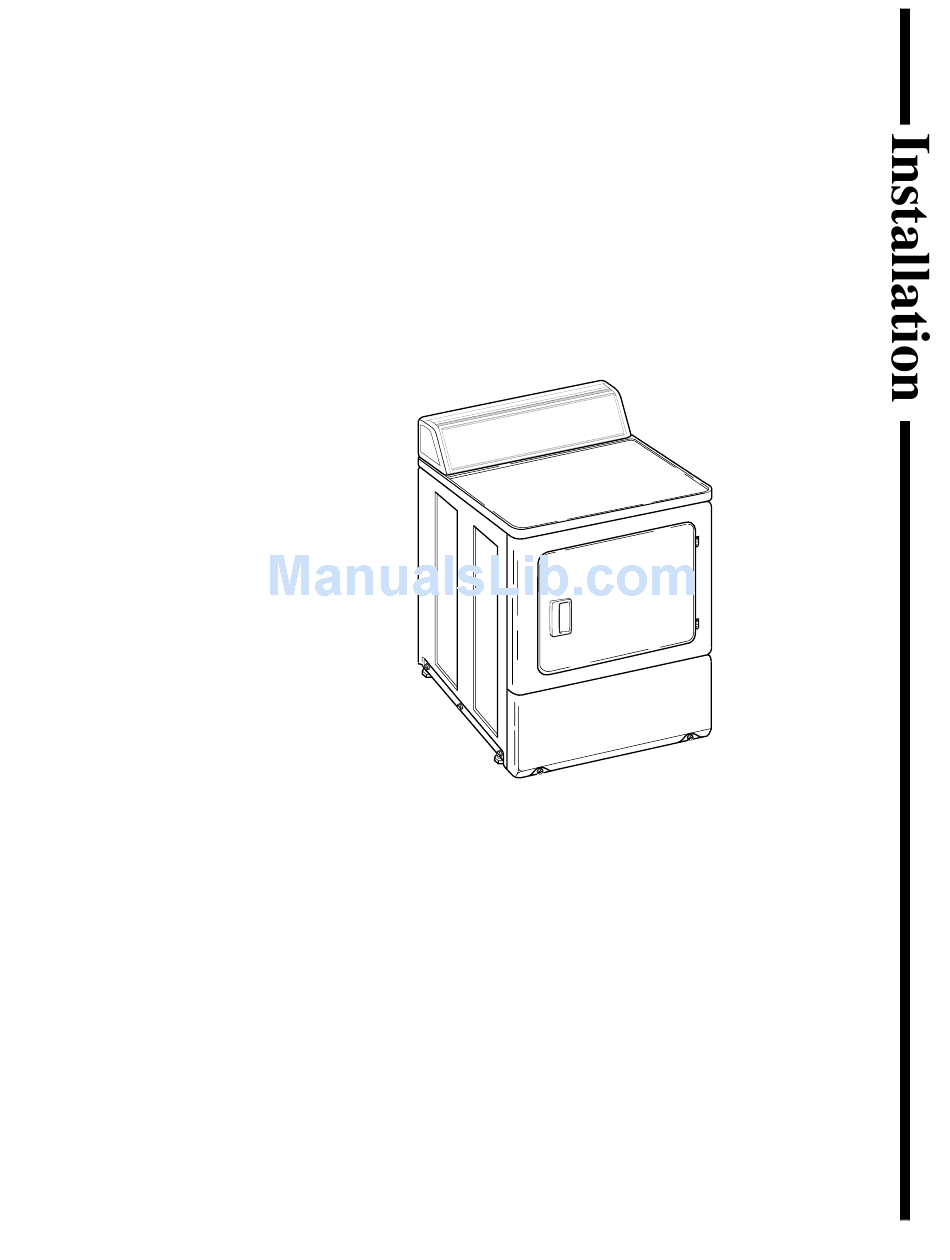

  • Page 1 Automatic Dryers D715I Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 506066R3 May 2005...
  • Page 3 IMPORTANT: The electrical installation in the site shall comply with the latest edition of the Australian Electrical Standards AS3000, SAA wiring rules and such local regulations that might apply. The gas dryer installation must conform with the local regulations and AS5601 / AG601 “Gas Installations.” Read complete Installation and Operation Instructions before using dryer.
  • Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506066...

  • Page 5: Table Of Contents

    Table of Replacement Parts ................Installation................... Contents Before You Start ................... Tools ....................Gas ....................Location ................... Exhaust..................... Electrical ..................Installing the Dryer ................Step 1: Position and Level the Dryer ..........Step 2: Connect Dryer Exhaust System ........... Step 3: (Gas Dryer ONLY) Connect Gas Supply Pipe ....10 Step 4: Wipe Out Inside of Dryer ............
  • Page 6 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506066...

  • Page 7: Replacement Parts

    Replacement Parts If replacement parts are required, contact the source from which you purchased your dryer. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506066...
  • Page 8 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506066...

  • Page 9: Installation

    Installation 20.3 cm (8 in.) 39.1 cm (15.4 in.) 11.4 cm 10.2 cm (4.5 in.) (4 in.) 1.1 cm (0.4 in.) 71.1 cm 59.7 cm 68.3 cm (28 in.) (23.5 in.) (26.9 in.) DRY2002N ELECTRIC DRYERS DRY2002N *With leveling legs turned into base. 20.3 cm (8 in.) 39.1 cm...

  • Page 10: Before You Start

    Installation Before You Start Exhaust Use rigid metal duct and exhaust the dryer to the Tools outside by the shortest route possible. For most installations, the basic tools you will need are: D314IE0A D314I30A Figure 2 NOTE: For more detailed information, refer to D818I section on Dryer Exhaust Requirements.

  • Page 11: Installing The Dryer

    Installation Installing the Dryer Step 2: Connect Dryer Exhaust System For further assistance refer to sections on Location Step 1: Position and Level the Dryer Requirements and Dryer Exhaust Requirements. For further assistance refer to section on Location Requirements. WARNING Install dryer before washer.

  • Page 12: Step 3: (Gas Dryer Only) Connect Gas Supply Pipe

    Installation Step 3: (Gas Dryer ONLY) Connect Gas 3. Connect to gas supply pipe. Supply Pipe 4. Tighten all connections securely. Turn on gas and check all pipe connections (internal and external) For further assistance, refer to section on Gas for gas leaks with a non-corrosive leak detection Requirements.

  • Page 13: Step 4: Wipe Out Inside Of Dryer

    Installation Step 4: Wipe Out Inside of Dryer Step 5: Plug In the Dryer Before using dryer for the first time, use an all-purpose Refer to section on Electrical Requirements, and cleaner, or a detergent and water solution, and a damp connect the dryer to an electrical power source.

  • Page 14: Heat Check

    Installation Heat Check WARNING Electric Dryers To reduce the risk of serious injury or death, Close the loading door and start the dryer in a heat the lower front panel must be in place setting (refer to the Operating Instructions supplied during normal operation.

  • Page 15: Reversing Door Procedure

    Installation Reversing Door Procedure The door on this dryer is completely reversible. To reverse door proceed as follows: Remove four hinge Remove all nine screws. attaching screws. D675I D272P D675I Rotate door panel Pull bottom of 180 degrees door liner out, as shown.

  • Page 16: Manufactured (Mobile) Home Installation

    Installation Manufactured (Mobile) Home • Exhaust ducts MUST NOT be connected with sheet metal screws or fasteners which extend into Installation the duct. • Exhaust duct must not be connected to any other duct, vent or chimney. IMPORTANT: Installation must conform to the Manufactured Home Construction •...

  • Page 17: Electrical Requirements

    Installation Electrical Requirements Electric Dryers NOTE: The wiring diagram is located inside the control hood. IMPORTANT: The electrical installation in the site shall comply with the latest edition of Australian Electrical Standards, AS3000, SAA wiring rules, and such local regulations that might apply. This dryer is designed to be operated on a two wire, plus earth, 240 Volt, 50 Hertz, single-phase circuit, fused at 20 amperes.

  • Page 18: Gas Dryers

    Installation Gas Dryers NOTE: The wiring diagram is located inside the control hood. IMPORTANT: The electrical installation in the site shall comply with the latest edition of Australian Electrical Standards, AS3000, SAA wiring rules, and such local regulations that might apply. This dryer is designed to be operated on a two wire, plus earth, 240 Volt, 50 Hertz, single-phase circuit, fused at 10 amperes.

  • Page 19: Earthing Instructions

    Installation Earthing Instructions Do not modify the plug provided with the dryer – if it will not fit the outlet, have a proper outlet installed by The dryer must be earthed. In the event of malfunction a qualified electrician. or breakdown, earthing will reduce the risk of electric If the electrical supply does not meet the above shock by providing a path of least resistance for specifications and/or you are not sure your home has...

  • Page 20: Gas Requirements

    Installation Gas Requirements WARNING (Gas Dryers) To reduce the risk of gas leaks, fire or NOTE: The gas service to a gas dryer must explosion: conform with the local codes and ordinances and • The dryer must be connected to the type of AS5601 / AG601 “Gas Installations.”...
  • Page 21 Installation NOTE: When connecting gas supply line, a 7. Be sure the shut-off valve in your dryer is OPEN. pressure test point must be installed downstream Your dryer is shipped with the valve open. from the shut-off valve for checking inlet gas 8.

  • Page 22: Location Requirements

    Installation Location Requirements Leveling legs can be adjusted from inside the dryer with a 1/4 inch driver. All four legs must rest firmly on Select a location with a solid floor. Dryers installed in the floor so the weight of the dryer is evenly residential garages must be elevated 46 cm (18 inches) distributed.

  • Page 23: Dryer Exhaust Requirements

    Installation Dryer Exhaust Requirements Exhaust System Materials Exhaust duct must be 10.2 cm (4 inches) in diameter WARNING having no obstructions. Rigid metal duct is recommended. Non-combustible flexible metal duct is A clothes dryer produces combustible lint. acceptable. Do not use plastic or thin foil ducting, To reduce the risk of fire and combustion because it contributes to poor drying performance and gas accumulation the dryer MUST be...

  • Page 24: Exhaust Direction

    Installation Exhaust Direction The dryer can be exhausted to the outdoors through the back, left, right or bottom of the dryer. EXCEPTION: Gas dryers cannot be vented out the left side because of the burner housing. Dryer is shipped from factory ready for rear exhaust; no kits required.

  • Page 25: Exhaust System Maintenance

    Installation Exhaust System Maintenance Dryer Airflow The dryer interior and the complete exhaust system Efficient dryer operation requires proper dryer airflow. should be inspected after one year of use and cleaned Proper dryer airflow can be evaluated by measuring if necessary. Inspect and clean exhaust duct every one the static pressure.
  • Page 26 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506066...

  • Page 27: Maintenance

    Maintenance Lubrication Exhaust System All moving parts are sealed in a permanent supply of The exhaust duct should be inspected after one year of lubricant or are equipped with oilless bearings. use and cleaned if necessary. Inspect and clean exhaust Additional lubrication will not be necessary.
  • Page 28 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506066...

  • Page 29: Information For Handy Reference

    Information for Handy Reference Date Purchased Model Number Serial Number Store Name Store Address Phone Number Service Agency Service Agency Address Phone Number NOTE: Record the above information and keep your sales slip. Model and serial numbers are located on the nameplate. Customer Care Centre and Information: 1300 652 100...
  • Page 30 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506066...

  • Page 32: Installer Checklist

    Installer Checklist Fast Track for Installing the Dryer (Refer to the manual for more detailed information) • Position and Level the Dryer. • Wipe Out Inside of Dryer. LEVEL LEVEL D255I D256I D618I D618I D259I CHECK CHECK • Plug In the •...

This manual is also suitable for:

Lgk37a
