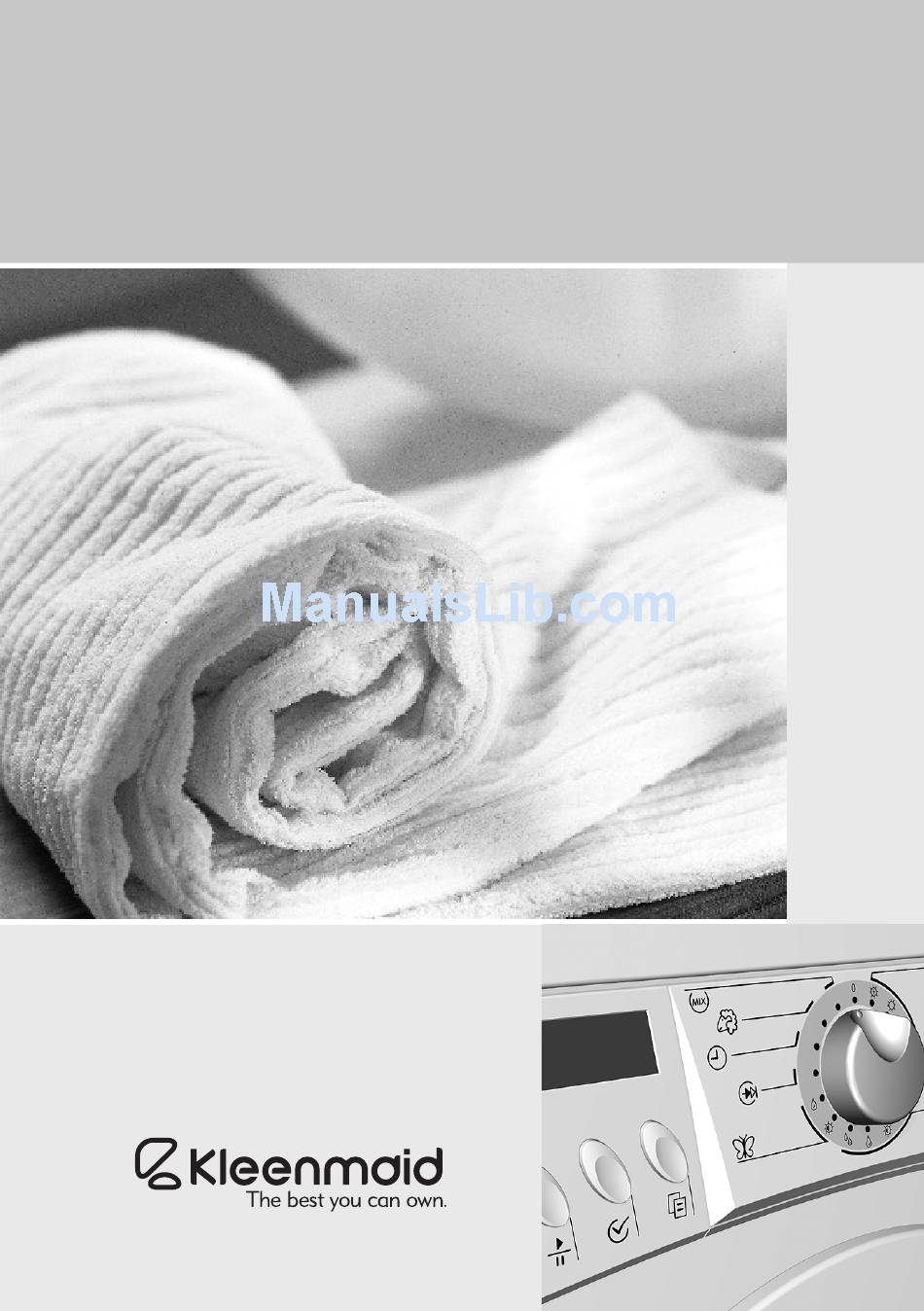

- Page 1 Instructions for Use KED601 Condenser Dryer...
-
Page 2: Table Of Contents
Thank you for your trust and for buying our condenser dryer. We congratulate you on your wise decision. This appliance is designed for drying clothes for home use only. The dryer enables quick drying of laundry, leaving clothes soft and fluffy without affecting the shape. -
Page 3: Appliance Description
Appliance description 1. Front panel 5. Condenser 2. Drying program button 6. Cooling air slot 3 Water container 7. Legs 4. Door Dimensions of the appliance (w x d x h): Technical data 600 mm x 600 mm x 850 mm Weight (net): 43kg Weight (gross): 45kg Nominal voltage: 40 V, 50 Hz... -
Page 4: Warnings
Warnings It is not recommended to reduce the temperature or switch off the heater, as the drying time will be extended due to poor condensation of evaporated water. • Use the dryer to dry only laundry washed with water. Do not attempt to dry laundry, washed or cleaned with flammable detergents or solutions (gasoline, trichloroethylene etc.), as it may cause explosion. - Page 5 heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil affected items can prevent heat from escaping and so create a fire hazard.
- Page 6 The belt can be replaced by a servicing engineer only, who incorporates an original spare part with the marking OPTIBELT EPH 1906, code 104265. The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 7: Installation And Connection
Use supplied vacuum feet to prevent sliding of the appliance. Washing machine hardtop must be wooden or metallic. To conceal the opening between the two appliances, a decorative trim (DECPL) is available. To order call your nearest Kleenmaid Store on 13 13 08. - Page 8 Do not place the appliance behind a lockable door, sliding door or door with hinges on the opposite side of the appliance. Place the appliance in the room ensuring free opening of the dryer door. • Level the machine longitudinally and transversally by rotating the adjustable feet, thus enabling the leveling by +/- 1 cm.
- Page 9 The appliance is connected to the power supply by Connecting to power means of a cable cord plug. The wall socket should supply be earthed (safety socket). Required nominal current and frequency are stated on the rating plate. The wiring should withstand maximum load. Electric connection and earthing should be carried out in accordance with current standards and regulations.
-
Page 10: Operation
Operation A - program selection jog D - START/PAUSE key B - MENU key E - display C - SELECTION key Program selection jog Program symbols Moisture level Cottons very dry Synthetics Delicates dry for storage Quick program slightly damp Timed program iron dry Wool... - Page 11 - Open the dryer door by pushing the left-hand Drying procedure side of the door towards the appliance. - Sort the laundry according to the type of fabrics. Do up buttons and zippers, tie strings and pull out the pockets. Very delicate laundry should be put in a special laundry bag.
- Page 12 selected program. If you fail to do anything within 5 minutes after starting the appliance, the display will go blank. During the drying process the display is illuminated and is switched off after the cooling stage. - Selecting language Press button C (SELECTION), and simultaneously turn the program selector jog A to the first clockwise position.
- Page 13 additional function is selected, the display indicates relevant symbol. After the appliance is switched off, all additional functions, except the sound signal and child lock, are reset to their original settings. Start delay Default setting does not include delayed start (display indicates 00:00 hours).
- Page 14 Quick program does not allow turning the heater off. Child lock Operation of the dryer may be protected against accidental changes of programs or functions. The function is activated by pressing the START button. By pressing any key the sound alarm signals that child lock is on.
- Page 15 so you can select the drying program or additional functions. Sound signal In default setting the sound signal is on. You may select to switch the sound signal off, or increase volume. Legend: sound signal off; normal sound signal setting; increased volume setting.
- Page 16 default settings, except for the sound signal and the child lock (unless permanently inactivated). • Drying procedure Drying process is turned on by pressing the START (D) button. • If the preset delayed start was selected, the process will start when the preset time elapses. •...
- Page 17 EXAMPLE: Selected program: cotton, slightly moist, functions selected: delayed start, decreased temperature, child lock, no sound signal). - End of drying procedure At the end of the drying procedure the display indicates END and CLEAN FILTER, and the beep is heard.
- Page 18 Door opened If the door is opened during the drying process this will pause the operation; the display reads DOOR OPEN. When the door is closed, the drying process resumes only after the START/PAUSE button (D) is pressed. The beep reminds you that the drying process continues.
- Page 19 • Drum lamp Special functions The drum is illuminated when the appliance door is open. If the door is open for more than 5 minutes and no changes to the settings have been made, the lamp goes off. • Display illumination Display illuminates when the program selection jog is turned to any program position.
-
Page 20: Tips For Drying And For The Economic Use Of The Dryer
Tips for drying and for the economic use of the dryer • Drying is economically most effective if you dry the recommended quantity of laundry per one charge (see Page 26 & 27 Program Chart). • Do not dry laundry made of sensitive fibres (wool, silk), that may shrink or lose shape. -
Page 21: Cleaning And Maintenance
Cleaning and maintenance • After every drying clean the filter, located in the Cleaning the filter inner part of the door. • Lift the filter lid (Fig.). • Pull your fingers over the filter to remove fibers and threads lining. Replace the filter cover. •... - Page 22 Always switch the appliance off prior cleaning (unplug the power cord from the wall socket, or turn the program selector jog to the position “0”). • Clean the casing and drum interior with soft cloth and mild detergent. Clean the water condenser two to three times a Cleaning the water year.
- Page 23 After five drying cycles you need to do the following (condenser appliances only): • remove, clean/wash and refit the filters on the interior side of the door and the bottom side of door opening; • remove, clean/wash and refit water condenser; •...
-
Page 24: Troubles
Troubles External interferences (for example electrical wiring) could induce signalization of different faults. For example..- switch the appliance off, and wait for a few seconds; - switch the appliance back on and repeat the drying program. If the fault continues call an authorised service agent. - Page 25 In case of certain functional failures the appliance signals with a beep and relevant reading flashing on the display. If a failure occurs due to incorrect installation or inappropriate use of the appliance, the warranty is void, and the repair bill is charged to the user. In case of F0, F1, F2, F3, F4 failures, contact your service technician without hesitation.
-
Page 26: Tables
Tables Program chart Program Type of laundry Example of laundry COTTON max. load: 6.5 kg Thick or multiple layer laundry. Terry cloth, bathrobe Very dry Thick laundry not requiring ironing Terry cloth, tricot laundry Uniformly thick laundry, requiring little or Terry cloth, tricot laundry Dry for storage no ironing. - Page 27 Program Type of laundry Example of laundry TIMED PROGRAM max. load: 3 kg 0 to 60 minutes Single pieces of thick laundry that has to Bathrobe, bathing towels, be completely dried, or a small amount of pullovers, ... laundry (up to 1 kg), ... Basket drying - Max.
-
Page 28: Additional Functions
Program chart / additional functions Program Additional-functions Start Lower Anti- Heater Child lock Sound Drying in delay tempera- crease signal basket ture Cottons Synthetics Delicates ... - Page 29 Table of textile symbols Drying Drying in dryer not permitted Drain, hang on washing line and dry Do not drain, hang wet and dry Drain, lay on a flat surface and dry Machine drying not permitted Drying at normal temperature Drying at lower temperature...
- Page 31 In addition to all statutory rights which you, the Consumer, have under the relevant laws in respect of this appliance, during the first five years of ownership as the original purchaser of this Kleenmaid appliance, we guarantee that any fault caused by faulty material or workmanship becoming apparent will be rectified free of charge for parts and labour, provided that all service is performed during normal working hours by Kleenmaid or their designated Agents.
- Page 32 Other products available in the Kleenmaid Range of appliances Washers Dryers Dishwashers Ovens Cooktops Outdoor Cooking Centres Built In Espresso Coffee Machines Rangehoods Freestanding Ranges Sinks Waste Disposals Taps Cookware Refrigerators Freezers Wine Cellars Vacuum Cleaners For sales information on the full range of quality appliances...
