- Page 1 Instructions for use and warranty details Clothes Dryer Model No.: LDVF70...
- Page 2 Once installation is complete, please read this instruction manual carefully and get to know the controls and the features of your new Kleenmaid appliance. These simple instructions will enable you to achieve excellent results from the very first time you use it.
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ........... 4 INSTALLATION Product Description ..........10 Installation ............10 OPERATION Quick Start ............... 13 Before each Drying Load .......... 14 Control Panel ............. 15 Drying Program Table ..........16 MAINTENANCE Cleaning and Care ............. 17 Trouble Shooting .......... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions CAUTION: RISK OF FIRE! • The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 5 SAFETY INSTRUCTIONS • Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. • Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
- Page 6 SAFETY INSTRUCTIONS • Ventilation openings in the base must not be obstructed by carpets or other floor coverings. • Plug must be accessible after installation. • Warning: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
- Page 7 SAFETY INSTRUCTIONS Power Supply and Grounding • The dryer employs alternating current with the rated voltage and frequency. When the voltage fluctuates up to 6% of rated voltage, the dryer can work normally. • A special power socket with a capacity 10A for the dryer should be close to the dryer ≥...
- Page 8 SAFETY INSTRUCTIONS • Precautions Install or store the dryer where it will not Keep area around the exhaust opening and be exposed to temperatures below adjacent surrounding areas free from the freezing or exposed to water or weather, accumulation of lint, dust and dirt. An which could cause permanent damage obstructed port might reduce the airflow.
- Page 9 SAFETY INSTRUCTIONS Do not allow children on or in the appliance. Do not use the machine when your hands are Close supervision of children is necessary wet. when the appliance is used near children. The exhaust air must not be discharged into Do not store plastic, paper or clothing that a flue which is used for exhausting fumes may burn or melt on top of the dryer during...
-
Page 10: Installation

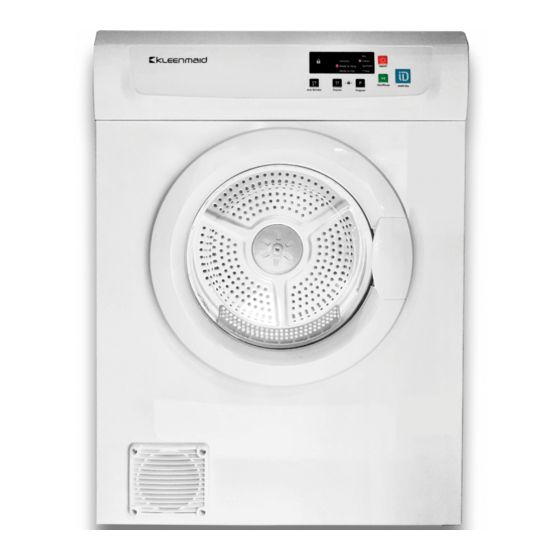

INSTALLATION Product Description Top board Side panel Control panel Tumble Door Switch Power plug Door Filter Front vent flange Front panel Installation Packing the clothes dryer • Unpacking the clothes dryer • Warning! ！ • Packaging material (e.g. Films, Styrofoam) can be dangerous for children. •... - Page 11 Wall Hanging Installation Instructions on page 10 of the user manual. • Before making preparations for or commencing installation, the installer should refer to the current online version of the User Manual, which is available on the Kleenmaid website (see back cover for details).
-
Page 13: Operation
OPERATION Quick Start Note! Before use, please make sure the tumble dryer is installed properly. Before Drying plug in load close the door Drying select function start or default After Drying Buzzer beeps and "0:00" shows on the display. unload clean filter unplug... -
Page 14: Before Each Drying Load
OPERATION Before each Drying Load Before drying, thoroughly spin the laundry in a washing machine. High spin speed can reduce the drying time and save energy consumption. For uniform drying result, sort the laundry according to fabric type and drying program. Before drying, please close zips, hooks and eyelets, do up buttons, tie fabric belts, etc. -
Page 15: Control Panel
Intelli-Dry electronic controls with 3 levels - Ready to Iron, Ready to Hang and Extra Dry Wrinkle wrinkle Different Dryer cycles (1 Hour, Cotton, Synthetic or Mix) can be selected according to the user's needs for the most effective drying results. Wrinkle Wrinkle to start the program... -
Page 16: Drying Program Table
OPERATION Drying Program Table Program Application/Properties Load Extra Dry For single or multi-layer cotton laundry to be dried completely for direct storage. Cotton 7.0kg Ready to Hang Ready to For single layer cotton laundry to remain damp for ironing. Iron Extra Dry 3.5kg For thick or multi-layer mixed fabrics to be dried completely . -
Page 17: Maintenance
MAINTENANCE Cleaning and Care Filter clean • Clean the lint filter after each use. Remove the filter by pulling it straight up. • Filter cleaning Use a cloth or your hands to remove lint. • Install filter If the filter is cleaned by damp cloth or water, please dry thoroughly before installation. - Page 18 MAINTENANCE Safety reset 1. This dryer has a safety cut out switch which is activated by temperature. 2. If your dryer is not heating this button must be reset, before the dryer can heat again. You may need to wait 10 minutes for cooling down. The safety reset button is on the backboard of the dryer.
-
Page 19: Trouble Shooting
MAINTENANCE Trouble Shooting Problem Cause Solution • • Power cut off. Wait for restoration of electricity. • • The power plug is not Check the power socket to make sure the plug Dryer does plugged firmly. is inserted firmly. • The dryer is overloaded. -
Page 20: Technical Specifications
Hang】flashing problem occurs. LED【Ready to NTC or PCB failure Hang】flashing Temperature Sensor has LED【Extra short circuited or PCB fault Dry】flashing Technical Specification Model LDVF70 Parameters Dimension 555*595*840(mm) (L*W*H) Rated input power 2000W Rated voltage 220-240V~ Rated frequency 50Hz Weight of product... - Page 21 The benefits given to you under this Kleenmaid Warranty are in addition to other rights and remedies to which you may be entitled under the Australian Consumer Law in relation to the Product to which this Kleenmaid Warranty relates. Subject to the conditions below, the Product is warranted by Kleenmaid and/or its agents to be free from defects in materials and workmanship for the Warranty Period for normal Domestic Use.
- Page 22 13. Kleenmaid accepts no liability for items that are lost, damaged, or stolen as a result of freight, transport or storage. If you are required to transport the Product to an authorised service centre, you must ensure that it is securely packed and insured.
- Page 23 This page intentionally left blank.
- Page 24 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding ovens Refrigerators & Freezers Beverage Serving Cabinets Water Dispensers Vacuum Cleaners Compass Capital Services Pty Limited...
