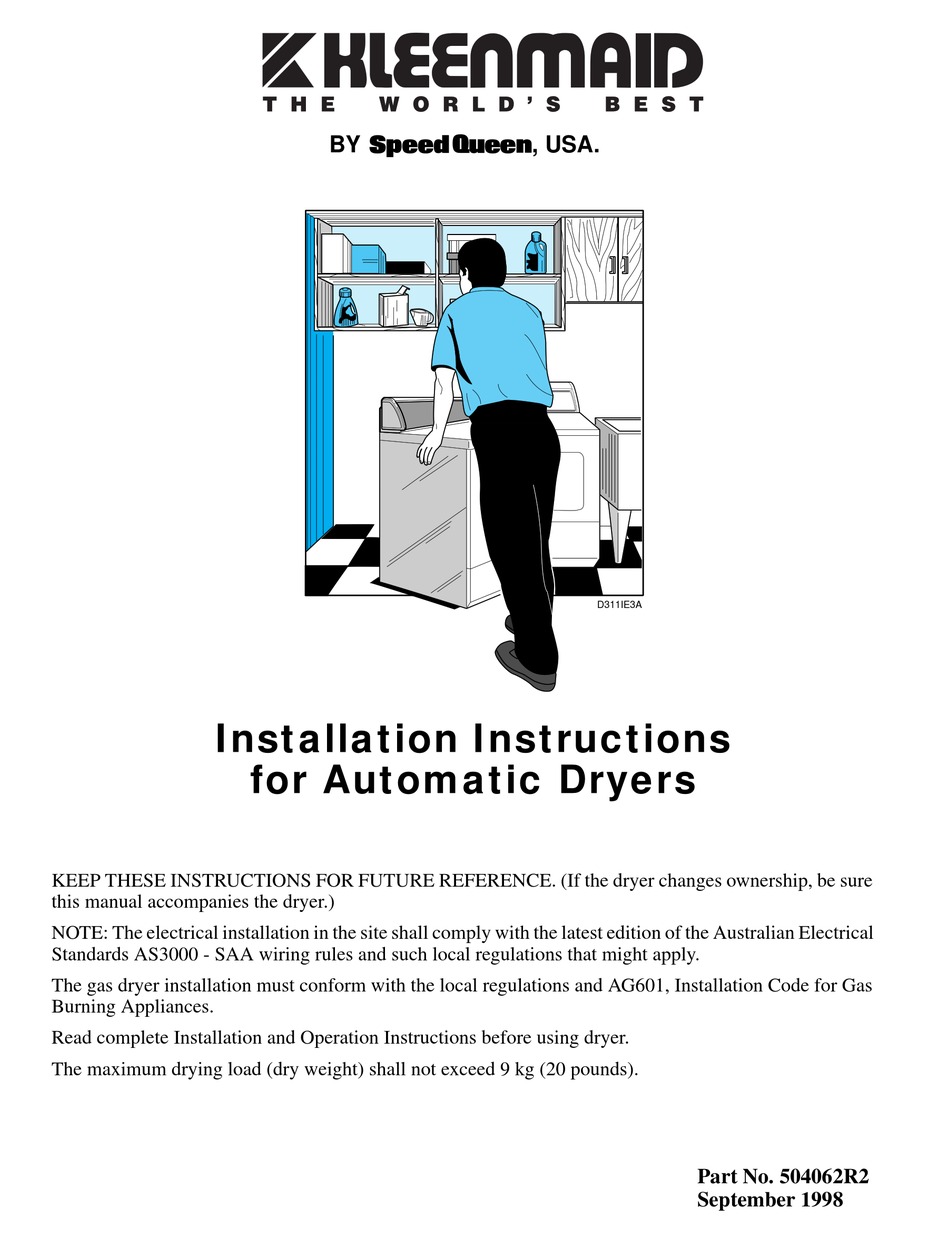

Installation Instructions
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. (If the dryer changes ownership, be sure
this manual accompanies the dryer.)
NOTE: The electrical installation in the site shall comply with the latest edition of the Australian Electrical
Standards AS3000 - SAA wiring rules and such local regulations that might apply.
The gas dryer installation must conform with the local regulations and AG601, Installation Code for Gas
Burning Appliances.
Read complete Installation and Operation Instructions before using dryer.
The maximum drying load (dry weight) shall not exceed 9 kg (20 pounds).
BY
yuiop
for Automatic Dryers
, USA.
D311IE3A
Part No. 504062R2
September 1998
Advertisement
Table of Contents
Related Manuals for Kleenmaid Automatic dryers
Summary of Contents for Kleenmaid Automatic dryers
- Page 1 D311IE3A Installation Instructions for Automatic Dryers KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. (If the dryer changes ownership, be sure this manual accompanies the dryer.) NOTE: The electrical installation in the site shall comply with the latest edition of the Australian Electrical Standards AS3000 - SAA wiring rules and such local regulations that might apply.
-
Page 3: Table Of Contents
Table of Replacement Parts ..................2 Roughing In Dimensions ................3 Before You Start Contents Tools ..................... 4 Exhaust ....................4 Electrical....................4 Gas......................4 Location....................4 Installing the Dryer STEP 1 (Position and Level the Dryer) ..........5 STEP 2 (Connect Dryer Exhaust System)..........5 STEP 3 (Connect Gas Supply Pipe) ............ -
Page 4: Replacement Parts
Replacement Parts . . . If replacement parts are required, contact the source where you purchased your dryer. 504062... -
Page 5: Roughing In Dimensions
Roughing In Dimensions . . . 7.7" (19.6 cm) 15.4" (39.1 cm) 4.0" 4.0" (10.2 cm) (10.2 cm) .4" (1.1 cm) 28" 26.9" 23.5" (71.1 cm) (68.3 cm) (59.7 cm) D312IE3D * WITH LEVELING LEGS TURNED INTO BASE ELECTRIC DRYERS 7.7"... -
Page 6: Before You Start
Before You Start . . . Tools Electrical For most installations, the basic tools you will need are: • ELECTRIC DRYER Dryer needs a 2 wire plus earth, 250 Volt, 50 Hertz, single phase electrical supply. • GAS DRYER Dryer needs a 2 wire plus earth,250 Volt, 50 Hertz, single phase electrical supply. -
Page 7: Installing The Dryer
Installing the Dryer . . . Step 1: LEVEL Position and Level DRYER BASE the Dryer For further assistance refer to Section on Location Requirements. Install dryer before washer. This allows room for attaching exhaust duct. Place the dryer in position, and adjust the legs until the dryer is level. -
Page 8: Step 3 (Connect Gas Supply Pipe)
Step 3: (Gas Dryer ONLY) Connect Gas Supply Pipe For further assistance, refer to Section on Gas Requirements. 1. Make certain your dryer is equipped for use with 3. Connect to gas supply pipe. the type of gas in your laundry room. Dryer is 4. -
Page 9: Step 4 (Wipe Out Inside Of Dryer)
Step 4: Wipe Out Inside Of Dryer Before using dryer for the first time, use an all-purpose cleaner, or a detergent and water solution, and a damp cloth to remove shipping dust from inside dryer drum. D327IE2A Step 5: Plug in the Dryer Refer to Section on Electrical Requirements, and connect the dryer to an electrical power source. -
Page 10: Heat Check
Heat Check . . . (Electric Dryers) Close the loading door and start the dryer in a heat minutes, the exhaust air or exhaust pipe should be setting (refer to the Operating Instructions supplied warm. with the dryer). After the dryer has operated for three Burner Flame . -
Page 11: Reversing Door Procedure
Reversing Door Procedure . . . The door on this dryer is completely reversible. To reverse door proceed as follows: Remove four Remove all nine screws. hinge attaching screws. D271PE1B D272PE1A Pull bottom of Rotate door panel 180 degrees door liner out, then pull down, as shown. -
Page 12: Manufactured (Mobile) Home Installation
Manufactured (Mobile) Home Installation . . . IMPORTANT: Installation must conform to the Manufactured Home Construction and Safety Standards, Title 24 CFR, Part 32-80 or Standard CAN/CSA-Z240 MH. The dryer can be installed in a manufactured (mobile) • Exhaust duct must not be connected to any other home by following these instructions: duct, vent or chimney. -
Page 13: Electrical Requirements (Electric Dryers)
Electrical Requirements . . . (Electric Dryers) NOTE: The wiring diagram is located inside the control hood. IMPORTANT: The electrical installation in the site shall comply with the latest edition of Australian EARTH SCREW Electrical Standards, AS3000, SAA wiring rules, and such local regulations that might apply. -
Page 14: Electrical Requirements (Gas Dryers)
Electrical Requirements . . . (Gas Dryers) Earthing Instructions NOTE: The wiring diagram is located inside the control hood. The dryer must be earthed. In the event of malfunction IMPORTANT: The electrical installation in the site or breakdown, earthing will reduce the risk of electric shall comply with the latest edition of Australian shock by providing a path of least resistance for electric Electrical Standards, AS3000, SAA wiring rules,... -
Page 15: Gas Service
Gas Service . . . (Gas Dryers) NOTE: The gas service to a gas dryer must conform WARNING with the local codes and ordinances and AG601, Installation Code for Gas Burning Appliances. In the absence of local codes and ordinances, To reduce the risk of gas leaks, fire or applicable National codes should be followed. - Page 16 NOTE: When connecting gas supply line, a pressure The dryer must be isolated from the gas supply piping test point must be installed downstream from the system by closing the equipment shutoff valve during shutoff valve for checking inlet gas pressure. any pressure testing of the gas supply piping system at test pressure equal to or less than 1/2 psig (3.45 kPa).
-
Page 17: Location Requirements
Location Requirements . . . Select a location with a solid floor. with a 1/4" driver. All four legs must rest firmly on the floor so the weight of the dryer is evenly distributed. No other fuel burning appliance should be installed in The dryer must not rock. -
Page 18: Dryer Exhaust Requirements
Dryer Exhaust Requirements . . . Exhaust System Materials WARNING Exhaust duct must be four inches (10.2 cm) in diameter having no obstructions. Rigid metal duct is A clothes dryer produces combustible lint. recommended. Non-combustible semi-rigid flexible To reduce the risk of fire and combustion metal duct is acceptable. -
Page 19: Exhaust System
Exhaust System Exhausting the dryer through sides or bottom can be accomplished by installing a DK1 Sales Accessory IMPORTANT: Keep exhaust duct as short as (Directional Exhaust Kit 528P3) available as optional possible. equipment at extra cost. NOTE: Be certain old ducts are cleaned before IMPORTANT: Do not block the airflow at the installing your new dryer. -
Page 20: Exhaust System Maintenance
Exhaust System Maintenance Dryer Airflow The dryer interior and the complete exhaust system Efficient dryer operation requires proper dryer airflow. should be inspected after one year of use and cleaned if Proper dryer airflow can be evaluated by measuring the necessary. -
Page 21: User-Maintenance Instructions
User-Maintenance Instructions . . . Lubrication CAUTION All moving parts are sealed in a permanent supply of lubricant or are equipped with oilless bearings. Label all wires prior to disconnection when Additional lubrication will not be necessary. servicing controls. Wiring errors can cause improper and dangerous operation. -
Page 22: Wiring Diagram (Electric Dryers)
Wiring Diagram (Electric Dryer) 504062... -
Page 23: Wiring Diagram (Gas Dryers)
Wiring Diagram (Gas Dryer) 504062... -
Page 24: Information For Handy Reference
Information for Handy Reference . . . Kleenmaid P.O. Box 5560 Maroochydore South, QLD 4558 Date Purchased Model Number Serial Number Store Name Store Address Phone Number Service Agency Service Agency Address Phone Number NOTE: Record the above information and keep your sales slip. Model and serial numbers are located on the nameplate. -
Page 28: Installer Check
Installer Check . . . Fast Track for Installing the Dryer (Refer to the manual for more detailed information) • Position and Level • Wipe Out the Dryer. Inside of Dryer. LEVEL CHECK CHECK • Connect Dryer Exhaust System. • Plug In 250 V Dryer.
