Overview

The Matrix Distributed Audio DAS-LLC Line Level Converter with Speaker Wire
Technology (FG1110-05) allows you to use an external power amplifier to power
the speakers in a zone, using Speaker Wire Technology™ (SWT) to the keypad
for control (FIG. 1).

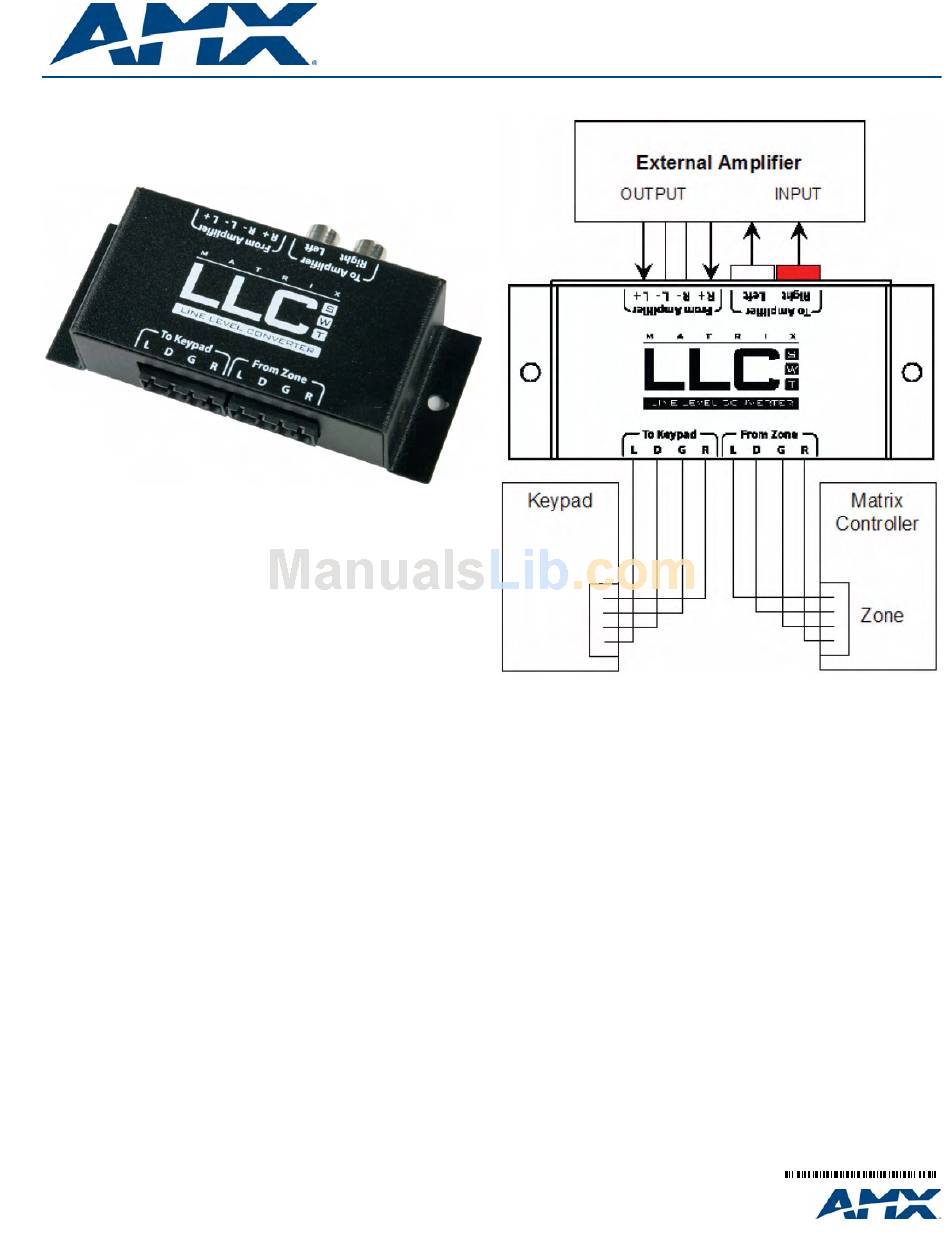

FIG. 1
DAS-LLC Line Level Converter

Installation Instructions

1.
Connect a small run of 16/4 between the zone output on the Matrix
Audio controller and the connector labelled "From Zone" on the
DAS-LLC.
2.
Connect the 16/4 wire run from the zone's keypad to the connector
labelled "To Keypad" on the DAS-LLC.
3.
Connect a stereo RCA cable from the Left and Right RCA jacks
labelled "To Amplifier" on the DAS-LLC to the RCA inputs on the
external amplifier.
4.
Connect a small run of 16/4 between the output of the external ampli-
fier and the connector labelled "From Amplifier" on the DAS-LLC.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com
For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
©2008 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
AMX reserves the right to alter specifications without notice at any time.
DAS-LLC

Wiring Diagram

FIG. 2
DAS-LLC Installation Diagram
5/08
Installation Guide
Line Level Converter
93-1110-01
REV: B
