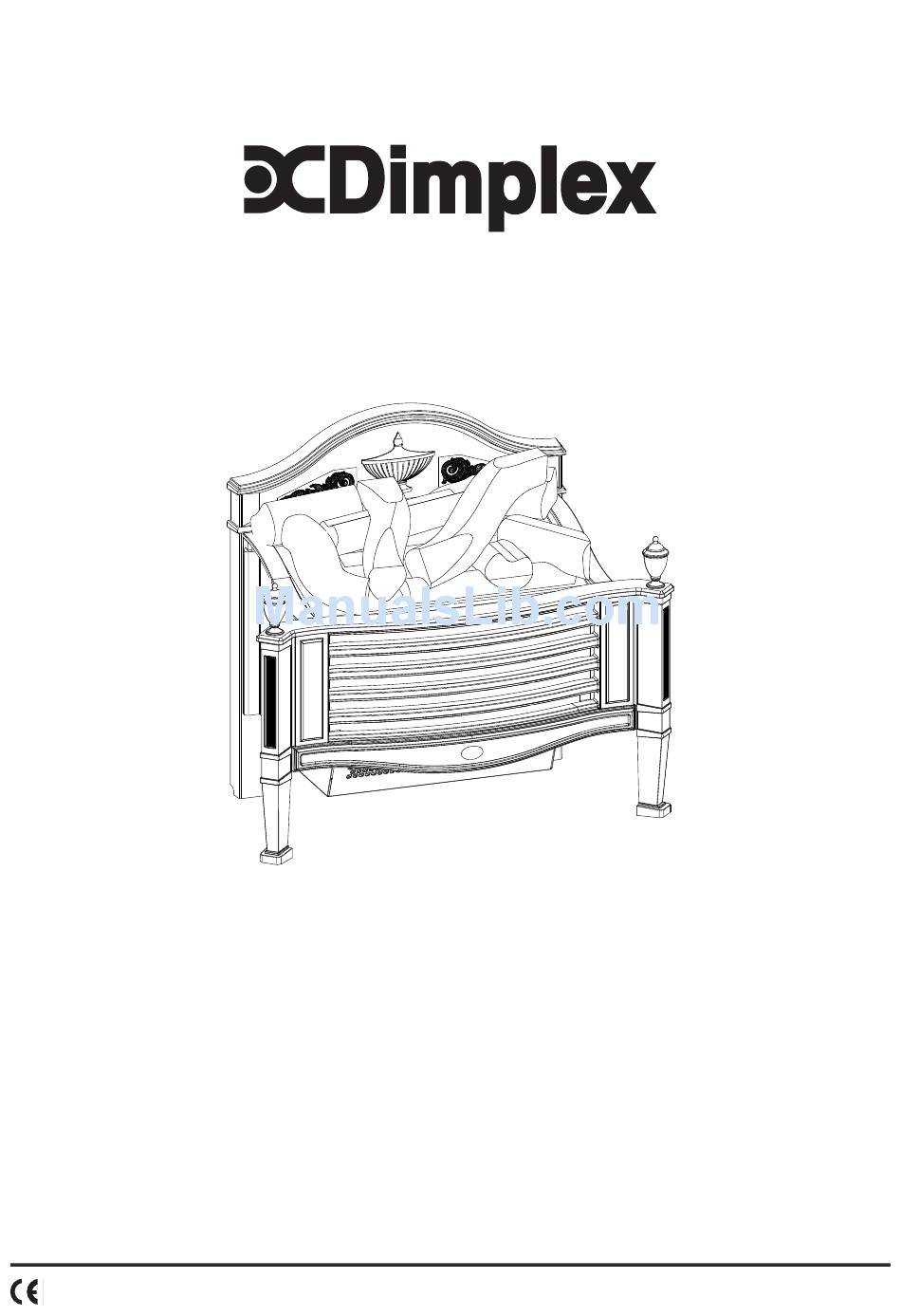

- Page 1 ROTHESAY RSY20 08/35691/0 Issue 3 The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC...
- Page 2 Fig. 1 Fig. 2 Fig. 3 Fig. 4a Fig. 4...
- Page 3 Fig. 5 Fig. 5a Fig. 5b Fig. 6 Fig. 7 Fig. 8...
- Page 4 Fig. 9 Fig. 10 Fig. 11 Fig. 13 Fig. 14...
- Page 5 Fig. 15 Fig. 16...
- Page 6 Dimplex OPTIMYST Basket Introduction Thank you for choosing this Dimplex electric fi re. Please read this information guide carefully to be able to safely install, use and maintain your product. Important Safety Advice When using electrical appliances, basic precautions should always be followed to reduce the risk of fi re, electrical...
-
Page 7: Before You Start
The water tank, sump, sump lid, tank cap and air fi lters must be cleaned once every two weeks, particularly in hard water areas. The appliance should never be operated if the lamps are not working. The lamps should be regularly inspected as described under ‘Maintenance’ and ‘Changing lamps’. The sump and the water tank in this product are treated with a biocidal product, Silver Biocide. - Page 8 Switch ‘B’:- Press once to turn on the fl ame effect. This will be indicated by an audible beep. Although the main lights operate immediately it will take a further 30 seconds before the fl ame effect starts. Press again to give fl ame effect and half heat. This will be indicated by two beeps. Press again to give fl...
-
Page 9: Changing Lamps
6. Remove the defective lamp, by gently lifting vertically and disengaging the pins from the lamp holder, (See Fig.4 and 4a). Replace with a Dimplex OPTIMYST, 12V, 45W, Gu5.3 base, 8º beam angle, coloured lamp. (Purchased from our website http://spares.dimplex.co.uk) 7. -
Page 10: Additional Information
Should you require after sales information or assistance with this product please go to www.dimplex.co.uk and select “Customer Support” or ring our help desk on 0844 879 3588 (UK) or 01 842 4833 (R. O. I.). Spare parts are also available on the web site. -
Page 11: Troubleshooting
Troubleshooting Symptom Cause Corrective Action The fl ame effect will Mains plug is not plugged in. Check plug is connected to wall socket not start. correctly. Low water level. Check that the water tank is full and there is water in the sump. Low voltage connector not connected properly. - Page 12 Republic of Ireland Tel. 01 8424833 SO30 2DF GDC Group Ltd, All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Dimplex. A division of GDC Group Ltd.
