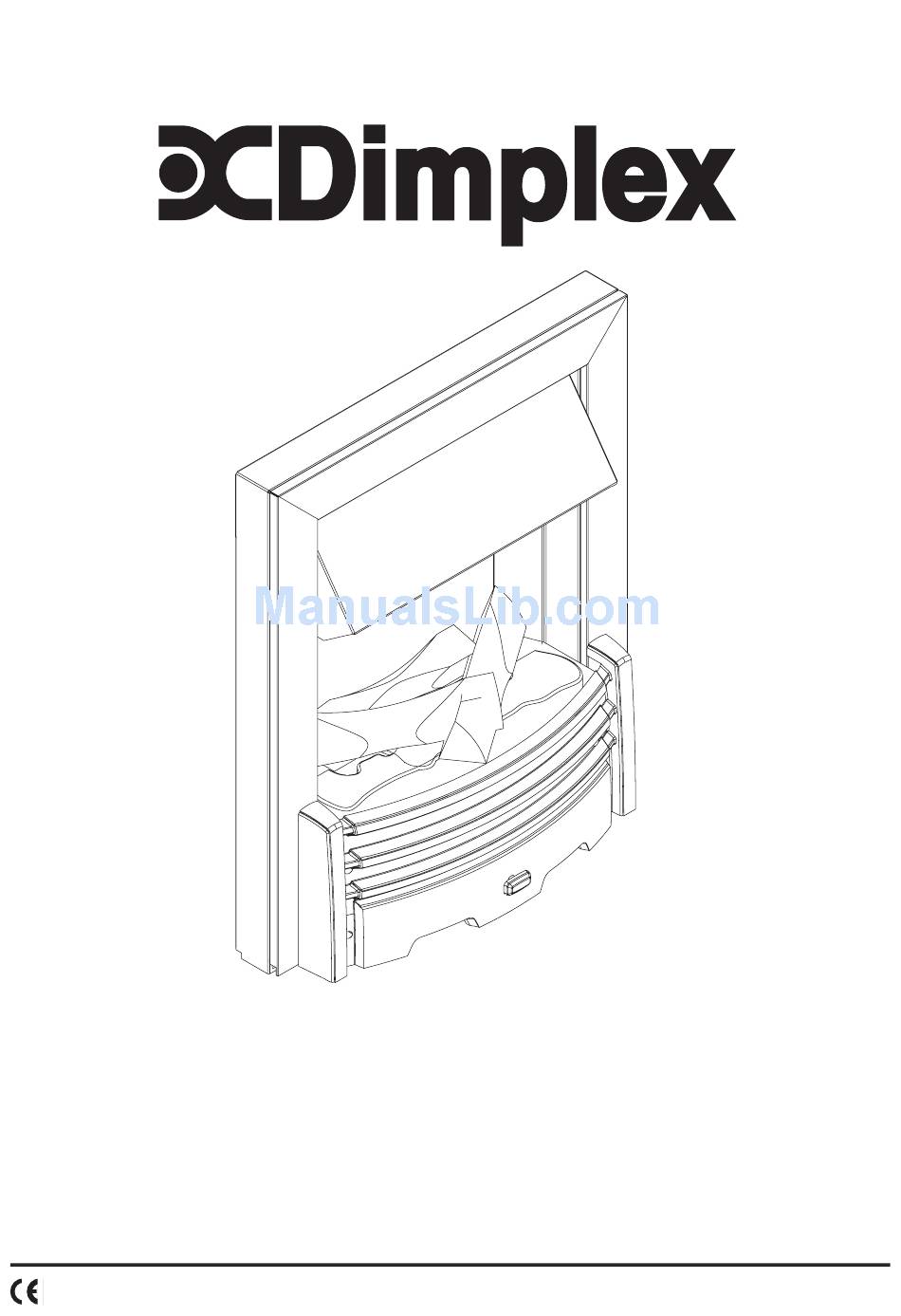

OPTIMYST INSET
RTOPI20BR & RTOPI20CH
08/51576/0
Issue 2
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC)
EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC
Advertisement
Related Manuals for Dimplex OPTIMYST RTOPI20BR
Summary of Contents for Dimplex OPTIMYST RTOPI20BR
- Page 1 OPTIMYST INSET RTOPI20BR & RTOPI20CH 08/51576/0 Issue 2 The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC...
- Page 2 Fig.1 Fig.2 Fig.3 Fig.4a Fig.4...
- Page 3 Fig.6 Fig.5 Fig.6a Fig.7 Fig.8 Fig.9...
- Page 4 Fig.10 Fig.11 Fig.12...

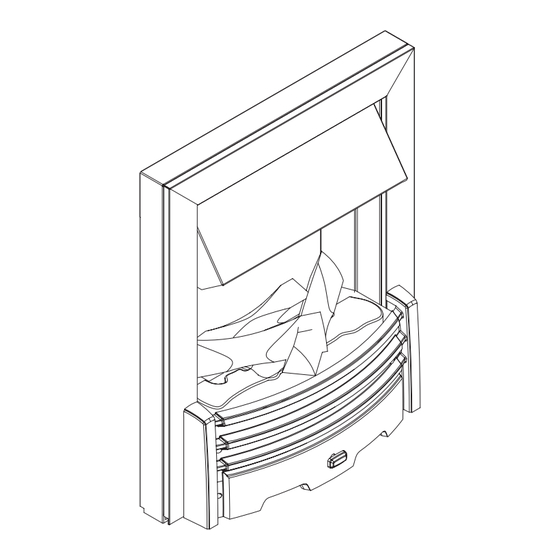

- Page 5 Dimplex OPTIMYST Inset Fires Model: RTOPI20BR, RTOPI20CH IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE Important Safety Advice: When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following: If the appliance is damaged, check with the supplier before installation and operation.
-
Page 6: Installation Instructions
Installation Instructions Before installing this appliance in an existing chimnney, we recommend that; 1. You have your chimney cleaned by a competent chimney sweep. 2. You block off the chimney flue. This procedure is important for the efficient operation of the heating unit and will also reduce heat loss up the chimney. Installation. -
Page 7: Maintenance
6. Remove the defective lamp, by gently lifting vertically and disengaging the pins from the lamp holder, (See Fig.4 and 4a). Replace with a Dimplex OPTIMYST, 12V, 50W, Gu5.3 base, 8º beam angle, coloured lamp. (Purchased from www.dimplex.co.uk under the section ‘After Sales Service’ , details of how to purchase the lamps are contained therein.) 7. - Page 8 Extended Parts and Labour Warranty Your 1 year warranty is extended for an additional 12 months when you register the product with Dimplex, within 28 days of purchase. If you do not register the product with Dimplex within 28 days, your product will remain guaranteed for 1 year only.
- Page 9 Your rights under this guarantee are additional to your statutory rights, which in turn are not affected by this guarantee. To validate your extended warranty register with us online at http://register.dimplex.co.uk Or call our customer registration line 0844 879 3588 (UK) or 01 842 4833 (R. O. I.) N.B.
-
Page 10: Troubleshooting
Troubleshooting Symptom Cause Corrective Action The flame effect will Mains plug is not plugged in. Check plug is connected to wall socket correctly. not start. Low water level. Check that the water tank is full and there is water in the sump. Low voltage connector not connected properly. - Page 11 OPTIMYST is a trade mark of GDC Group Ltd. DIMPLEX TEL: 0844 879 3588 MILLBROOK HOUSE FAX: 0844 879 3583 GRANGE DRIVE WEBSITE: www.dimplex.co.uk HEDGE END SOUTHAMPTON Republic of Ireland Tel. 01 8424833 SO30 2DF [c] GDC Group Ltd, All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Dimplex.
