Summary of Contents for Fagor Multifunction Combi Oven

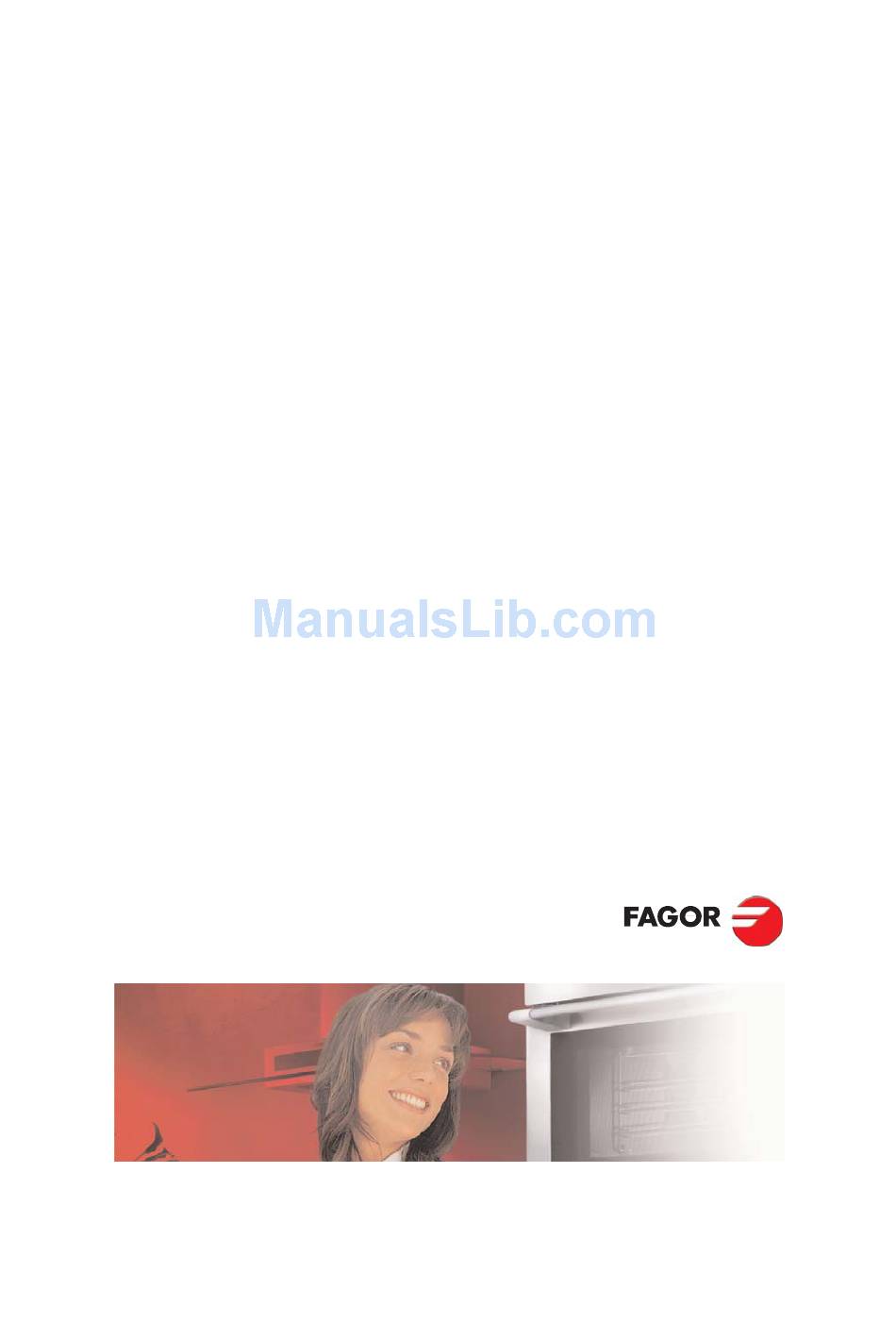

- Page 1 INSTRUCTIONS FOR INSTALLATION AND USE Multifunction Combi Oven INSTALLATIE- EN GEBRUIKSGIDS Multifunctionele combioven EINBAU- UND BETRIEBSANLEITUNG Multifunktionsbackofen...
- Page 2 Warning: Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1/NOTICES TO THE USER • Safety instructions ..........•... -
Page 4: Safety Instructions
1/NOTICES TO THE USER The contents of bottles or jars for babies Warning: must be stirred or shaken and the tempera- Keep this user guide with your appli- ture must be checked before use, in order to ance. If the appliance is ever sold or trans- avoid burns. -
Page 5: Operating Principle
1/NOTICES TO THE USER •OPERATING PRINCIPLE •ENVIRONMENTAL PROTECTION The microwaves used for cooking are electro- This appliance's packaging material is recy- magnetic waves. They are found naturally in clable. Help recycle it and protect the environ- our environment as radio-electric waves, light ment by dropping it off in the municipal recep- or infra-red radiation. -
Page 6: Before Connecting
2/INSTALLING YOUR APPLIANCE •BEFORE CONNECTING If the connection is made with a plug, it must remain accessible after the appliance has been installed. Warning: Check that your appliance has not The oven's neutral (blue cable) must be con- been damaged during transport (damage to nected to the network's neutral. -
Page 7: Build-In
Do not use your appliance immediately (wait 1 or 2 hours) after moving it from a cold to a warm place as condensation may cause a malfunction. 50(Regleta) Regleta Oven Horno Building-in Hueco para Microondas Fagor de 17 litros FAGOR 17l microwave 458 450 Fig.02... -
Page 8: The Appliance
3/DESCRIPTION OF YOUR APPLIANCE •THE APPLIANCE Fig.03 Control panel Cavity Turntable Door handle... -
Page 9: Accessories
3/DESCRIPTION OF YOUR APPLIANCE •ACCESSORIES • The turntable: means food is cooked uniformly with no need for handling. It revolves in both directions. If it does not revolve, check that all elements are correctly positioned. Do not attempt to turn it manually, as you may damage the drive system. - Page 10 3/DESCRIPTION OF YOUR APPLIANCE • The side grills (Fig.08): 2 shelves with hooks allow you to use the accessories on 3 levels. The 3 insertion levels are available according to the type of cooking and type of food (Fig.09) . In the Grill or Grill + Microwave functions you use the accessories (grill or drip tray) inserted level 1 for thick foods such as roasts, and...
-
Page 11: The Control Panel
3/DESCRIPTION OF YOUR APPLIANCE •THE CONTROL PANEL Fig.11 The display helps with programming by displaying the following: clock or programme time, microwave power level (W) or weight programmed (g), turntable stop function, grill level (GP) and the temperature. The function/food type selector (turns clockwise and counterclockwise) to choose the programme function and food type. -
Page 12: The Display / The Function/Food Type Selector
3/DESCRIPTION OF YOUR APPLIANCE •THE DISPLAY The displays guide you in choosing the food type, the functions, the power, the weight and the programming time. CLOCKTIME / PROGRAMME TIME MICROWAVE POWER LEVEL FOOD WEIGHT TURNTABLE FAN COOK TEMPERATURE Fig.12 •THE FUNCTION/FOOD TYPE SELECTOR L’afficheur vous guide pour choisir les fonctions et les aliments pour une programmation automatique. -
Page 13: 4/Using Your Appliance
4/USING YOUR APPLIANCE •HOW TO SET AND CHANGE THE TIME After connecting your appliance or after a prolonged power failure, the clock displays 1 1 2 2 : : 0 0 0 0 , the display is blinking. To set the clock Display Press the + / - keys to set the time, ex. -
Page 14: Programming
4/USING YOUR APPLIANCE •PROGRAMMING Your appliance is now connected and displaying the correct time. Open the door using the handle. Place the food in the appliance and close the door. If the door is not closed the appliance will not function properly. If the door is opened during operation, the programming is not cancelled but simply interrupted. -
Page 15: Microwave Function
4/USING YOUR APPLIANCE •MICROWAVE FUNCTION Programming by power Display Turn the function selector to the MICROWAVE position; 1000W blinks in the display. Press the + / - keys to select the microwave power of your choice, ex. 800W. 8 0 0 Confirm by pressing the start key Press the + / - keys to adjust the required cooking time, ex. -
Page 16: Automatic Cooking Functions
4/USING YOUR APPLIANCE •AUTOMATIC COOKING FUNCTIONS With the automatic cooking function, the time and function are calculated automatically according to the type of food and its weight. Programming the automatic cooking time Display according to weight. Turn the function/food type selector to choose the type of food, ex. -
Page 17: Guide To Automatic Functions
4/USING YOUR APPLIANCE •GUIDE TO AUTOMATIC FUNCTIONS This function is used for cooking and browning a whole chicken or chicken pieces (thighs) weighing between 500 g and 2,000 g. Chicken is cooked using the combined microwave + fan cooking function and/or grill. -
Page 18: Defrosting
4/USING YOUR APPLIANCE •DEFROSTING Defrosting frozen foods in your microwave oven saves you considerable time. To defrost food, use the automatic defrost function or the MICROWAVE function power level 200W. What you need to know: Small pieces of meat or fish may be cooked immediately after defrosting. It is to be expected that large pieces such as meat roasts or whole fish will still be slightly frozen. -
Page 19: The Automatic Defrost Function
4/USING YOUR APPLIANCE •THE AUTOMATIC DEFROST FUNCTION The automatic defrost function lets you quickly defrost foods weighing up to 500 g. (The weight is limited in order to ensure best results.) Four defrost levels are available, according to the type of food: : Defrosting (200W microwave power level) - If you wish to programme the defrost time yourself - For use with foods that do not appear in categories D2 / D3 / D4... -
Page 20: Defrosting Guide
4/USING YOUR APPLIANCE •DEFROSTING GUIDE (See recommendations on preceding page ) Defrosting pastry Food Quantity Time Recommendations Place on kitchen paper, turn Flaky / shortcrust pastry 400 g 1 - 3 min halfway through defrosting Defrosting shellfish Food Quantity Time Recommendations Scallops 500 g... -
Page 21: Grill Function
4/USING YOUR APPLIANCE •GRILL FUNCTIONS This function is used for cooking and browning foods such as gratin dishes and meats. It may be used before or after cooking, according to the recipe. Warning: Accessible areas may become hot when the grill is used. Children should be kept away. If the appliance is operating in combined mode, we recommend that children be supervised by adults when using the oven due to the high temperatures. -
Page 22: Grill Cooking Guide
4/USING YOUR APPLIANCE •THE GRILL + MICROWAVE FUNCTION This function lets you use the grill + microwave at the same time, which allows rapid cooking. You may combine the three grill levels (High/Medium/Low) with the 7 following power levels: 100 W/200 W/300 W/400 W/500 W/ 600 W/700 W Programming a grill + microwave function Display Select the microwave + grill position... -
Page 23: The Fan Cooking Function
4/USING YOUR APPLIANCE •THE FAN COOKING FUNCTION The fan cooking function lets you cook and brown food as in a traditional oven. Recommendations: The cooking temperature may be adjusted from 50°C to 250°C. Cooking time may be set from 0 to 90 minutes. It is preferable to programme the minimum time and add more time if necessary;... -
Page 24: Fan Cooking Guide
4/USING YOUR APPLIANCE •FAN COOKING GUIDE Preheat the oven to the temperature indicated. Food Temperature Insertion level Time Meat Pork roast (1 Kg) 150°C On the grill inserted level 2 90 min Veal roast (1 Kg) 170°C On the grill inserted level 2 70 - 75 min Beef roast (1 Kg) 220°C... -
Page 25: The Fan + Microwave Function
4/USING YOUR APPLIANCE •THE FAN + MICROWAVE FUNCTION The fan cooking + microwave function lets you combine the microwave with fan cooking, saving you considerable time. The following microwave power levels are available: 100-200-300-400- 500W. Recommendations: When cooking using the fan cooking + microwave function, do not use a metal container. Cooking on 2 levels: To cook an 800 g veal roast and potato gratin with 800 g of potatoes at the same time, 55 min at 170°C, microwave power level 300 W. -
Page 26: Fan + Microwave Cooking Guide
4/USING YOUR APPLIANCE •FAN + MICROWAVE COOKING GUIDE Use a microwave-safe and heatproof dish, preferably made of earthenware (less splashing than with glass). Cook preferably non-barded roasts to avoid grease splashes and smoke. Season when cooked, let the meat sit in aluminium foil for 10 minutes. This helps the meat fibres to relax and the roast will be more tender. -
Page 27: 5/Caring For And Cleaning Your Appliance
5/CARING FOR AND CLEANING YOUR APPLIANCE We recommend that you clean the oven regu- The turntable may be removed for easier larly and remove any food deposits inside and cleaning. To remove it, grasp it by the access outside the appliance. Use a damp, soapy areas provided for this purpose. -
Page 28: 6/In The Event Of Operating Anomalies
6/IN THE EVENT OF OPERATING ANOMALIES If you have a query concerning the operation of your appliance, this does not necessarily mean that there is a breakdown. In all events, check the following points: You notice that What should I do ? The time is counting down but the appliance is Your appliance is in DEMONSTRATION mode. -
Page 29: 7/Operating Proficiency Testing
7/OPERATING PROFICIENCY TESTING Operating proficiency testing according to CEI/EN/NF EN 60705 standards; The International Electrotechnical Commission, SC.59K, has established a standard relative to comparative performance tests conducted on various microwaves. We recommend the following for this appliance: Approx Power Containers / Test Load time...
