Control Board Connector Locator

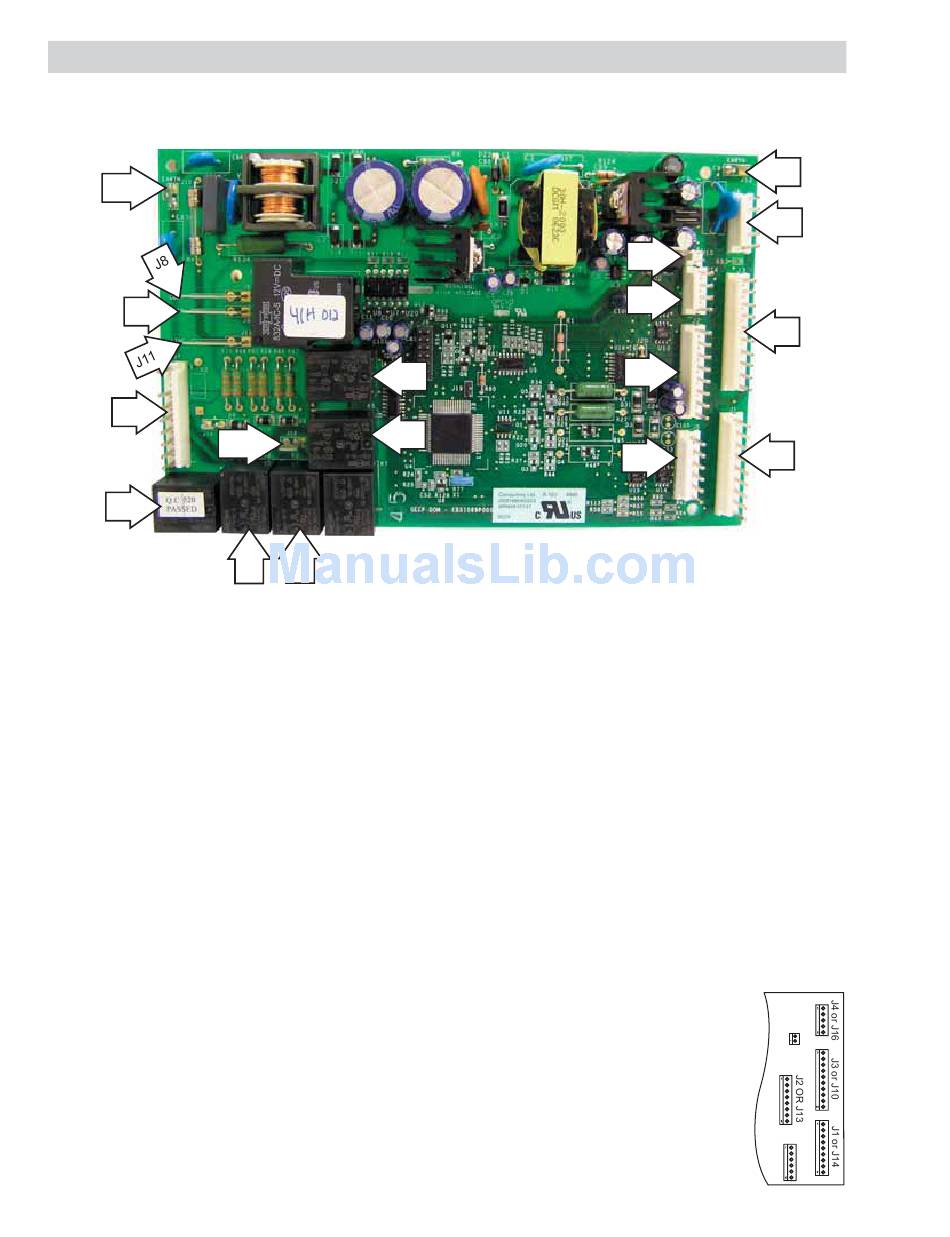

Main Control Board
J10
J9
J7
J12
K1
J10 and J13 - Earth (Ground)
J8 - Line (L1) to AC Compressor*
J9 - Defrost Heater
J11 - Line (L1)
J7 - Neutral, Door Switches, CustomCool™ Heater,
Water Valve, Cube Solenoid, Auger Motor
J12 - Duct Heater
K1 - Auger
K2 - Crusher
K3 - Water
K4 - Defrost
K5 - CustomCool™
* Single-speed compressors only
** 3-speed compressors only
K4
K5
K3
K2
– 52 –
J4 - LCD Board
J3 - QuickFreeze™ Fan, Beverage Center Fan, 3-way
Valve
J1 - Fresh Food Thermistor, Freezer Thermistor, Fresh
Food Evaporator Thermistor, Freezer
Evaporator Thermistor, Model Selector
J14 - Flow Meter
J15 - Inverter**
J2 - Fan Common, Evaporator Fan, Condenser Fan,
Fresh Food Fan, CustomCool™ Fan, Model Selector
J5 - CustomCool™ Damper(s), CustomCool™ Thermistor
Some of the low-voltage DC
connector labeling on this model
may differ from other models.
The function and diagnostics for
these connectors are identical for
all models.
J13
J4
J15
J14
J3
J2
J1
J5
(Continued next page)
